-2.000 to 20.000 pH range
0.1, 0.01, & 0.001 pH resolutions
USA, NIST, NIST2, DIN, and Custom pH buffer groups

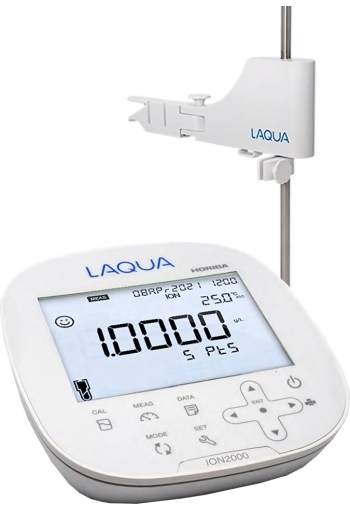

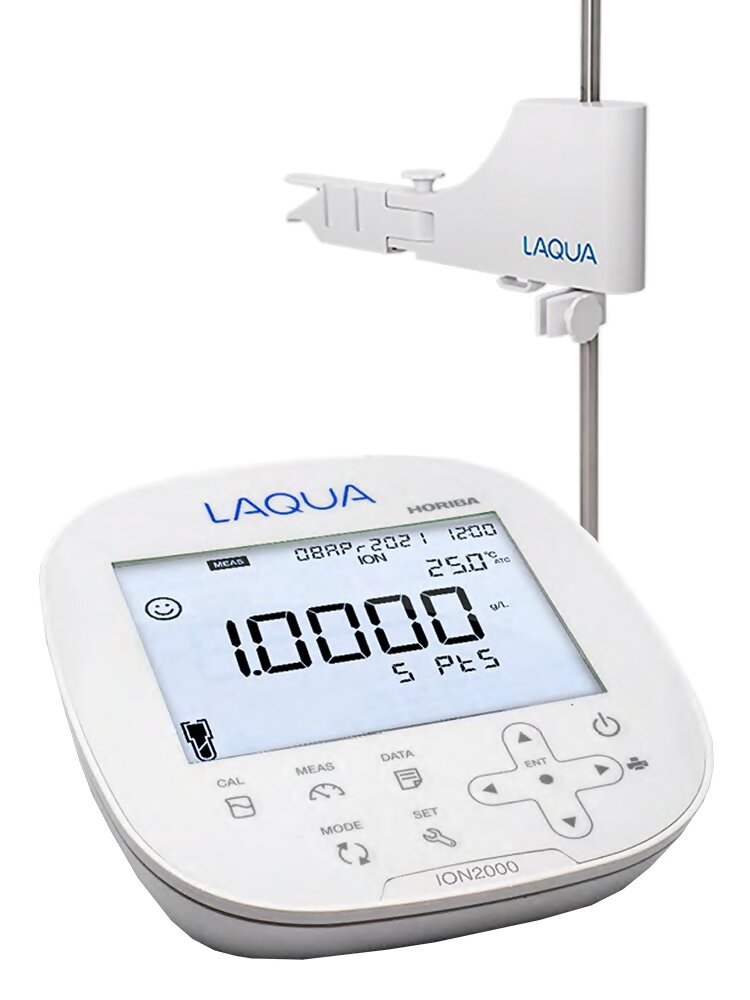

Benchtop pH/ORP/Ion/Temperature Meter
Compact and Powerful
The Horiba 3200896963 Laqua ION2000 Benchtop pH/ORP/Ion/Temperature Meter is a analysis is repeatedly performed in laboratories on a daily basis. Our compact and powerful benchtop model was developed to provide simplicity with excellent on-site usability.

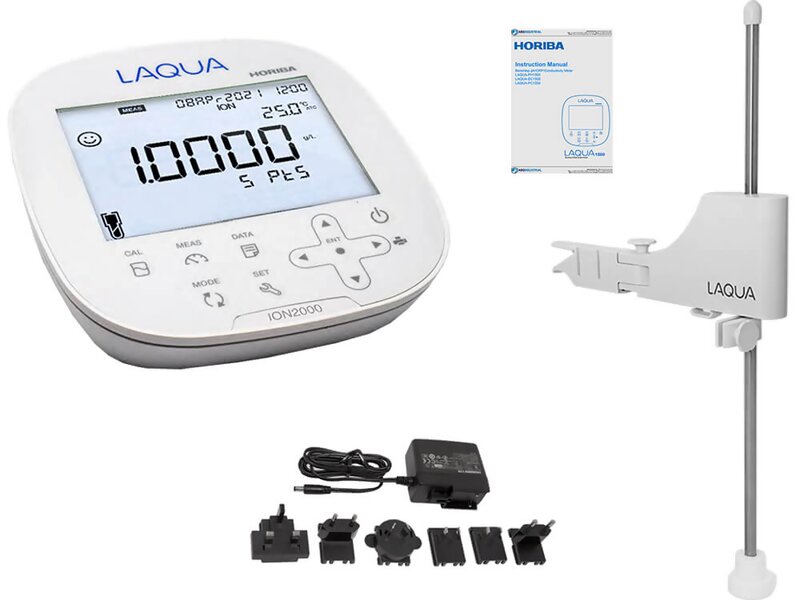

Kit Contents
- Horiba 3200896963 Laqua ION2000 Benchtop pH/ORP/Ion/Temperature Meter
- Electrode Stand
- Universal power adaptor with 6 plugs (US, EU, UK, ANZ, Korea, China)
- Instruction Manual
Features
- -2.000 to 20.000 pH range
- 0.1, 0.01, & 0.001 pH resolutions
- USA, NIST, NIST2, DIN, and Custom pH buffer groups
- Up to 6 pH calibration points
- Offset, segment and average slopes data after pH calibration
- Adjustable calibration alarm up to 90 days
- -2000.0 to +2000.0 mV range with ORP calibration option
- 0.000 μg/L to 9999 g/L ion range with 3 selectable units
- Up to 5 user-defined ion calibration points
- Segment and average slopes data after ion calibration
- -30.0 to 130.0°C / -22.0 to 266.0°F temperature range with calibration option
- Auto stable, auto hold, and real time measurement modes
- Electrode status, temperature, and reading stability indicators viewable at a glance
- Large memory accepting up to 2000 data sets with date/time stamp
- Auto data log function with adjustable time interval
- Real time clock facilitating time-dependent functions
- Adjustable auto shut-off time up to 30 mins.
- Password protected set-up mode for security
- Software upgrade capability
- PC communication via USB cable and complimentary data acquisition software
- Printer communication via RS232 cable
- 5” Digital, custom LCD display with backlight
- Sleek design with easy-to-use interface and audible key sound feedback
- Small meter footprint with adjustable, integrated electrode stand
- 3 Years warranty
Specifications
| pH Range | -2.000 to 20.000 pH |
| Resolution | 0.1 / 0.01 / 0.001 pH |
| Accuracy | ± 0.003 pH |
| pH Buffer Groups | USA, NIST, NIST2, DIN, Custom |
| Calibration Points | Up to 5 (USA, NIST, NIST2,Custom) / Up to 6 (DIN,) |
| ORP Range | ± 2000.0 mV |
| Resolution | 0.1 mV |
| Accuracy | ± 0.2 mV |
| Calibration Option | Yes (Up to ± 200 mV) |
| Ion Range | 0.000 µg/L to 9999 g/L |
| Units | µg/L ↔ mg/L ↔ g/L, ppm ↔ ppt, mmol/L ↔ mol/L |
| Resolution | 4 Significant digits |
| Accuracy | ± 0.3% full scale or ± 0.2 mV, whichever is higher |
| Calibration Points | Up to 5 |
| Temperature Range | -30.0 to 130.0 °C / -22.0 to 266.0 °F |
| Resolution | 0.1 °C / °F |
| Accuracy | ± 0.5 °C / ± 0.9 °F |
| Calibration Option | Yes (± 10.0 °C / ± 18.0 °F range in 0.1 °C increments) |
| Memory | 2000 |
| Auto Data Log | Yes |
| Real-time Clock | Yes |
| Date & Time Stamp | Yes |
| Measurement Modes | Auto Stable / Auto Hold / Real Time |
| Offset & Slope Display | Yes (Segment & Average Slopes) |
| Calibration Alarm | Yes (Programmable: up to 90 days) |
| Auto Shut-Off | Yes (programmable: up to 30 mins.) |
| Electrode Status | On screen display |
| Diagnostics | Yes |
| Password Setting | Yes |
| Software Upgrade | Yes |
| PC / Printer Communication | Phono jack (USB / RS232C) |
| Meter Inputs | BNC, phono (ATC), DC sockets |
| Display | 5" Custom LCD with backlight and 320 segments |
| Power Requirement | AC adaptor 100 - 240V, 50 - 60Hz |
| Dimensions & Weight | 155(L) x 150(W) x 67(H) mm, 765g |
