This product has been replaced by the LAQUA PC1100
The F-74BW has been replaced by the Horiba LAQUA PC1100 Benchtop Water Quality pH Meter 3200647410
Dual channel meter with 2 ports to measure pH or ORP or ions on channel one and conductivity or resistivity or salinity or TDS on channel two. Black/white LCD screen. Package includes meter, electrode stand, power converter, USA and UK power plugs.

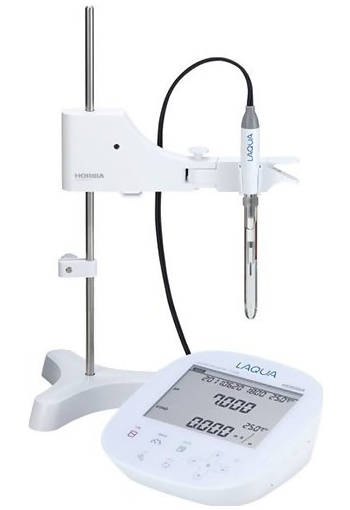

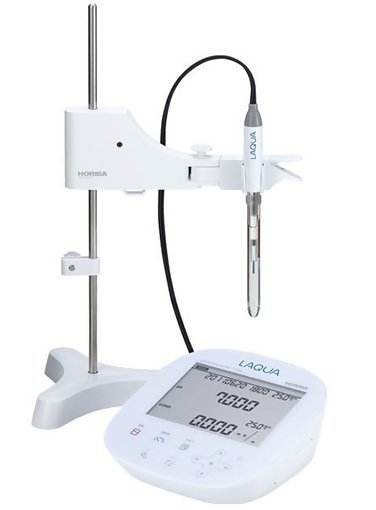

Horiba Model LAQUA F-74BW pH/ ORP/ ion/ Conductivity/ Resistivity/ Salinity/ TDS Laboratory Meter Part No. 3200575128 (Old Part No. 30003473)
CH.1 pH/ORP/ION
CH.2 COND/RESI/SAL/TDS
Measurement items
Features
- Two channels can be displayed simultaneously
- Degital memory:Maximum 999 sets of measurement data can be recorded
- ID input.
- Simultaneous connection to a GLP/GMP compatible and PC.
- Temperature compensation?Auto/manual)
- AutoHold function
- Security(pass word?
- Full support for various country pharmaceutical pure water guidelines
- Version up function
- Package includes Model F-74BW meter, electrode stand, power converter, USA and UK power plugs.
- Custom LCD display
- ELECTRODES ARE NOT INCLUDED
Specifications
pH | Measurement method | Galass electorode method | Measurement range | pH 0.000?14.000 | Display range | pH -2.000?19.999 | Resolution | 0.001 pH | Repeatability | ±0.005 pH±1 digit | pH calibration point | 5 | Repeatability check | ? | Alarm limit of calibration | ? | mV(ORP) | Measurement range | ±1999.9 mV | Resolution | 0.1 mV | Repeatability | ±0.1 mV±1 digit | Temperature | Measurement range | 0.0?100.0?(-30.0?130.0?? | Resolution | 0.1? | Repeatability | ±0.1?±1 digit | ION | Measurement method | Ion electrode method | Measurement range | 0.00 ?g/L?999 g/L (mol/L) | Resolution | Valid numbers 3 digits | Repeatability | ±0.5% ±1 digit | Calibration curve point | 5 | Conductivity | Measurement method | 2 AC bipolar method | Measurement range(Display range) | Cell constant 100 m-1?0.000 mS/m~19.99 S/m
Cell constant 10 m-1?0.0 ?S/m~1.999 S/m
Cell constant 1000 m-1?0.00 mS/m~199.9 S/m | Resolution | 0.05% of full scale | Repeatability | ±0.5% ±1 digit | Change unit | ? | Salinity | Measurement method | Conversion from conductivity value | Measurement range(Display range) | 0.00?80.00 PPT
(0.000%?8.000%) | Resolution | 0.01 PPT (0.001%) | Salt concentration calibration | ? | Resistivity | Measurement method | Conversion from conductivity value | Measurement range(Display range) | Cell constant 100 m-1?0.00 ??m~199.9 k??m
Cell constant 10 m-1?0.0 ??m~1.999 M??m
Cell constant 1000 m-1?0.000 ??m~19.99 k??m | Resolution | 0.05% F.S. | Repeatability | ±0.5%F.S.±1 digit | TDS | Measurement method | Conversion from conductivity value | Measurement range(Display range) | 0.01 mg/L ?100 g/L | Resolution | 0.01 mg/L | Input/output | Input(CH) | 2 | USB peripherals (Communication with PC)*1 | ? | RS-232C(Printer/PC) | ? | Data | Memory number | 999 | Interval memory | ? | ID input | ? | Display | Display | Custom LCD | Dual component display | ? | Function | Printer connectivity?GLP/GMP? | ? | temperature compensation?Auto/manual) | ? | AutoHold function | ? | Security(pass word? | ? | Version up function | ? | Ambient temperature | 0 ? ? 45? | Power | AC adaptor 100 ? 240 V 50/60 Hz | Demensions | 170(W)×174(D)×73(H) mm(Excluding electrode stand and AC adaptor) | Power consumption | Approx. 0.7 VA | Mass of main unit | Approx. 500 g |

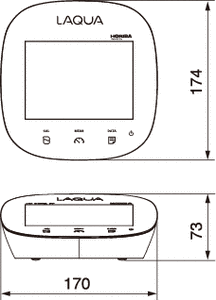

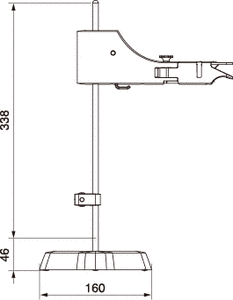

Schematics
