Horiba PA-1100 Environmental Radiation Monitor Radi

See More Horiba Environmental Radiation Monitor Radi

Horiba PA-1100 Environmental Radiation Monitor Radi

See More Horiba Environmental Radiation Monitor Radi
Price:
$2,589.00
    warrenty

    Product Description
    The Advanced envionmental radiation monitor with communication tools and expanded measurement ranges

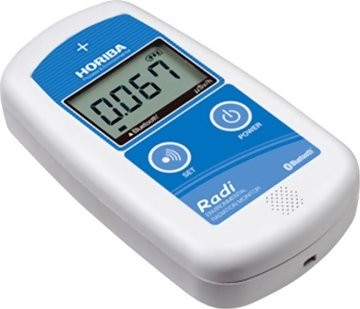

    The Horiba PA-1100 Environmental Radiation Monitor Radi is a communications-capable model in HORIBA's envionmental radiation monitor "Radi" series

    The Horiba PA-1100 Environmental Radiation Monitor simply measures a fair amount of radiation which exists around the regular living area. Equipped with Bluethooth and USB communication, PA-1100 is capable of transfering measurement data to PCs, smart phones, or other devices.


    line
    Features
    line

    • Communication tools facilitate daily data management
    • 【Bluetooth®】The GPS data (dima and location) of the portable device and the radiation amount that PA-1100 acquires can be recorded.

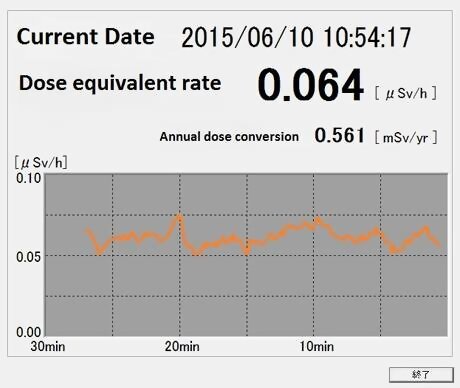

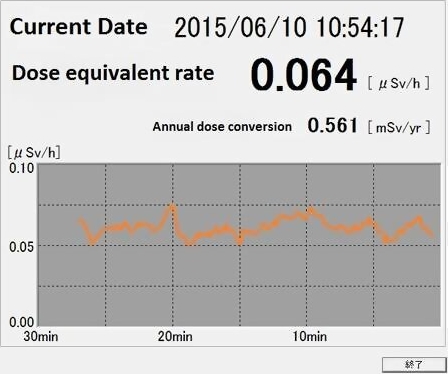

    • 【USB】 Continuous monitoring of doses is available by collecting data transfered from USB into a PC.
    • Expanded measurement ranges: 0.001-19.99µSv/h

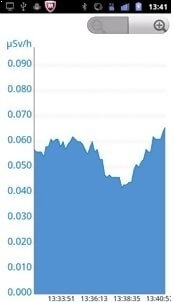

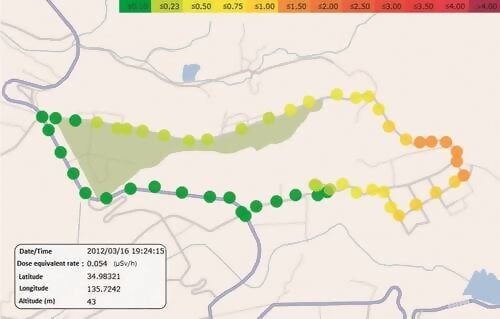

    • Data imported by connection between PA-1100 and Android device displays in sorted colors in a map
    • Valid only PC with internet connection
    • Mapping Software: How to use maping software


    line
    Specifications
    line

    Detection Method

    Scintillation method

    Type of radiation measured

    Gamma (γ) rays

    Measurement range and display

    0.001~9.999, 10.00~19.99 µSv/h
    Digital 4 digit display automatic switching

    Sensitivity

    Count of 1000 or more per minute when Cs-137 is 1µSv/h

    Relative indication error

    Within ±10% (error relative to the reference value of Cs-137)

    Variation in indicating value

    Vriation coefficient less than 0.1

    Mesurement energy range

    150keV to 1.25MeV or higher

    Energy Characteristics

    0.5~3 (response ratio at 150 keV to MeV when Cs-37 is 1)

    Sampling time

    60 seconds

    Power supply

    1.5V 2 AA batteries (manganese or alkaline batteries)

    Display update interval

    10 seconds (display every 10 second of moving average in 60 seconds)

    Dimensions

    68(W) x 28(D) x 121(L) mm
    Approx. 2.68(W) x 1.10(D) x 4.76(L) in.

    Weight

    175g(batteries and strap not included)
    Approx. 6.17 oz.

    Bluetooth communications

    Dose equivalen rate (µSv/h) data is output via Bluetooth communications.
    Bluetooth version 2.1+EDR and Serial Port Profile are supported.

    Operaiting environment of communications terminal

    • Supported operating systems: Andoid version 2.2 or later (Japanese or English)
    • Bluetooth (serial port profile must be supported)
      • A SD card must be mounted

    USB communications

    Dose equivalent rage(µSv/h) date is output via the suplied USB cable.
    Operating envrionment of communications terminal

    • Supported operating systems: Windows XP, Windows Vista, Windows 7 (32-bit/64-bit), Japanese
