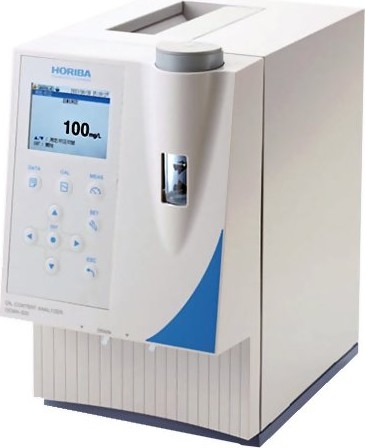

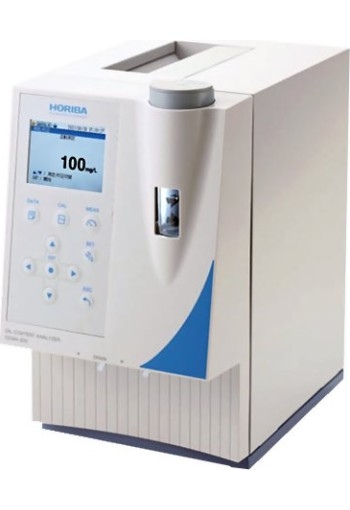

Horiba OCMA-500 # 3200555915 Oil Content Monitor / Analyzer, Old # 30005232
The OCMA-500 measures the concentration of oil contained in drainage and environmental water.

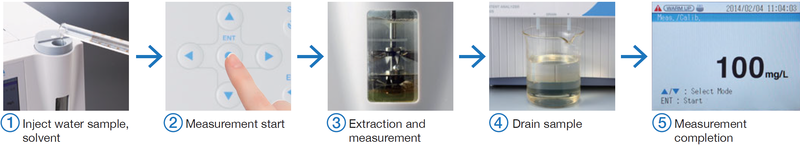

Fully automated one-touch operation, from oil extraction to sample measurement and draining
| The Horiba OCMA-500 # 3200555915 Oil Content Monitor has been redesigned for even better operability, maintaining its user-friendly features. After injecting the sample, all you have to do is press a button to get the monitoring operation done quickly, from oil extraction to sample measurement and draining. This machine is easy for anyone to use.The Horiba OCMA-500 # 3200555915 Oil Content Monitor cuts solvent consumption by 20% compared with our previous products, reducing environmental impact. It also reduces the running costs. | Features
- Fully automated one-touch operation, from oil extraction to sample measurement and draining
- Reduced environmental impact and running costs
(20% cut in solvent consumption) - With no need for a solvent evaporation process, the OCMA-500 offers easy operation, and can detect even oils with low boiling points.
Specifications
Improvement of Operability
- Backlit extraction tank (patent applied for)
The extraction tank is equipped with LEDs. Illuminating the tank makes it easy to check the phase separation between sample and solvent
| *The color depends on the sample.
- Color graphic LCD
The OCMA-500 comes equipped with a 3.5-in color graphic LCD. Menus and measurement data can be clearly seen - USB flash memory drive port
Storing data on USB flash memories enables easy data management on PCs. - Unit conversion
Inputting measurement conditions can change the units displayed (mg/L, mg/kg, mg/g, and mg/PC) as the user needs.
Applications
Factory drainage - For monitoring final discharge water
|
Ballast water, Bilge - For monitoring discharge from ships
|
Vehicle maintenance site and gas station - For monitoring water quality in surrounding areas
|
Others - Water quality survey based on environmental standard.
- For monitoring final discharge from petroleum refinery plant.
- For oil dispersion research at time of an accident.
| Related Products

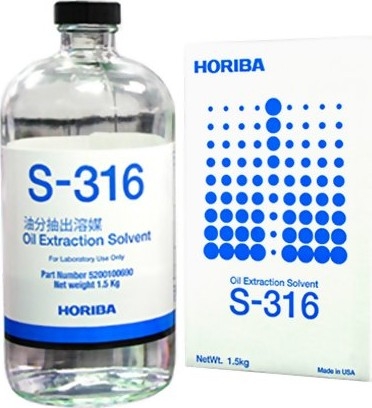

Horiba S-316 Extraction Solvent Oil - 5200100690
This solvent is required to:
- Prepare the calibration solution to calibrate the infrared Spectrometer OCMA: pure solvent (zero Calibration), solvent + oil (span calibration)
- Extract the oil and grease from the sample
- Perform the measurement by Infrared Abortion (NDIR)
- Clean the measurement cel

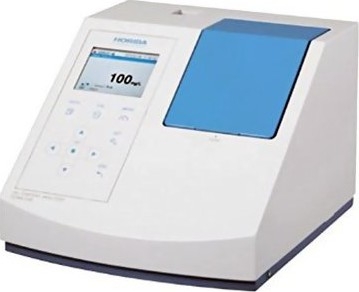

One bottle of S-316 allows performing up to 40 measurements* on a previously calibrated OCMA-550 analyzer
*Base on 20 ml per measurement (15 ml for extraction and 5ml for cell cleaning)
