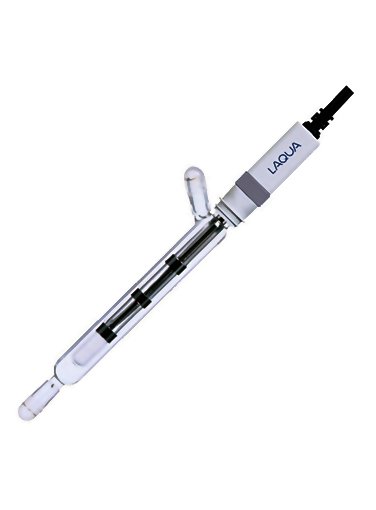

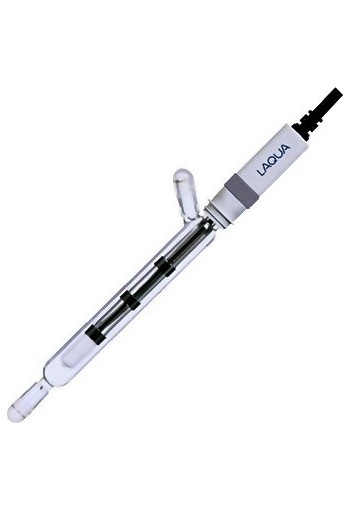

Horiba Laqua 3562-10D Conductivity Cell, Flow Type, # 3014082513
For general purpose use
Glass body, Platinum/Platinum black, k=1, conductivity cell with integrated temperature sensor
The Horiba LAQUA 3562-10D is a flow through design conductivity cell with integrated temperature sensor meant for general purpose testing
HORIBA's superior electrode technology has produced unparalleled tough pH glass bulbs and unique flat sensors. Electrodes have different designs to cater a wide range of applications - from pure water to complex samples.
Features
- For general purpose use
- Glass body, Platinum/Platinum black, k=1, conductivity cell with integrated temperature sensor
Specifications
Cell Constant (cm-1) | 1 |
Measurement Range | 1µS/cm to 100mS/cm |
Sample Volume Required (ml) | 16 |
Temperature Sensor | Integrated |
Temperature Range | 0 to 60 °C |
Connectors | BNC, phono jack |
Cable Length | 1m |
Overall Length | 205mm |
Diameter | 18mm |
Cell Material | Platinum coated with platinum black, glass body |
The actual cell constants are within ±10% of the nominal value.
