Specifically Designed By Pipe-Flange Inspectors. Measurement Scale: Inch or Metric.
Kit Contents
- Measures: 13" x 8" x 3"
- Cat # 5 V-WAC Gauge (inch or metric)
- Cat # 8 Fillet Weld (inch or metric)
- Cat # 1 Hi-Lo Gauge (inch and metric)
- Cat # 34 Burk Flange Alignment Tool (Inch Only)
- 6" SPI Scale (inch or metric)
- Intrinsic Flashlight
- Inspection Mirror with Magnetic Pick-Up
Optional NIST Standard Certification for Cat # 1, Cat # 5, Cat # 8, Cat # 34 (no data) available.
Features
- Cat # 5 V-WAC Gauge - Measures porosity, crowns and undercuts/pits to 1 / 4 inch - Inch or Metric
- Cat # 8 Fillet Weld Set - Checks the leg and throat for fillet welds. Measurements go from 1 / 8 " 1 inch - Inch or Metric
- Cat # 1 Hi-Lo Welding Gauge - Measures the internal and external misalignment. It can also measure crown heights, pipe wall thickness, fit-up gap and bevel on end preparation. Comes with both Inch and Metric

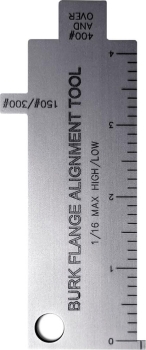

- Cat # 34 Burk Flange Alignment Tool - Checks for proper gasket crushof 150 to 1200 lbs flanges. Side scales check external misalignment of flange. Can only be used on spiral wound gaskets. The Burk Flange Alignment Tool is available in Inch only
- 6 " SPI Scale / Ruler Inch or Metric
- Intrinsic Flashlight - Flashlight is designed to mitigate sparking that could otherwise ignite elements in a hazardous environment
- Inspection Mirror with Magnetic Pick-Up - TWO handy tools in one. 1 " x 2 " Oval Mirror is held firmly in place at all angles. 5 - 5 / 8 " to 20 - 3 / 4 " telescoping reach. Powerful long-life magnet
Related Products
G.A.L. Gage Co. Cat # 8 Fillet Weld Gauge 7-Piece Sets GAL-8
- allows fast, accurate measurement of eleven (11) fillet welds sizes: 1/8, 3/16, 1/4, 5/16, 3/8, 7/16, 1/2, 5/8, 3/4, 7/8, and 11.
