Imada ESH High Capacity Mechanical Force Gauge

See More Mechanical Force Gauges

Imada ESH High Capacity Mechanical Force Gauge

See More Mechanical Force Gauges
This product has been discontinued

Product Description
This product has been replaced by the Imada PSH
The ESH has been replaced by the PSH High Capacity Mechanical Force Gauge
High Capacity Mechanical Force Gauge
11 Ranges up 500lbs / 300 Kg / 3000 N
Intrinsically Safe for use in hazardous environments

The Imada ESH series mechanical force gauge is designed for high capacity measurements from 200 lbs up to 500 lbs (300 kg). The rugged metal housing and heavy duty springs will withstand the harsh rugged environment of a manufacturing plant, yet the highly accurate, matched springs will ensure reliable results and retain their accuracy over long periods. The tare ring allows you to zero the gauge and compensate for measuring attachments and changes in measuring position. The real time/peak hold selector switch enables you to observe transients or capture peaks. The Imada ESH force gauges are available in pounds, kilograms and Newtons. No batteries are needed and the unit is intrinsically safe in hazardous environments.

line
Features
line

  • Real time and peak mode
  • Simple, rugged, virtually maintenance free
  • No batteries needed
  • Full set of accessories and carrying case included
  • Capacities up to 500 lbs (push and pull)
  • Intrinsically safe in hazardous environments
  • Heavy duty metal construction
  • Tare Ring
  • ISO/IEC 17025 Long-form Certificate & Test Data is optionally available
  • 2 Year Warranty

line
Force Ranges
line

Model Capacity (resolution)
ESH-200 200 lb (2 lb)
ESH-300 300 lb (2.5 lb)
ESH-400 400 lb (4 lb)
ESH-500 500 lb (5 lb)
ESH-100 kg 100 kg (1 kg)
ESH-200 kg 200 kg (2 kg)
ESH-300 kg 300 kg (2.5 kg)
ESH-1000 N 1000 N (10 N)
ESH-2000 N 2000 N (20 N)
ESH-3000 N 3000 N (25 N)

M10p1.5 Threaded measuring shaft (top & bottom)
Displacement at full scale capacity is 10mm

line

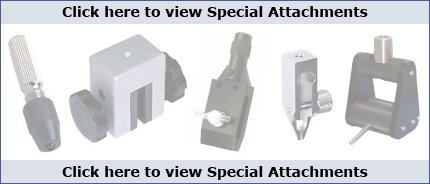

Special Attachments
line

ABQ

line
Standard Attachments
line

ABQ

line
Dimensions
line

dimensions

line
Specifications
line

Accuracy ± 0.5% Full Scale
Stroke 10 mm
Weight 3.1 Kg
Warranty 2 Years


line
Complete Kit
line

Sold in kit form complete with force gauge, hard plastic carrying case, handles, measuring attachments (hook and flat head), and extension shaft. Four installation bolts are also included for mounting the gauge to a test stand or other permanent location.

complete kit
