The Straightpoint SID6T5 Digital Dynamometer with Built-in Display - 14,300lb / 6500kg / 6.5t Capacity is designed to replace outdated analog mechanical dynamometers, the SID Self indicating dynamometer provides a measuring capacity of 14,300lb / 6500kg / 6.5t. It is ideal for use where close-up load monitoring is required, such as when operating lever or chain hoists at height or lifting vehicle motors.

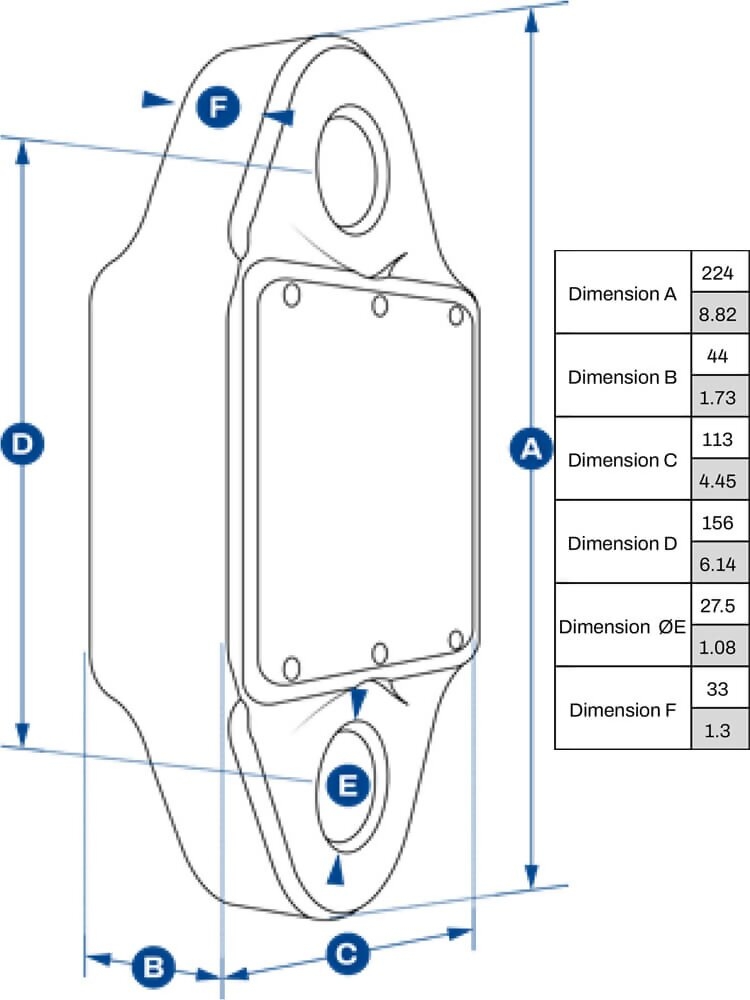

Providing accurate load measurement and incident and injury prevention this dynamometer is rigged using industry-standard shackles such as Crosby G2130, the compact design minimizes headroom loss (6.14” or 156mm from eye to eye).
Constructed with high-grade aircraft quality aluminum and with a safety factor of 6:1, its lightweight design does not sacrifice on strength in fact, Crosby SP’s link style dynamometers are on average 30% lighter than other suppliers.

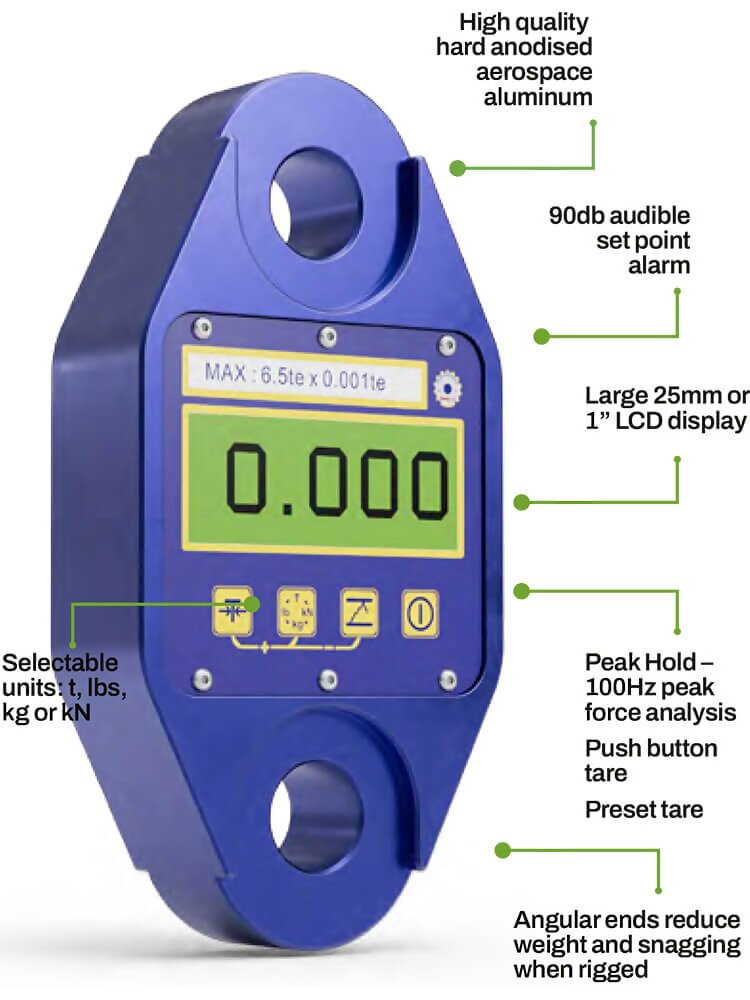

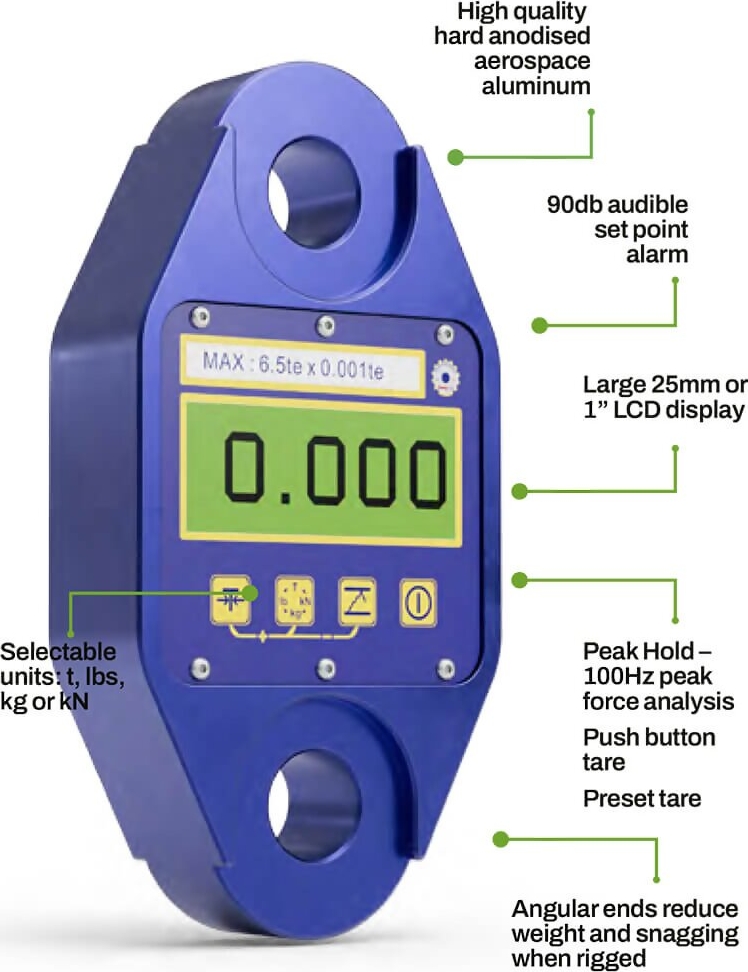

- 0.2% high accuracy
- Includes Calibration Certificate
- Resolution of 2 Lbs (0.001 Ton)
- Selectable measurement units (lbs, kg, kN and ton)
- 100Hz high-speed peak hold
- 90db Audible set point alarm limit
- Tare and preset tare
- Overload counter
- Large 1" / 25mm LCD display
- 6:1 Safety Factor
- RS-485 serial output
- IP65 / NEMA 4X Protection for use outdoors in all weather conditions
- Operating Temperature Range of 14 to 122° F (-10 to +50° C)
- 2-year warranty
| Accuracy: | +/- 0.2% of full scale |
| Capacity: | 14,300 lb / 6.5 Kg |
| Resolution: | 2 lb / 1 Kg / 0.001 T / 10 N |
| Weight: | 3.3 lb / 1.5 kg |
| Safety Factor: | 6 1 |
| Battery Type: | 9v PP3 |
| Battery Life: | 80 hours continuous use |
| Operating Temp: | 14 to 122°F / -10 to +50°C |
| Display Type: | 6 digit 25 mm LCD / 6 digit 1 inch LCD |
| Protection: | IP65 / NEMA 4X (Weatherproof) |
| Units of Measure: | Selectable measurement units (lbs, kg, kN and ton) |
The Straightpoint Bluelink Bluetooth Dynamometer is designed to replace outdated mechanical models. With a 6.5 tonne / 14,300lb (6500kg) capacity, the BlueLink Dynamometer is the latest SP product to feature Bluetooth wireless technology. The long-range Bluetooth signal connects to any iOS or Android device that has our free HHP app installed, providing the operator with a wireless range of up to 328ft / 100m. This allows them to stand in a safe position away from the load, with no requirement to read directly from the dynamometer. The app will also allow the operator to log data versus time or on events such as over or underload. An adjustable alarm will alert the operator on their smartphone if any overload is occurring. Rigged using industry-standard shackles such as Crosby G2130, the BlueLink has been designed to minimize headroom (6.14” or 156mm from eye to eye). With a safety factor of over 500%, its compact lightweight design does not sacrifice on strength. Constructed from high-quality aerospace-grade aluminum, which is then hard-anodized, it features an advanced internal design structure. This design provides the product with an unrivaled strength to weight ratio. The use of a separate internal sealed enclosure administers the load cell's electronic components with IP67 or NEMA6 environmental protection, even with the battery cover plate missing. All these features make it an industry-leading compact dynamometer, even more suitable for use in the harshest industrial or leisure environments.
The Crosby Straightpoint Radiolink Plus Wireless Dynamometer Tension Load Cell is designed for weighing and dynamic load monitoring in a wide range of applications. It is constructed of high-quality aircraft grade aluminum and features an advanced internal design structure. The design not only provides an unrivaled strength to weight ratio but also allows the use of a separate internal sealed enclosure providing the load cell's electronic components with IP67 environmental protection even with the battery cover plate missing, making this industry leading dynamometer even more suitable for use in the harshest environments. Featuring industry leading wireless technology and range, the versatile Radiolink plus has an update rate of 3Hz and can be easily configured to run at industry leading speeds of up to 200Hz. Data is transmitted wirelessly utilizing the latest in IEEE 802.15.4 (2.4 GHz) technology providing safe, high integrity, error free transmission of both static weight and dynamic load to a wireless handheld controller. Designed for measurement of both Static and Dynamic Loads the Radiolink Plus can also be used in combination with our range of high speed wireless data logging software allowing for simultaneous control, display and real time data logging of up to 100 Straightpoint telemetry Load Cells.
