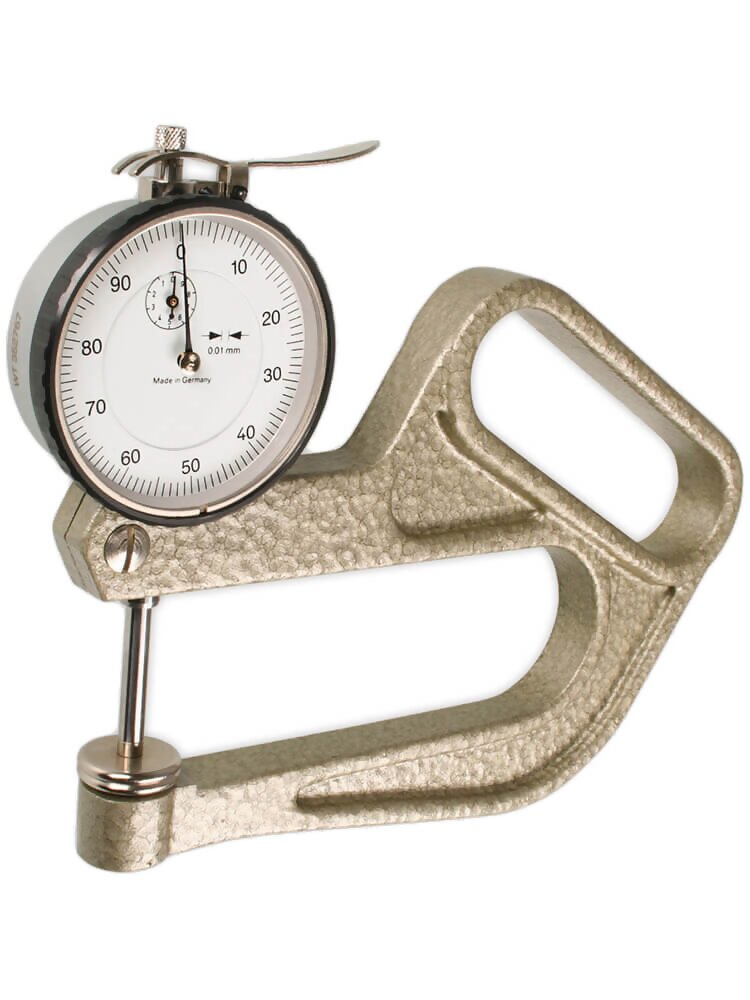

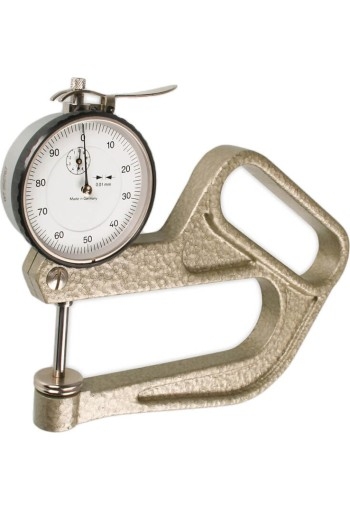

Name: Hans Schmidt Series J Analog Thickness Gauges - Hand-held
Brand: Hans-Schmidt
SKU: 2080

Hans Schmidt Series J Analog Thickness Gauges - Hand-held

See More Dial Thickness Gauges

Measuring range: 0 - 10 mm

Resolution: 0.01 mm

Measuring range: 0 - 10 mm
Resolution: 0.01 mm
Thickness gauge to determine the thickness of leather, textiles, cardboard, felt, rubber, sheet metal, foil, plywood, plastic, foam and more

line
Features
line

J Series Thickness Gauge feature easy to read analog display along with the high accuracy
J Series models are available with 5 different feelers. See selection of feelers below.
Measuring by specified spring force of 1.2 N (optional 0.6 N or 2 N)
Opening by lifting device (lever) – self closing thickness gauge

line
Specifications
line

Resolution	0.01 mm
Measuring range	10 mm
Jaw Depth	18 mm thru 400 mm
Bezel diameter	54 mm
Measuring pressure	1.2 N (optional 0.6 N or 2 N) ± 10 %
Feeler shape	A/B/C/D/E
Measuring principle	Self closing
Weight, net (gross)	450 g (500 g)

line
Available Models
line

Model	Measuring Range	Resolution	Jaw Depth	Standard Contact Point
J-15	10 mm	0.01 mm	18 mm	6.35 mm flat
J-45	10 mm	0.01 mm	45 mm	6.35 mm flat
J-50	10 mm	0.01 mm	50 mm	C
JA-50	10 mm	0.01 mm	50 mm	C
J-100	10 mm	0.01 mm	100 mm	C
J-200	10 mm	0.01 mm	200 mm	C
J-300	10 mm	0.01 mm	300 mm	C
J-400	10 mm	0.01 mm	400 mm
J-200-30	30 mm	0.01 mm	200 mm	C
J-300-30	30 mm	0.01 mm	300 mm
J-400-30	30 mm	0.01 mm	400 mm

line
Feeler Shape
line

To order, please indicate the desired feeler, e.g. K-200-B for gauge with feeler B. This means that NOT all feelers are included in the package!

	Feeler: A For rubber, felt, soft materials, non wovens, etc. Meets no DIN EN ISO standard
	Feeler: B For rubber, felt, soft materials, non wovens, etc. Meets no DIN EN ISO standard
	Feeler: C For soft leather, cardboard, paper, foils, etc.
	Feeler: D For hard leather, plywood, fiberboard, etc.
	Feeler: E For sheet metal, etc.

ADD TO CART THE ITEMS YOU WOULD LIKE TO PURCHASE

Models

Price

Hans-Schmidt J-100-A Dial Thickness Gauge, 10mm Range, 100mm Jaw Depth, 30mm Feeler (A) View Model Details

$358.00

Hans-Schmidt J-100-B Dial Thickness Gauge, 10mm Range, 100mm Jaw Depth, 20mm Feeler (B) View Model Details

$358.00

Hans-Schmidt J-100-C Dial Thickness Gauge, 10mm Range, 100mm Jaw Depth, 10mm Feeler (C) View Model Details

$358.00

Hans-Schmidt J-100-D Dial Thickness Gauge, 10mm Range, 100mm Jaw Depth, 10mm Curved Feeler (D) View Model Details

$358.00

Hans-Schmidt J-100-E Dial Thickness Gauge, 10mm Range, 100mm Jaw Depth, 5mm Curved Feeler R=1.59 (E) View Model Details

$358.00
