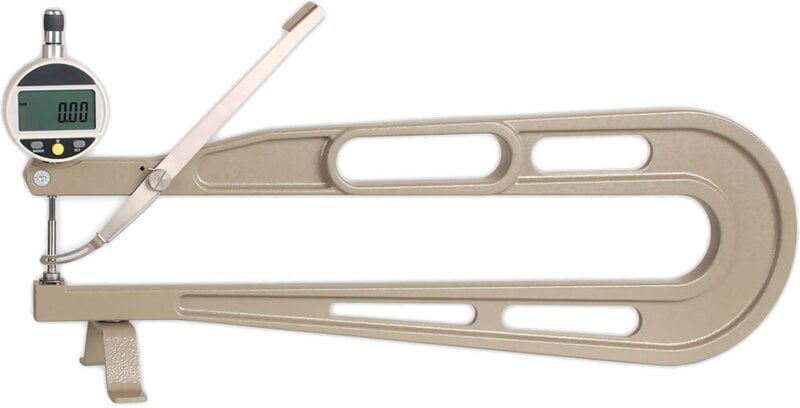

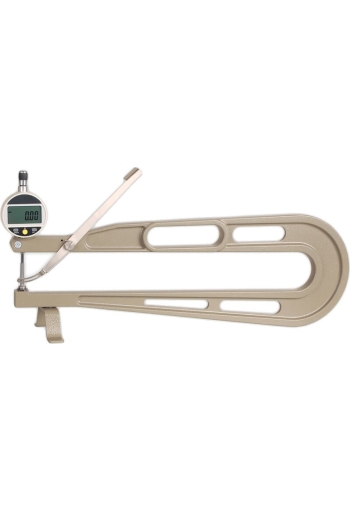

The Hans-Schmidt JD-400 Digital Thickness Gauge with 400mm Jaw Depth is a digital thickness gauge with a 400mm throat depth is designed for measuring the thickness of leather, textiles, cardboard, felt, rubber, foam, sheet metal, foil, plywood, plastic, etc.

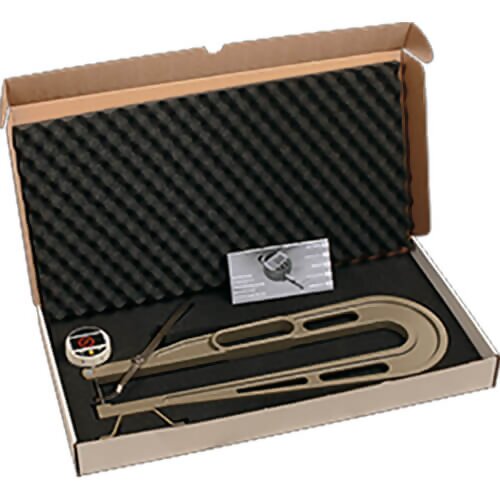

Kit Contents
- Hans-Schmidt JD-400 Digital Thickness Gauge with 400mm Jaw Depth
- Battery
- Transport Packing Case
Features
- Selectable units of measurement (mm or inch)
- Calibration Certificate OPTIONAL
- Choice of 5 different feelers, see list below (select only 1)
- USB and RS-232 output, requires optional USB or RS-232 output cable
Specifications
| Resolution | 0.01 mm / 0.001 inch |
| Measuring range | 0 – 12.50 mm / 0.500 inch |
| Depth of jaw | 400 mm / 16" |
| Feeler shape | A/B/C/D/E (select one) |
| Display | LCD 6 digit, 8.5 mm high |
| Measuring system | Capacitiv (Sylvac) |
Feeler Shape
To order, please indicate the desired feeler, e.g. JD-400-B for gauge with feeler B. This means that NOT all feelers are included in the package!
 | Feeler: A For rubber, felt*, soft materials*, non wovens*, etc. *Meets no DIN EN ISO standard |
| Feeler: B For rubber, felt*, soft materials*, non wovens*, etc. *Meets no DIN EN ISO standard |
| Feeler: C For soft leather, cardboard, paper, foils, etc. |
| Feeler: D For hard leather, plywood, fiberboard, etc. |
| Feeler: E For sheet metal, etc. |
