Resolution: 0.001 mm (1 µm)
Measuring range: 0.1 mm
Accuracy: ± 0.5 µm
Depth of jaw: 30mm
Measuring range: 0.1 mm
Resolution:: 0.001 mm
Accuracy:: ± 0.5 µm

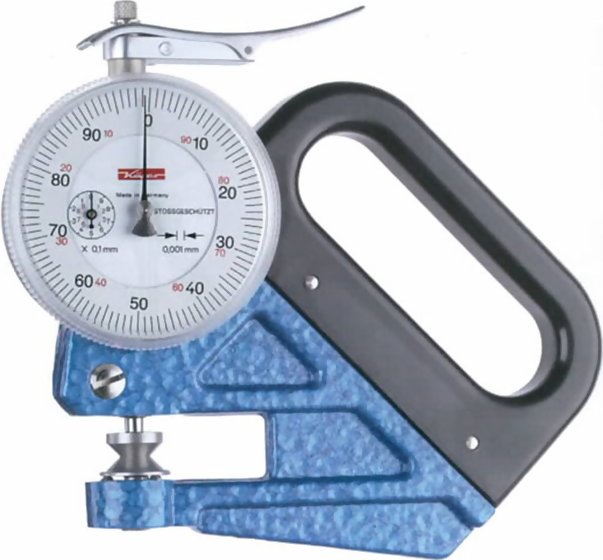

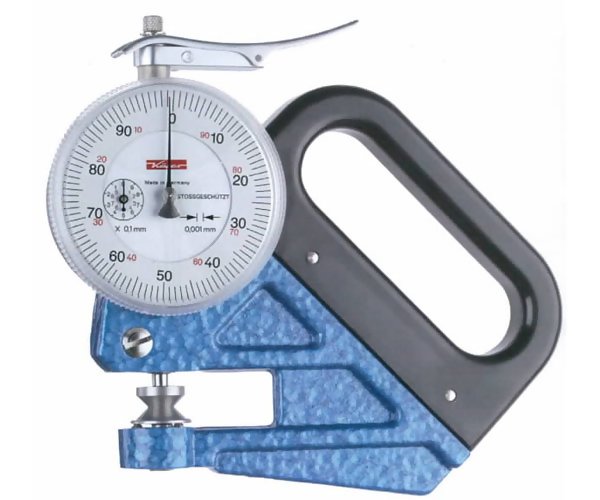

The Checkline F-1101-30-01 Thin Foil Dial Thickness Gauge is used exclusively to measure the thickness of thin foils. The frame has the required rigidity, the insulation of the handle prevents transfer of heat from the hand of the user to the sensitive mechanical parts of the Dial Gauge.
The applied pressure is approximately 2 N.
Features
- Special purpose model with resolution of 0.001 mm (1 µm)
- Operating by lifting device - self closing - 2 N pressure
- Insulated handle prevents transfer of heat from the hand of the user to the sensitive mechanical parts of the Dial Gauge
- High accuracy of ± 0.5 µm
Specifications
| Resolution | 0.001 mm |
| Measuring range | 0.1 mm |
| Accuracy | ± 0.5 µm |
| Depth of jaw | 30 mm |
| Scale diameter | 58 mm |
| Measuring pressure | 2.0 N |
| Scale | 1 revolution = 0.1 mm |
| Feeler shape | F - 6.35 mm Ø flat |
| Measurment by spring load | Operating by lifting device - self closing |
| Warranty | 1 year |
Feeler Shape
 | Feeler: F For soft leather, cardboard, paper, foils, knitting needles etc. |
