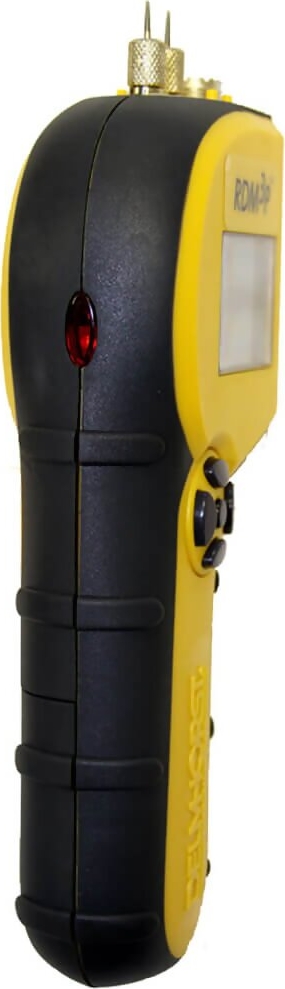

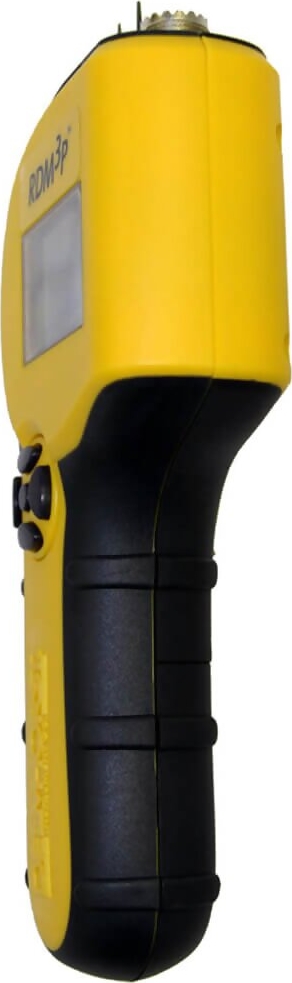

Delmhorst RDM-3P Paper Moisture Meter

See More Delmhorst Moisture Meters

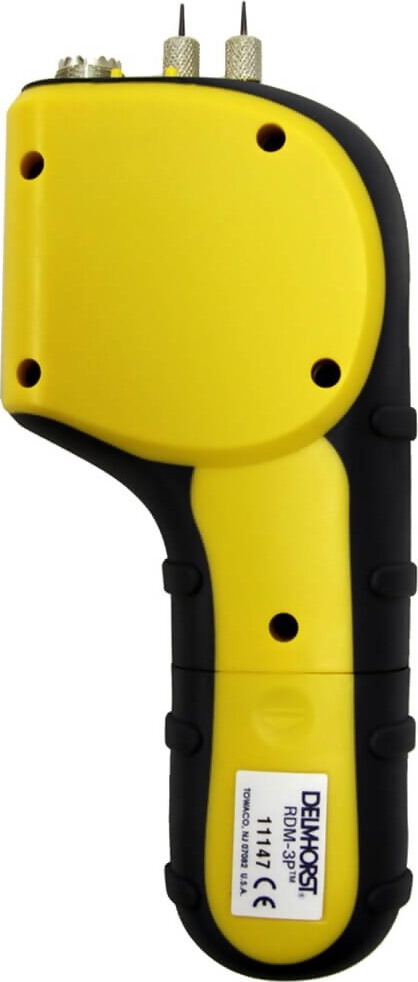

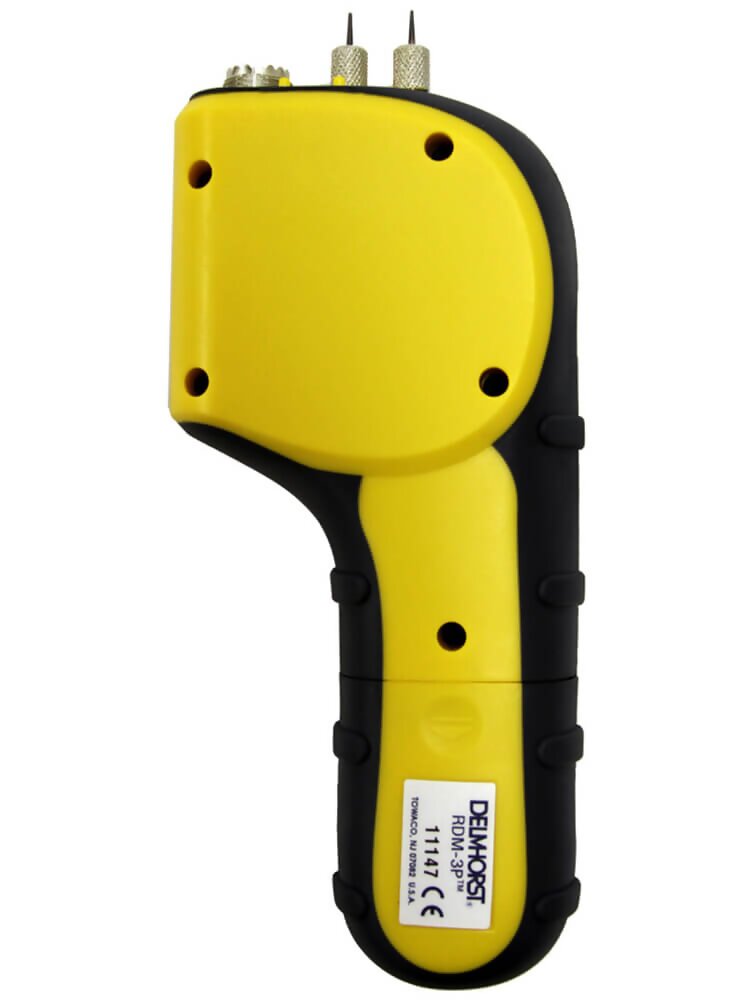

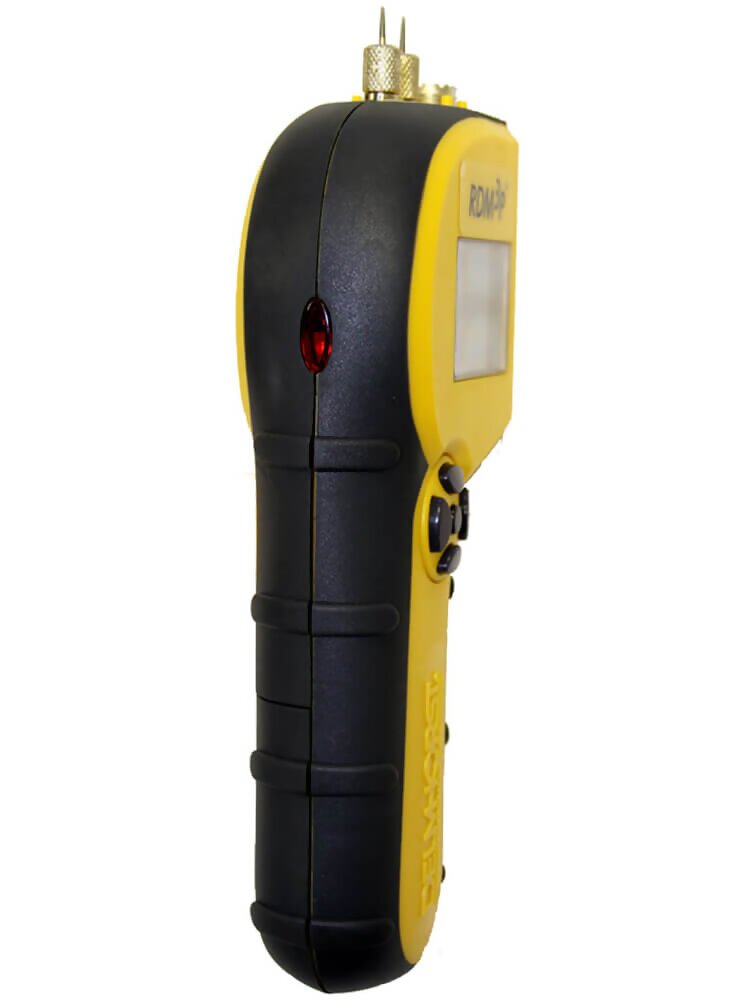

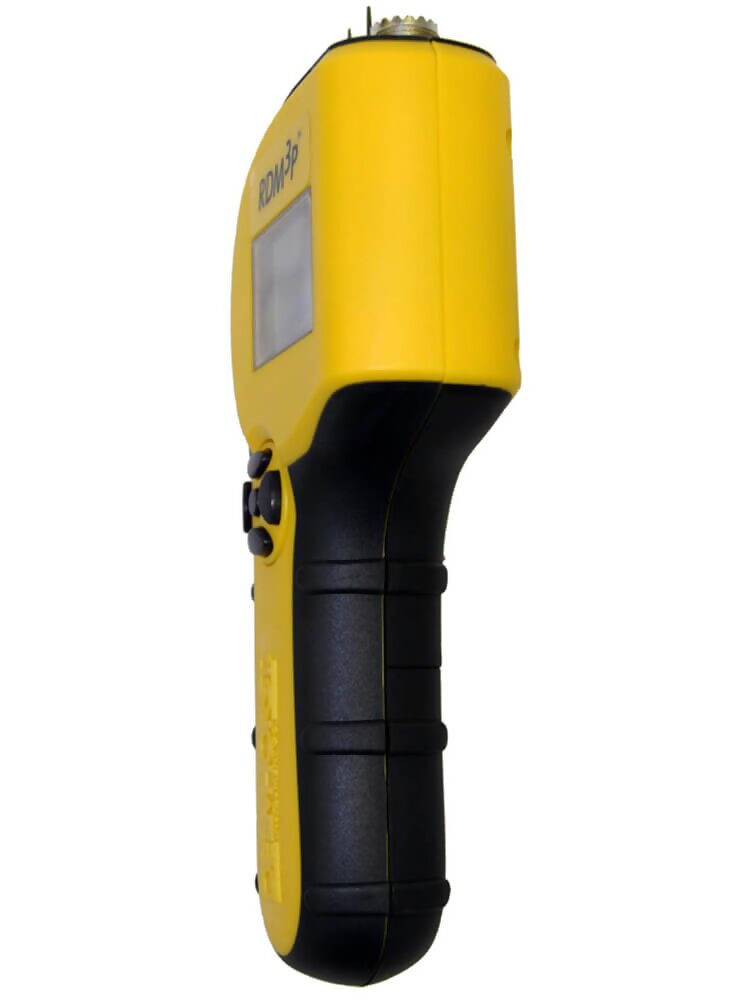

Delmhorst RDM-3P Paper Moisture Meter

See More Delmhorst Moisture Meters
Price:
$740.00 - $925.00
    warrenty

    Product Description

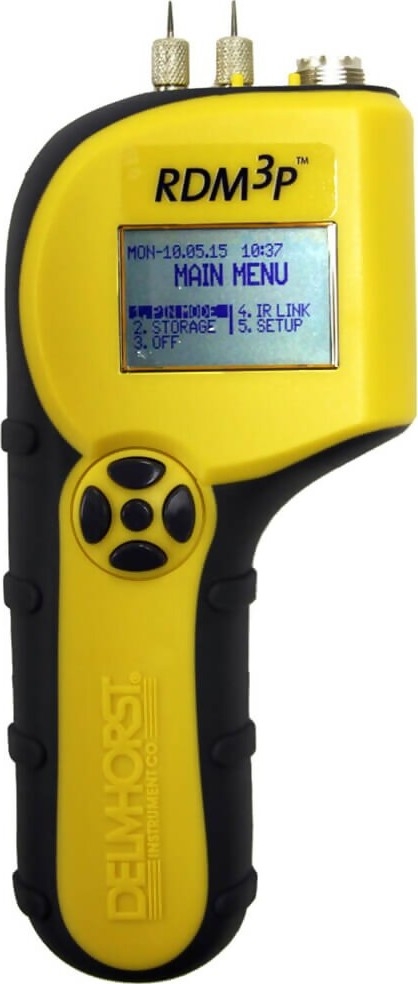

    Bright, clear digital display
    Integral contact pins mounted on top of meter provide 5/16” penetration
    Built-in connector accepts any Delmhorst electrode

    The Delmhorst RDM-3P Paper Moisture Meter is fully equipped for testing paperboard, corrugated stock, and paper tubes using its paper scale, 0-100 reference scale, and baled paper scale. Whatever the situation calls for, the RDM-3P delivers. Advanced storage and recall features make it easy to organize multiple jobs, or even download data to a PC via the optional linkage software. The paper production industry has a new ally in the reliable and precise RDM-3P!


    line
    Kit Contents
    line

    Delmhorst RDM3PW/CS Paper Moisture Meter
    • Delmhorst RDM-3P Paper Moisture Meter
    • Contact Pins
    • Carrying Case
    • Instruction Manual

    line

    Delmhorst RDM3P/PKG Paper Moisture Meter
    • Delmhorst RDM-3P Paper Moisture Meter
    • PC/KIT software application program
    • Contact Pins
    • Carrying Case
    • Instruction Manual


    line
    Features
    line

    • Bright, clear digital display
    • Three scales:
      • 5.3%-23% MC for paper
      • 8%-40% MC for baled scrap paper
    • 0 - 100 arbitrary scale for obtaining relative moisture indications on other material

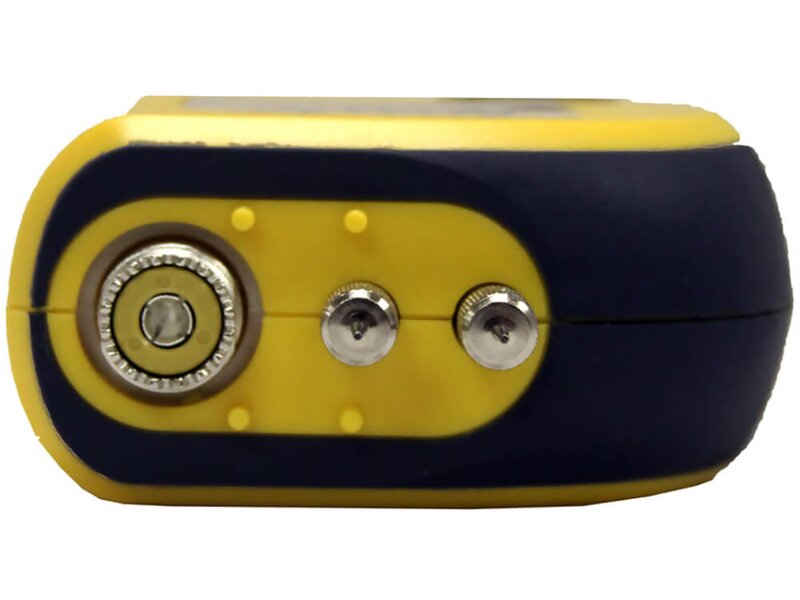

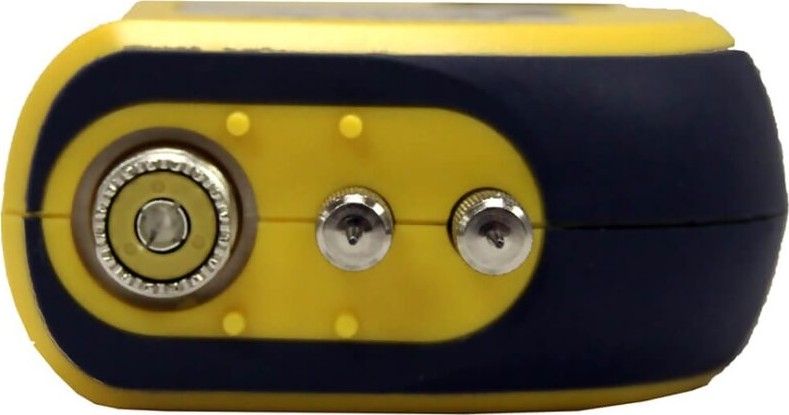

    • Integral contact pins mounted on top of meter provide 5/16” penetration
    • Built-in connector accepts any Delmhorst electrode
    • Audible, adjustable alarm alerts you when your pre-selected MC has been reached
    • Auto-shut off timer saves battery life
    • Store up to 1400 readings with date and time stamp
    • View stored readings on screen
    • Organize readings by job for easy reference
    • Optional software lets you download readings to your computer and generate Excel reports
    • Size: 8 ½” x 3 3/8” x 1 ¾”
    • Weight: 11 oz
    • Rugged construction ensures years of reliable use
    • Sturdy plastic carrying case
    • 9V battery
    • 1 year warranty


    line
    Accessories
    line

    Delmhorst 2497/A-100 - pack of 24

    Uninsulated pin and retainer with 5/16" penetration. Standard on all meters with built-in pins and the 2-E and 4-E electrodes. Used on wood up to 6/4 (1 ½”), concrete and gypsum.

    line

    Delmhorst MCS-2

    This moisture content standard is great for verifying that your P-2000 or RDM-3P paper moisture meters are in calibration. With two electrical resistance values (6% and 10%) to test your meter against, you can be sure that your readings will stand up to the strictest standards of accuracy. The MCS-2 is also available with a letter of certification traceable to NIST.Please Note:

    • For P-2000 meters with serial numbers up to 19389, please order the MCS-2
    • For P-2000 meters with serial numbers of 19390 and above, please order the MCS-2X.

    line

    Delmhorst PC/KIT/NAV

    Enables you to download stored readings from the meter to a PC via infrared linking. This software will enable you to:

    • Export job data to Excel
    • Customize printing options
    • View readings and stats in the application program
    • Save and print individual or group job readings
    • Customize job title
    • View data in Fahrenheit or Celsius
    • Append notes to each job
    • Generate graphical histogram

    All these features are provided in a easy to use GUI interface, and are compatible with Windows 95/98/ME/2000/XP/Vista/7/8/10.The PC/KIT is included in several of our moisture meter packages, or may be ordered separately. It can be used with the Moisture Check, Navigator Pro, RDM-3, RDM-3P, and Total Check moisture meters.

    line

    Delmhorst 12-E

    Double roller type for measuring moisture content on a moving web.

    line

    Delmhorst 15-E

    Pin type, with two rows of four pins each, maximum penetration 1/8". Penetration can be adjusted according to stock thickness by means of gauge block. Used for veneer.

    line

    Delmhorst 19-E

    Blade type electrode for measuring of paper on skids. Blades are 5" long. Longer blades available on special order.

    line

    Delmhorst 2-E

    Fitted with the same 5/16" penetration pins that are mounted on our pin type meters. This electrode is great for a variety of different applications:

    • Home inspector: Use on wood joists and drywall
    • Paper producer: Use on curved surfaces such as cardboard and paper tubes
    • Woodworker: Use on timber, poles, and veneer

    2-E is also available as the 2- ET with a tapped handle for hard to reach areas. Can also be fitted with A-103 uninsulated pins with 1 3/32” length and 11/16” penetration.

    line

    Delmhorst 43-E

    Clamp type for testing thin sheet stock. The sample tested is compressed between two smooth discs.

    line

    Delmhorst 55-E

    Leaf type for measuring moisture content on a moving web or roll. Can be used with a portable unit or for stationary installation.

    line

    Delmhorst 830 Series

    Prods for testing standard and high density bales (requires H-4 Handle).

    • 830-2 – 10” prod
    • 830-3 – 18” prod
    • 830-4 – 36” prod
    • 830-5 – 12” prod

    line

    Delmhorst H-4 Handle

    Electrode handle that attaches to the built-in connector on the top of any moisture meter. Can be used with the 830 series prods, 831 short pin disc shaped prod, and 832 long pin disc shaped prod. This is useful for large or high density bales of hay or scrap paper. Two handed operation is recommended over using a prod that connects directly to the top of the meter (like our 1235 series) to minimize stress placed on the meter casing.


    line
