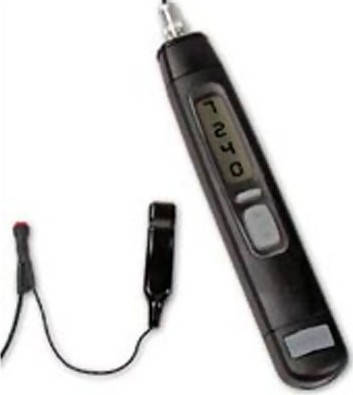

Compact A2106 Advent Diesel Engine Handheld Tachometer, Speed Range 60 to 18,000rpm

See More Handheld Tachometers

Compact A2106 Advent Diesel Engine Handheld Tachometer, Speed Range 60 to 18,000rpm

See More Handheld Tachometers
Price:
$650.00
    warrenty

    Product Description

    Compact A2106 Advent Diesel Engine Handheld Tachometer is  Ideal for checking fast idle & maximum governed speeds


    Hands free operation mode
    Range of Injector pipe Transducers available for 4.5mm - 10mm dia. Pipes

    The Compact A2106 Advent Diesel Engine Handheld Tachometer is an ideal test Tachometer for most diesel engine applications, it functions with all types of Diesel engines (where exposed injector pipes exist). The speed is sensed by a transducer clamped around an injector pipe, the correct size sensor is required for each pipe diameter.

    Automatic Measurement - Auto switch off

    The units operate continuously once powered on, measurement will be automatic while speed pulses are being received from the Transducer, after approximately 5 minutes of inactivity the instrument switches off.

    Inverting display

    This unique feature allows the Tachometers to be used through 180 degrees rotation, providing easy readability in difficult applications.

    Maximum revs capture mode

    Allows the user to take “single shot” peak speed checks on machines with automatic overspeed governors and centrifugal clutch checking, the actual maximum speed is held in the display.


    line

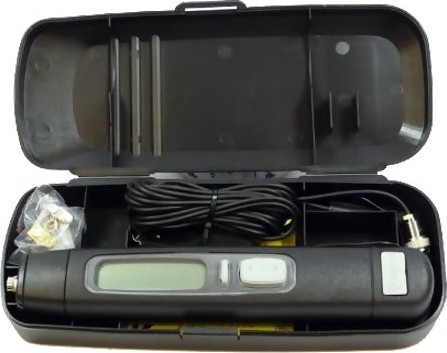

    Kit Contents
    line

    • Compact A2106 Advent Diesel Engine Handheld Tachometer
    • Batteries
    • Calibration certificate

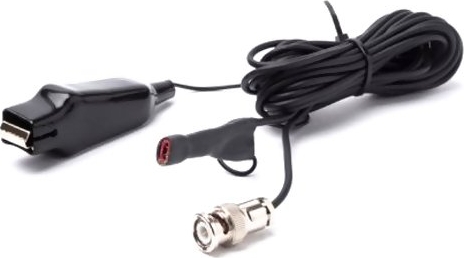

    • Transducer cable
    • Transducer DES/10 (6mm)
    • Instruction Manual
    • Carrying Case


    line
    Features
    line

    • Ideal for checking fast idle & maximum governed speeds
    • Speed range 60 - 8,000 rpm
    • 1 rpm resolution
    • Ideal for most 4 Stroke and 2 Stroke Diesels
    • Range of Injector pipe Transducers available for 4.5mm - 10mm dia. Pipes
    • Reversible display
    • Hands free operation mode
    • Inverting display adds versatility


    line
    Specifications
    line

    Speed Range60 to 18,000rpm
    Resolution10 rpm
    Accuracy0.05% +/- 1 digit
    Update0.8 sec (normal mode)
    Capture mode0.1 sec
    ControlsOn, invert, Capture select ratios 1:2 or 1:1
    Auto OffAuto shutdown if inactive for 5 minutes
    Signal IndicatorYes in display
    Low battery ind.Yes in display
    Power4x AAA batteries
    Transducer Cable1 metre cable connectors included
    CarrycaseSupplied


    line
    Injector Pipe Transducers Standard
    line

    CodesPipe Size CodesPipe Size
    DES/094.55mmDES/128mm
    DES/106.00mmDES/147mm
    DES/116.35mmDES/1510mm
