PCWI High Voltage Direct Current Crest Meter, Jeep Meter or Volt Meter

---

Calibration Reference Device for the Compact range of Porosity Detectors

---

Can be used in accordance with ASTM G62, ASTM D5162, ASTM D4787, NACE RP0274, NACE SP0490, NACE SP0188, ANSI/AWWA C213, ANSI/AWWA C214, ISO 2746

---

New Part. No. DCCREST - Old Part No. 1095

---

Measuring Range: 5,000 to 30,000 Volts

---

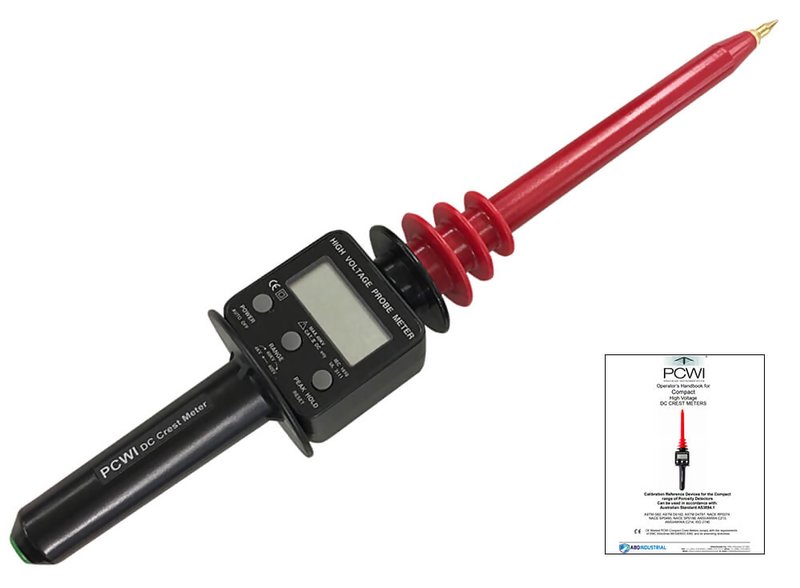

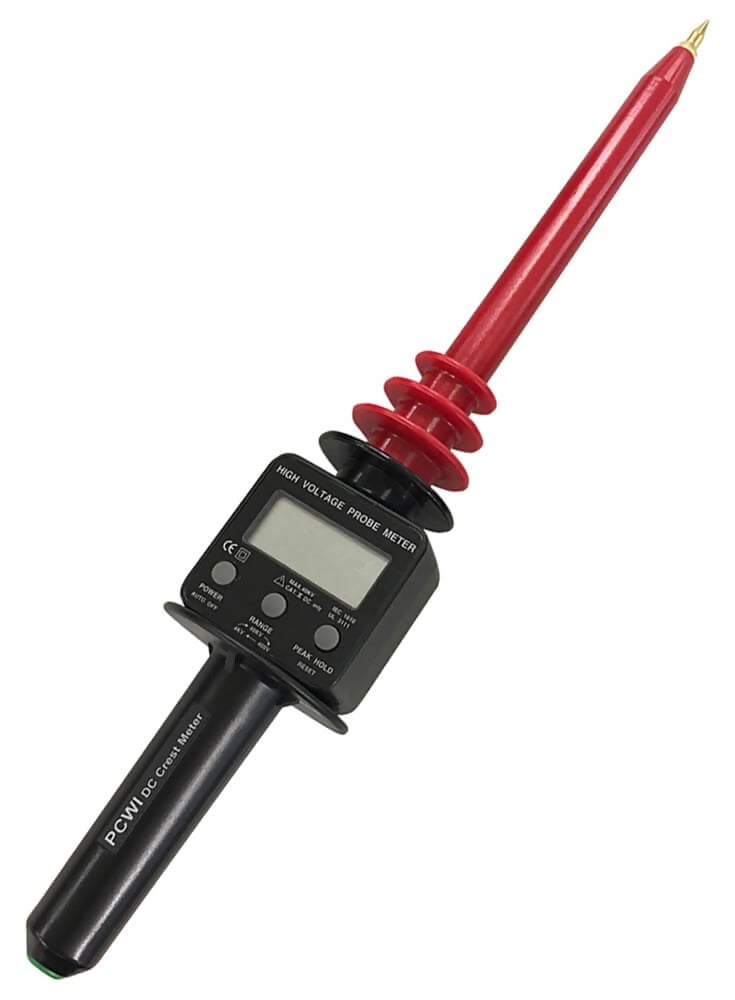

The PCWI DCCREST High Voltage Direct Current (DC) Crest Meter is used to verify output voltage and the calibration of DC Porosity Detectors and Holiday Detectors.

Kit Contents

PCWI DCCREST High Voltage Pulse Crest Meter Carry Case Instruction Manual One (1) year warranty

Features

• Used for checking & calibrating Porosity Detector output voltage
• Compact, lightweight hand-held unit
• Integral probe
• Conformance Certificate

Applications

• Verification of output voltage and set voltage of detectors when a load is applied to the probe.
• To ensure accuracy and to enable voltage adjustment (if necessary).

Specifications

Range	0 to 30kV
Resolution	10V (0 to 20kV) | 100V (0 to 30kV)
Earth lead	Separate
Dimensions	14,9" x 1,4" (380 x 80mm)
Weight	11 oz (300g)

Operation and Testing Procedure

Testing the output of the detector, and verifying the voltage on the visual display.

Setup Detector for test. Switch on Detector, and set voltage. Connect Crest Meter into system. Set the Detector's voltage using the Crest Meter's display
