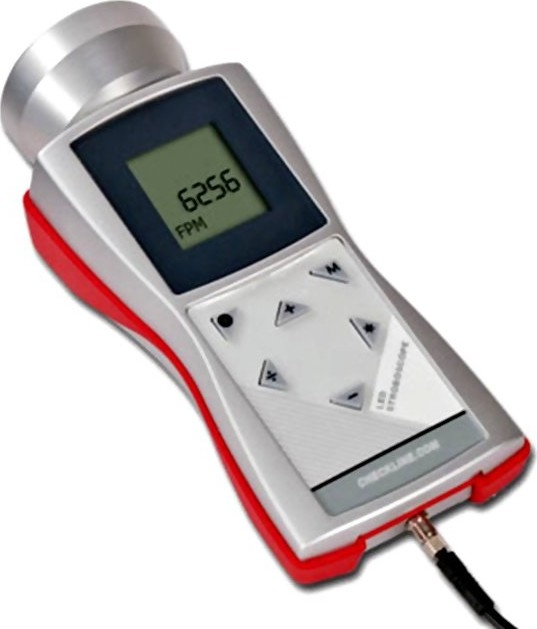

Checkline DS-2000LED-OT LED Stroboscope with Output

---

7 High-Powered LEDs produce peak brightness of 3000 Lux

---

Battery Powered LED Stroboscope with external trigger input/output option

---

Flash range of 30 - 300,000 fpm (0.5-5000 Hz)

---

IP65-rated housing is extremely water resistant

---

Flash Range: 30 - 300,000 FPM (5000Hz, max)
Flash Brightness: up to 3000 Lux (@ 6000 FPM)

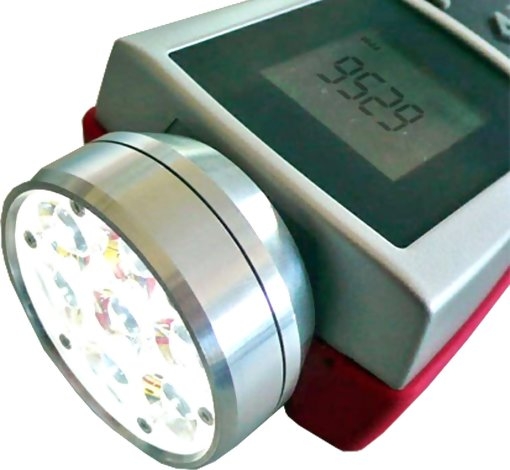

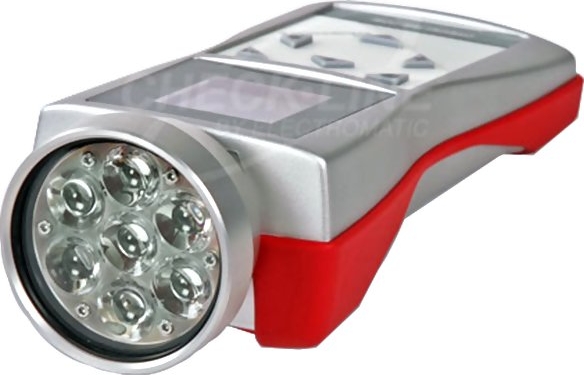

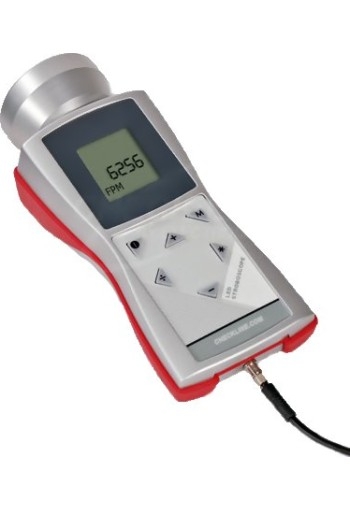

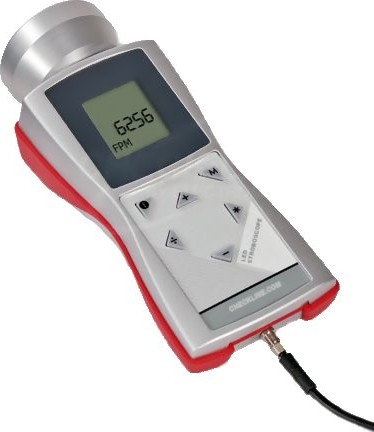

The Checkline DS-2000LED-OT LED Stroboscope is designed for maximum performance, portability and ease of use, the DS-2000LED-OT is a hand-held battery powered LED Digital Stroboscope for use in speed measurement as well as for motion analysis. It is fitted with seven (7) state-of-the-art, super-bright LEDs mounted in a precision-machined aluminum head with optimized optics, providing the highest light output of similar strobes on the market. Produces up to 3000 Lux!

The Checkline DS-2000LED-OT can operate even at the highest flash rates for up to six hours continuously on a single set of three (3) standard AA-batteries . Keypad controls adjust flash rate in single increments as well as special keys for 2X and ÷2 functions. Other user-programmable settings include flash duration, phase shift, delay and much more.

Supplied in a high-impact plastic with rubber protective sleeve providing additional protection as well as improved grip for the operator. Lifetime LEDs do not wear-out or need replacement making this product ideal for use on the factory floor, in the field or in the laboratory. Applications include ideal for speed, motion and vibration analysis, on rotating shafts, fans, cams, hi-speed motion analysis for speakers or ink-jet printing and more

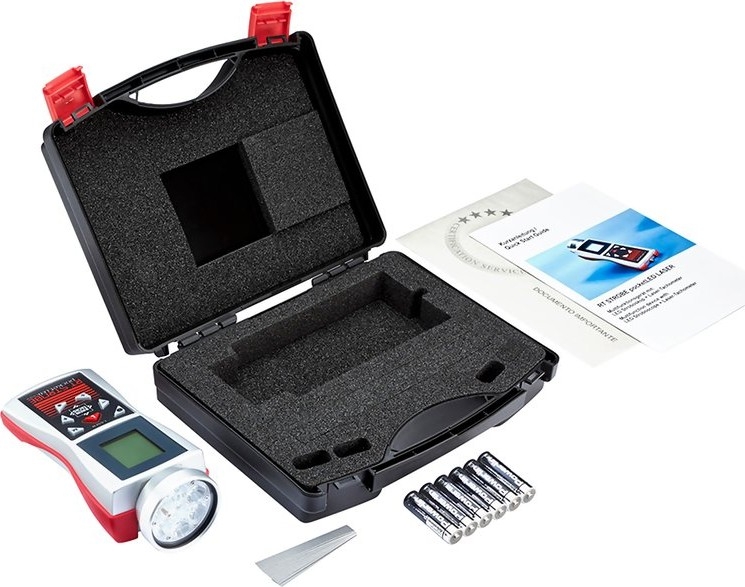

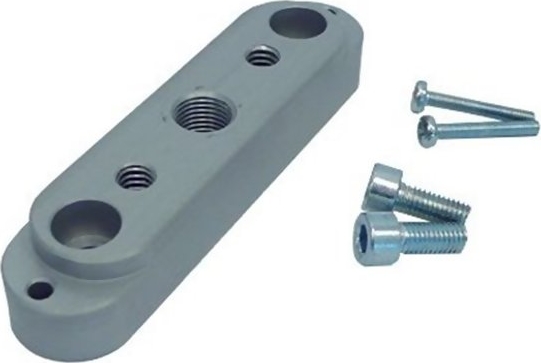

Kit Contents

---

Features

---

• Produces the brightest flash and sharpest image over the entire range to 300,000 FPM
• Lifetime LEDs do not wear-out or need replacement
• NIST-Traceable Calibration Certificate provided
• Three (3) AA-Batteries provide six hours of continuous use operation

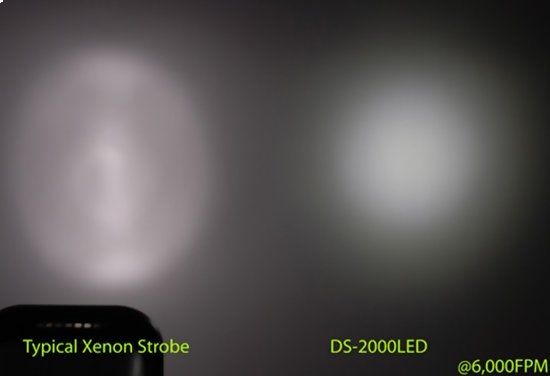

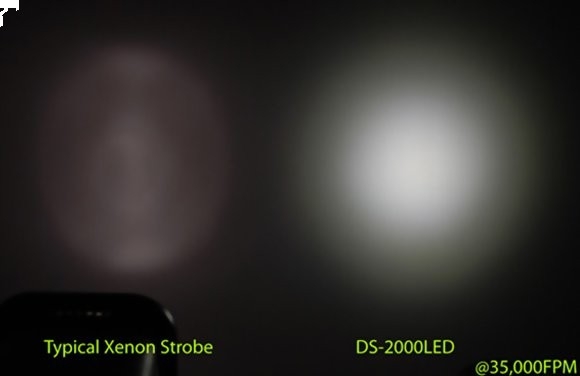

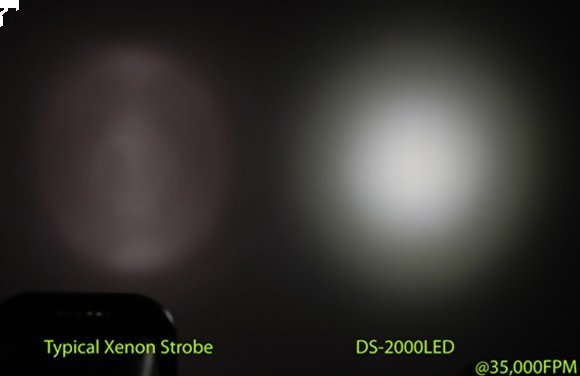

• Market-leading 3000 Lux brightness (measured at 6000 fpm at a distance of 12")
• Intuitive controls allow user to quickly adjust flash rate and shift phase

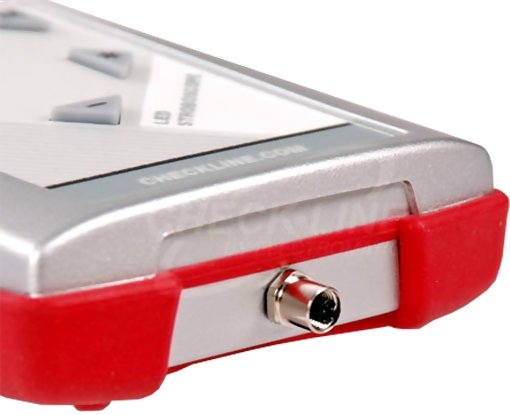

• External Trigger Input/Output is optionally available. Specify model DS-2000LED-OT
• User-selected units of Hz or FPM (Flashes Per Minute)
• 2-Year warranty
• IP 65 rated housing provides protection from water jets

Specifications

---

Frequency Range	30 - 300,000 FPM (0.5 - 5000Hz)
Flash Duration	Adjustable (1 usec up to 8522 usec)
Accuracy	± 0.02% ± 500ns
Resolution	± 0.1 FPM (30 - 999) ± 1 FPM 1000+
Brightness	3000 Lux @ 6000 FPM / 30cm (12 inch)
Protection Class	IP65 (Protection from Dust and Water Jets)
Display	LCD, multiple lines
Certification	CE (as per EU norms)
Flash Color	Approx. 6.500 K

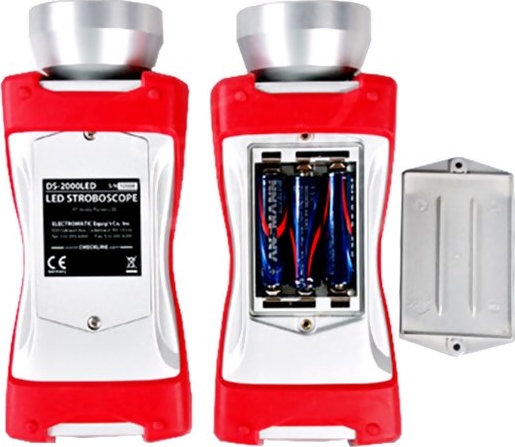

Power Supply	3x AA size batteries or 3x NiMH rechargeable batteries
Housing Material	Aluminum / ABS Heavy duty design
Dimensions	191 x 82 x 60 mm / 7.5 x 3.2 x 2.4 inch
Weight Approx	400g (including batteries)
Temperature Range	0° - 45° C / 32° - 113° F
Battery Life	NiMH: approx 11h at 6.000 FPM Disposable: approx 6 h at 6.000 FPM
Warranty	2 Years
Trigger Input	3 - 32 V, NPN + PNP Low Level: < 1 V Principle: Optocoupler, voltage-free
Trigger Output	Level: max. NPR, max 32V Pulse Length: Adjustable Maximum current: 50mA Reverse voltage protection: Yes Principle: Short-circuit and overvoltage proff transistor output to the optocoupler control, non-isolated

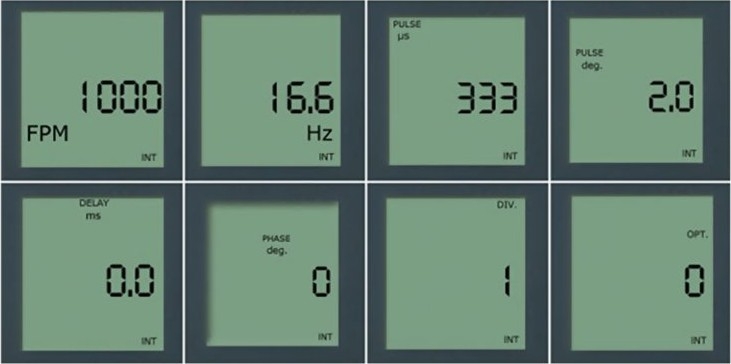

Default Settings	FPM 1000, Hz 16.6, PULSE µs 333, PULSE deg 2°, DELAY ms 0.0, PHASE deg 0°, DIVIDER 1, OPTION 0
