2 Models
BM1-KIT BM1 model (Humimeter # 11907) bundled with Scale HM-11656

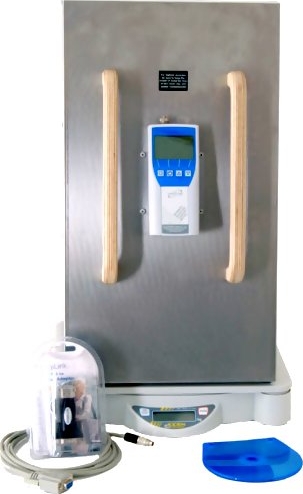

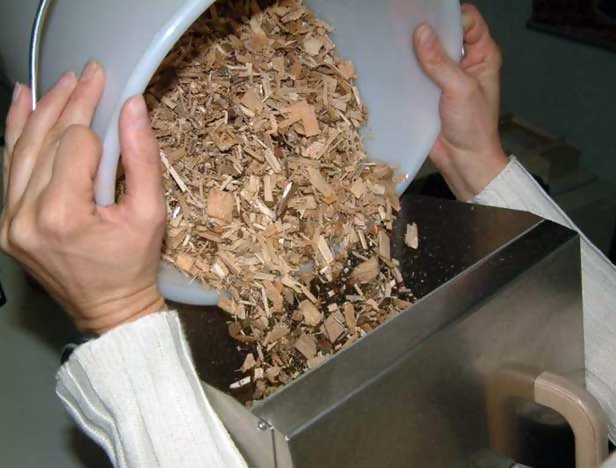

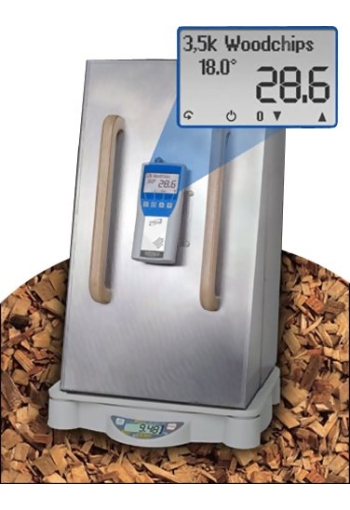

BM2-KIT BM2 model (Humimeter # 11910) bundled with Scale HM-11656 Humimeter Model BM for testing the moisture content of most types of biomass materials. Highly accurate moisture meter with automatic bulk density compensation for quick determination of water content of wood chips, barks, wooden pellets, elephant grass, wood shavings and sawdust. The entire measurement procedure is extremely easy & only takes seconds. Simply turn on the gauge, collect the desired Biomass test sample and pour into storage bin and view the water content (%-moisture) on the large backlit LCD display. The BM1 and BM2 models both include a built-in datalogger for storage of 10,000 values. The BM2 model is supplied with a serial output for downloading stored data to an external printer, PC-Software or 3rd-Party accounting programs and is supplied with PC-Software, Transfer Cable and USB Converter at no additional cost.

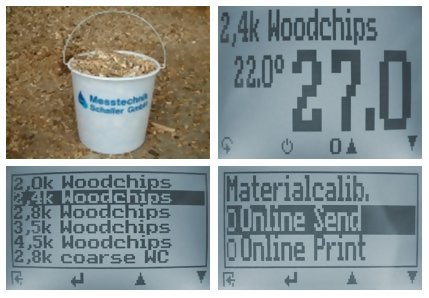

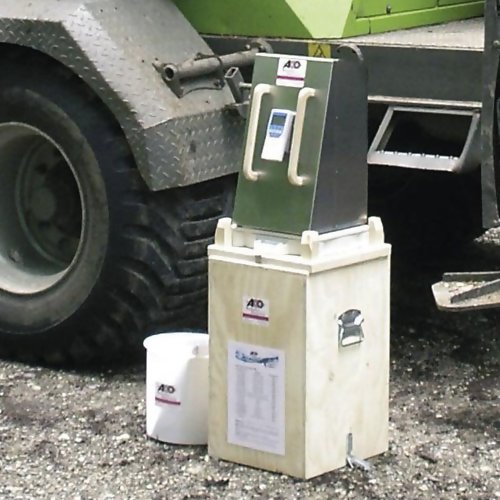

Photo Gallery
Features
- Automatic self-calibration re-assures user of reliable measurement results
- Take measurement in seconds without prior treatment of samples
- Bulk density compensation by using a precision electronic balance (scale)

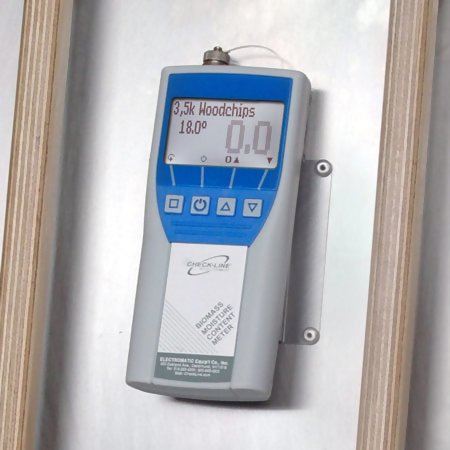

- Large Backlit LCD Display with over-sized numbers makes for easy viewing
- Supplied with 3-1/2 Gallon (13 liter) plastic bucket for collection of testing sample
- Rugged stainless steel Storage Bin is integrated with gauge providing an all-in-one measuring system
- Gauge menus in English, German, French, Italian, Spanish and Russian

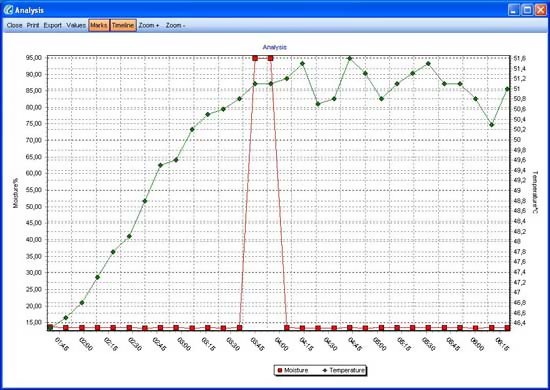

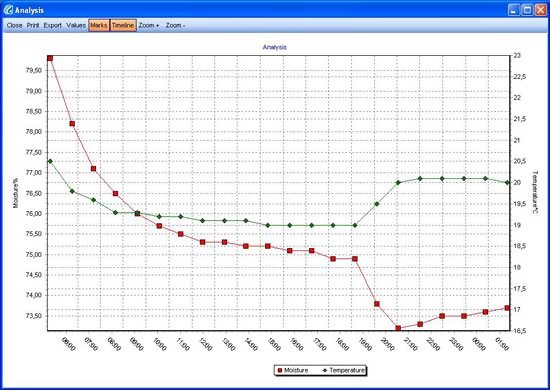

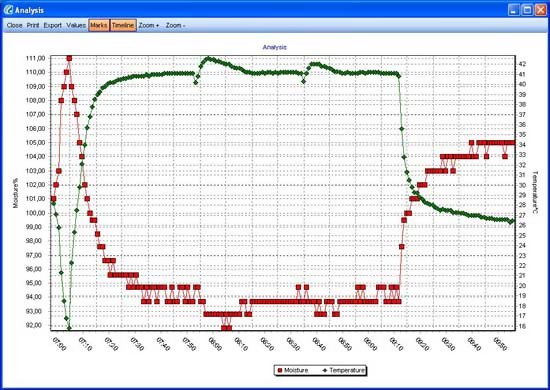

- BM2 includes datalogger for data transfer to PC or Printer documenting moisture measurements, date, batch & temperature
- Calibration certificates provided for both BM2 and Precision Scale at no extra cost
- Includes built-in temp probe for automatic temperature compensation for highest accuracy under all conditions
- 2 Year Warranty
- Optional Wireless Kit offered for BM2 for cable-free transfer of data. (Details below)
Built-In Material Calibrations
| Name Of Calibration Curve | Material Under Test | | 2.0k Woodchips | Woodchips according to P16 | | 2.4k Woodchips | Woodchips according to P16 | | 2.8k Woodchips | Woodchips according to P16 | | 3.5k Woodchips | Woodchips according to P16 | | 4.5k Woodchips | Woodchips according to P16 | | 2.8k Coarse WC | Woodchips according to P45 | | 3.5k Coarse WC | Woodchips according to P45 | | 2.8k Fresh WC | Fresh woodchips | | 3.5k Fresh WC | Fresh woodchips | | 2.4k Barks | Barks | | 2.8k Barks | Barks | | 5.0k Pellets | Pellets made of wood | | 1.0k Shavings | Shavings | | 1.3k Sawdust | Sawdust | | 2.0k Sawdust | Sawdust | | 1.0k Miscanthus | Miscanthus chopped
Elephant Grass | | Empty | For customer calibration | | Empty | For customer calibration | | Reference | To test the BM2
Not for use of measuring the moisture! |
| Name Of Calibration Curve | Filing Quantity | Measuring Range Limit | | 2.0k Woodchips | 2.00kg | 28% | | 2.4k Woodchips | 2.40kg | 35% | | 2.8k Woodchips | 2.80kg | 40% | | 3.5k Woodchips | 3.50kg | 50% | | 4.5k Woodchips | 4.50kg | 60% | | 2.8k Coarse WC | 2.80kg | 50% | | 3.5k Coarse WC | 3.50kg | 50% | | 2.8k Fresh WC | 2.80kg | 50% | | 3.5k Fresh WC | 3.50kg | 50% | | 2.4k Barks | 2.40kg | 35% | | 2.8k Barks | 2.80kg | 50% | | 5.0k Pellets | 5.00kg | 14% | | 1.0k Shavings | 1.00kg | 20% | | 1.3k Sawdust | 1.30kg | 28% | | 2.0k Sawdust | 2.00kg | 50% | | 1.0k Miscanthus | 1.00kg | 25% | | Empty | | | | Empty | | | | Reference | | |
Dimensions
Specifications
| Measuring range | 5 to 60% water content depending on material | | Resolution | 0.5% water content (0.5 °C or °F) | | Accuracy | +/1.5% | | Measurement Technique | Capacitance, Click for more info | | Sample volume | 13 liter | | Menu languages | English, German, French, Italian, Spanish and Russian | | Housing | Gauge: Plastic with IP40 rating
Storage Bin: Stainless Steel | | Display | Graphic LCD display with backlight (128 x 64 pixel) | | Bulk Density Compensation | With HM-11656 Precision Scale | | Temp Compensation | Automatic in °C or °F using built-in temperature probe | | Datalogger | 10,000 moisture measurements plus date, batch & temperature | Data Interface
(BM2 only) | RS-232, 9600/8/N/1
(supplied with transfer cable & USB converter) | | Operating Temp | 32°F to 104 °F (0 °C to 40 °C) | | Storage Temp | –4 °F to 140 °F (–20 °C to 60 °C) | | Power | 4 x 1.5 Volt AA Alkaline batteries | | Battery Life | 900 measurements
(with auto-off after 6 minutes of non-use) | | Dimensions | 19.3" x 11.4 x 11.8 (490 x 290 x 300 mm) | | Weight | 11.60 lbs. (5.3 kg) including batteries |

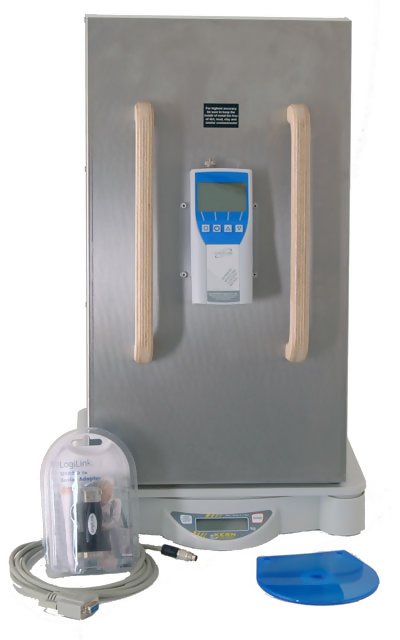

Complete Kit

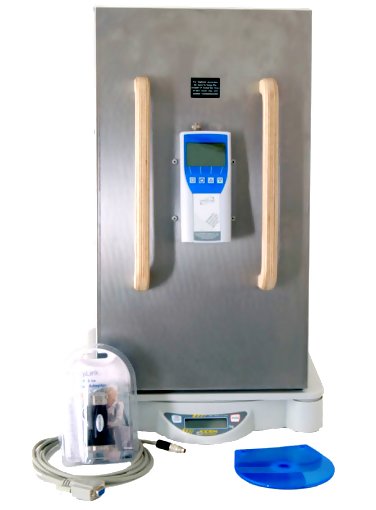

- The BM1 & BM2 Biomass moisture meter is delivered as a complete kit including:
BM Biomass Moisture Meter with integrated Metal Bin - Plastic bucket
- Batteries
- User manual
- Data transfer cable (BM2)
- USB converter (BM2)
- Software (BM2)

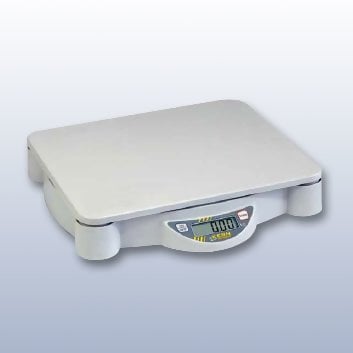

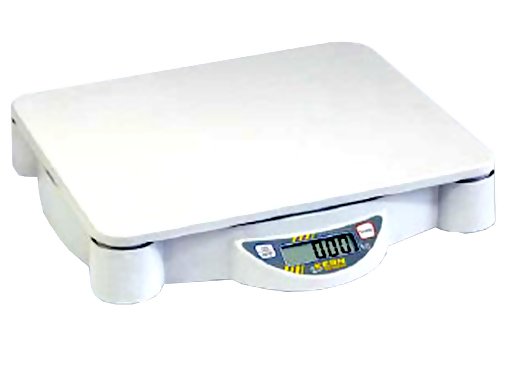

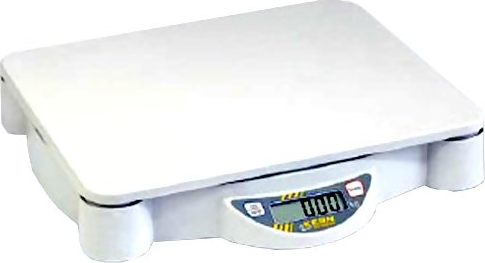

Scale Shown (supplied in BM2-KIT version) Delivery of the digital scale includes the following: - Digital scale; 10.00 Kg
- Batteries
- 115 VAC power supply unit
