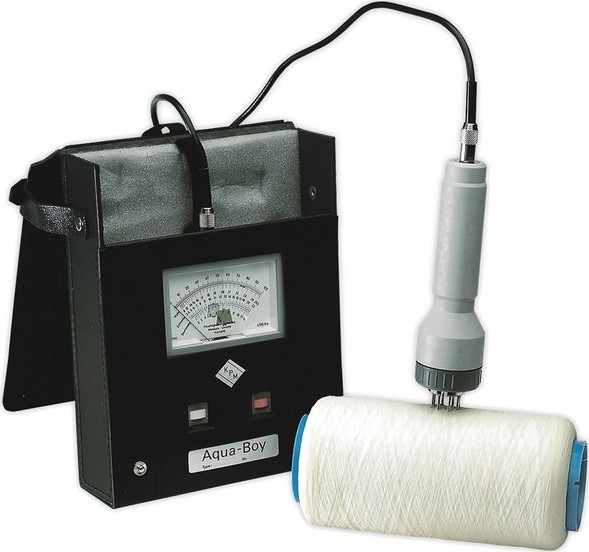

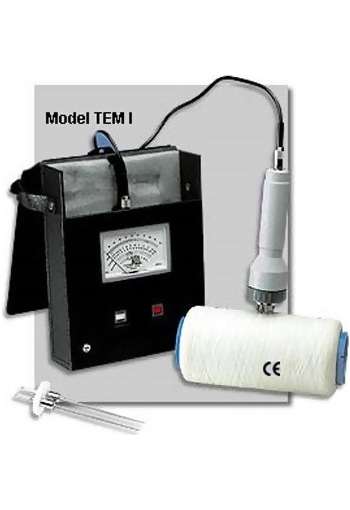

The Aqua-Boy TEM-1 Textile Moisture Meter determines the residual moisture in yarn bobbins, fabric folls, filaments, fiber flocks, etc.

The measuring principle of the Aqua-Boy TEM-1 Textile Moisture Meter is based on the electrical conductivity of the material which always bears a fixed relation to the moisture. All changes in resistance inside the measuring ranges of interest are sufficiently pronounced to ensure a high degree of accuracy for the readings obtained with the TEM-1.

The electrical indicating accuracy of the TEM-1 is +/- 0.1% whilst the reproducibility is +/- 0.2% referred of the absolute readings on the meter dial

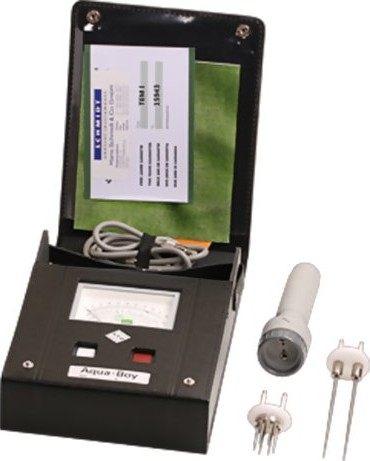

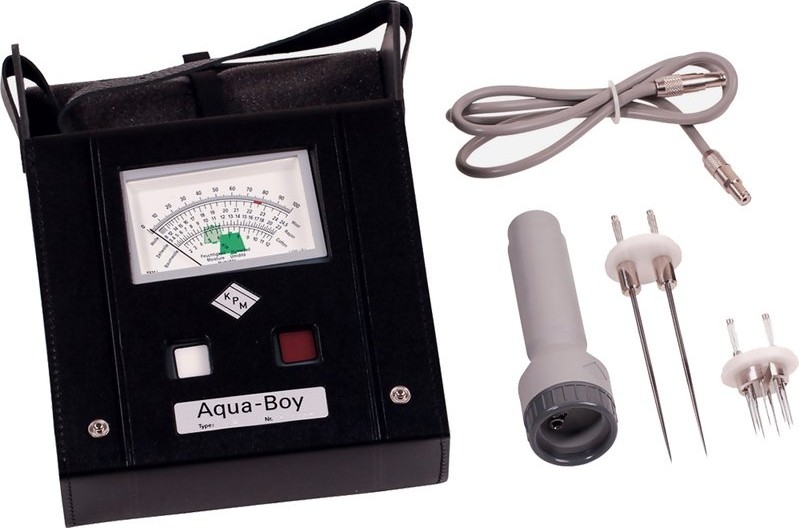

Kit Contents

• Aqua-Boy TEM-1 Textile Moisture Meter
• Electrode holder 204
• Electrode holder 205
• Electrode holder 207
• Connecting cable 200
• Carrying case

Features

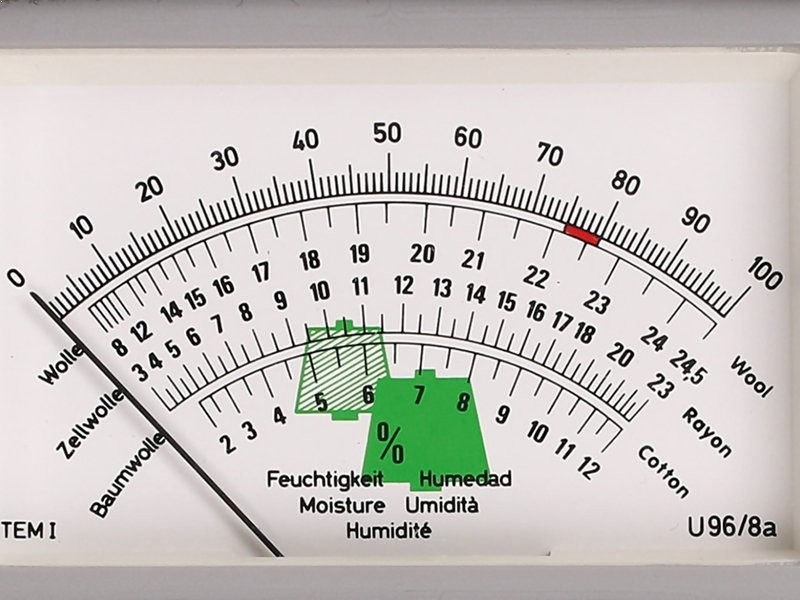

• Multiple scale for direct readings for wool, rayon and cotton
• Easy to use for many applications
• Portable, battery-operated
• 0 -100 scale for comparison tables used for other materials like Polyester, Polyamid and many material mixtures
• High accuracy and repeatability

Specifications

Electrodes

205 Needle electrode for yarns, cross-wound bobbins and hanks (needle length 25 mm)

207 Needle electrode for yarns, cross-wound bobbins and hanks (needle length 100 mm)

209 Stab electrode for textiles in sacks and rolls (needle length 325 mm)

209 BSM Cotton electrode, especially for measuring cotton and similar products in sacks or pressed bales; piercing point: app 75 mm (total length app. 250 mm)

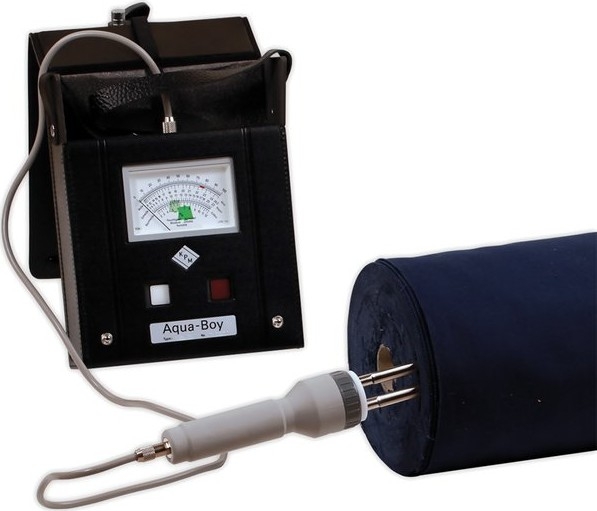

210 Knife electrode for rolls or bales of textile fabric (knife length 110 mm)

211 Roller electrode for running webs of textiles (roller 27 mm Ø)

212 Continuous run electrode for yarn hanks and single filaments (roller 16 mm Ø)

213 Surface electrode for fabrics (surface 23 mm Ø)

299 Calibration electrode with a fixed calibration value
