WTT-HD Heavy Duty Wire Terminal Tester

Price: $2,735.00
Heavy-Duty Wire Terminal Tester Pull Tester
Range: 0-220 lbs / 0-100 Kg / 0-1000N
Measures in "Continuous" or "Peak" mode

WTT-HD Heavy Duty Wire Terminal Tester

Accurately measure the pull or “pull-off” force on most soldered or solder-less wire terminals, crimped connectors and similar wire terminations.

The WTT-HD system is an easy to solution suitable for a vast majority of terminal testing applications. The system consists of the following:

Test Stand: SH-220
Force Gauge: DPS-220

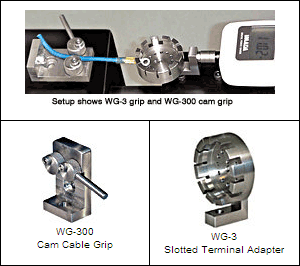

Slotted Terminal Grip: WG-3
Cam Cable Grip: WG-300




line
reddot Features
line
bluedot Real time and peak mode (selectable)
bluedot 220lb Capacity
bluedot Includes NIST Traceable calibration certificate
bluedot lb, kg & Newton units are selectable
bluedot 2 Year Warranty
bluedot For wires up to 8mm OD

line
reddot Specifications
line
Measuring Range0-100 Kg / 0-220 lbs / 0-1000N
Accuracy±0.2% ±1 LSD
Resolution0.01 Kg / 0.1 lbs / 0.1 N
Maximum Travel7.5"
Overload Protection200% of F.S., Display flashes beyond 105% of F.S.
OutputRS-232, Mitutoyo Digimatic and ±1 VDC analog output
PowerInternal NiCad batteries or AC adapter
Warranty2 years

line
reddot Buy Now
line


Please select the items you would like to purchase then click "Add to Cart"
Products:

WTT-HD Heavy Duty Wire Terminal Tester - Model




  • Manufactured by: Imada
