TT-QC Digital Torque Tester

Price: $995.00 to $1,495.00
Bench Mount Digital Torque Tester for quick tool verification
3 ranges up to 130 lb-in
Ranges up to 1000 lb-ft
Eight selectable engineering units: oz-in, lb-in, lb-ft, N-m, cN-m, Kgf-cm, gf-cm, Kgf-m

TT-QC Digital Torque Testers

Simple bench mount digital torque tester for quick tool verification

Applications

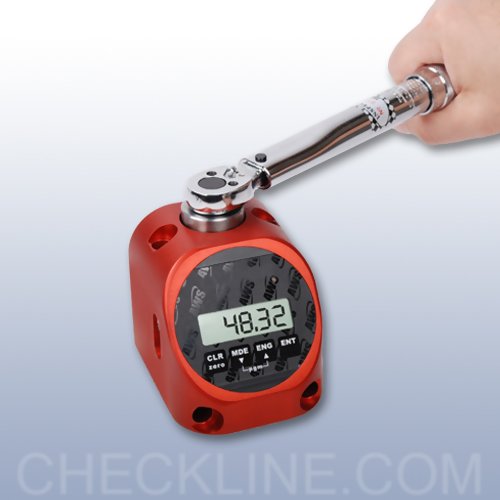

For testing click, dial, and digital wrenches, plus most power tools including impulse and electric drivers.

Our smallest and lowest cost bench mount torque tester to date, the TT-QC Quick Check is perfect for quick equipment verification right at your workstation. Small and light enough to use anywhere, this unit can still be used alongside any metrology grade tester.

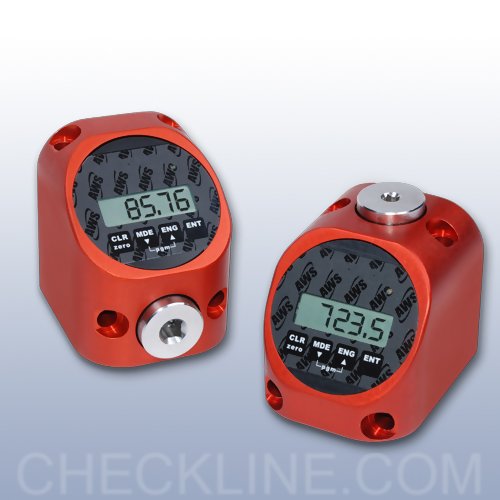

A unique rotating display (optional) and dual bolt pattern allow the tester to be used in both horizontal and vertical configurations, and make switching between the two modes almost effortless. It is ideal for switching between pistol grip and inline tool checking.

The TT-QC takes just seconds to change test parameters, and works in either one button or automatic modes of operation. Reliability and ease of use are enhanced with features such as: Sign Lock, Peak Blanking, Auto Clear.


line
reddot Features of the TT-QC Digital Torque Tester
line

bluedot Bidirectional accuracy of ±1% of indicated reading
bluedot Eight (8) selectable engineering units: oz-in, lb-in, lb-ft, N-m, cN-m, Kgf-cm, gf-cm, Kgf-m
bluedot 3 modes of operation: Track, Peak and 1st Peak
bluedot Rugged Aluminum Housing
bluedot NiMH rechargeable batteries provide 8-10 hours continuous use
bluedot Includes NIST Calibration Certificate

line
reddot Photo Gallery for the TT-QC Digital Torque Tester - click any photo to enlarge
line

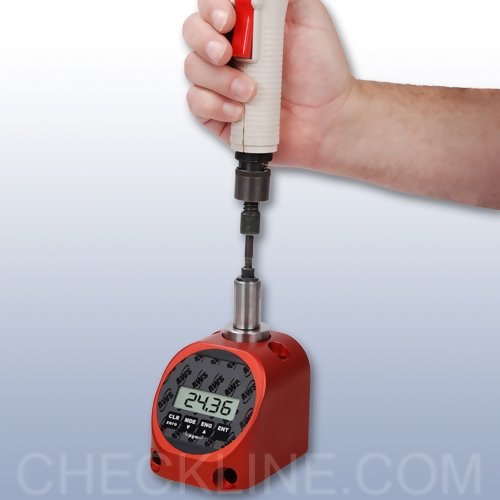

TT-QC Testing Electric torque control driver, shown with Joint-Simulator, included with 1/4" and 3/8" models

line
reddot Torque Ranges
line
ModelRangeDrive
Size		Run-Down
Fixture
TT-QC-100z-1/4
10 - 100 Oz-in
1/4"Included
TT-QC-10i-1/4
1.0 - 10 Lb-in
1/4"Included
TT-QC-200z-1/4
20 - 200 Oz-in
1/4"Included
TT-QC-25i-1/4
2.5 - 25 Lb-in
1/4"Included
TT-QC-50i-1/4
5.0 - 50 Lb-in
1/4"Included
TT-QC-100i-1/4
10 - 100 Lb-in
1/4"Included
TT-QC-150i-1/4
15 - 150 Lb-in
1/4"Included
TT-QC-250i-3/8
25 - 250 Lb-in
3/8"Included
TT-QC-500i-3/8
50 - 500 Lb-in
3/8"Included
TT-QC-750i-3/8
75 - 750 Lb-in
3/8"Included
TT-QC-1000i-3/8
100 - 1000 Lb-in
3/8"Included
TT-QC-100f-1/2
10 - 100 Lb-ft
1/2"Optional
TT-QC-150f-1/2
15 - 150 Lb-ft
1/2"Optional
TT-QC-250f-1/2
25 - 250 Lb-ft
1/2"Optional
TT-QC-750f-3/4
75 - 750 Lb-ft
3/4"Optional
The available engineering units of measurement on the TT-QC Torque Testers are oz-in, lb-in, lb-ft, N-m, N-cm, Kgf-m, Kgf-cm, gf-cm.

line

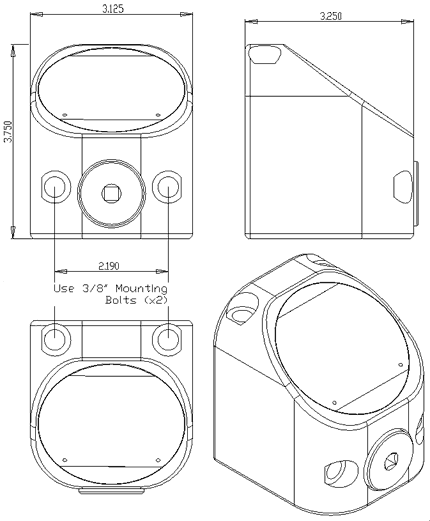

reddot Dimensions of the TT-QC Digital Torque Tester
line dimensions

line
reddot Related Products for the TT-QC Digital Torque Tester
line

TT-3000 Series
Torque Tester		related

bluedot Bidirectional accuracy of ±0.5% of indicated reading

___________________________________________


RDF
Joint Simulators / Run Down Fixtures		related

bluedot Required for accurate torque measurement for power-driven torque controled tools (electric, hydraulic or pneumatic)


line
reddot Specifications of the TT-QC Digital Torque Tester
line
Calibrated Range10-100% Full Scale, bi-directional
Accuracy±1% of indicated (within calibrated range)
Resolution4 Active Digits
Overload Protection200% Full Scale bi-directional
Operating ModesTrack, Peak, 1st Peak
FilteringSelectable; 125Hz, 250Hz, 500Hz, 1000Hz, 1500Hz and 2000Hz
Memorydata storage of up to 999 readings
Data OutputRS-232
DisplayXXX
Alarm LimitsPanel Mounted LED for Visual Alarm Limits
PowerInternal NiMH battery, 9V Charger (included)
WeightAproximately 3lbs depending on transducer
Operating Temp32 - 120 °F (0-50 °C)
Warranty1 Year
Calibration CertificateIncludes NIST Traceable calibration certificate with data
Standard AccesoriesJoint Simulator for 1/4" & 3/8" drives, AC adapter/Charger
Optional AccessoriesJoint Simulators for 1/2", 3/4" & 1" Transducers

line
reddot Downloads for the TT-QC Digital Torque Tester
line

newsPDF Data Sheet Click here to download
