TSB100 Manual Test Stand

Manual Lever Operated Test Stand
100 lb Capacity
6" (152 mm) Maximum Travel
Price  $775.
Manual Test Stand

The lever operated Force Measurement Test Stand Model TSB100 is an economical solution for quick-action tensile testing and compression testing of up to 100 lb of force. Constructed of rugged components, this test stand is durable enough for the factory floor, yet precise enough for laboratory environments.

line
reddot Features of the TSB100 Manual Test Stand
line
bluedot Loading lever can be positioned in 30º increments for ease of peration
bluedot Precision ground rack for smooth precision motion
bluedot Mountinig holes for bench mounting
bluedot Low force friction brake
line

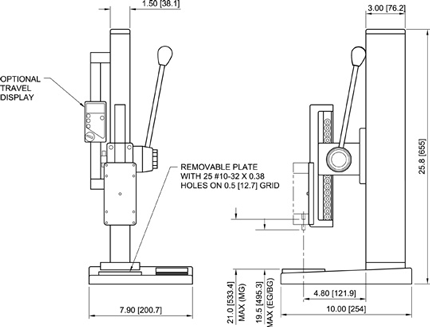

reddot Dimensions of the TSB100 Manual Test Stand
line dimensions
line
reddot Specifications of the TSB100 Manual Test Stand
line
Capacity 100 lb (500 N)
Stroke 6" (152 mm) without travel stops
2.75" (69.9 mm) with travel stops
Dimensions Refer to dimensions above
Weight 12 lb (5.4 Kg)
Compatible Gauges MG and Series 5
Warranty 3 years
line
reddot Related Products for the TSB100 Manual Test Stand
line
Series-5
Advanced Digital Force Gauge - Model M5		 related

bluedot High-speed 7,000 Hz peak sampling rate

bluedot USB, RS-232, Mitutoyo, and analog outputs
___________________________________________

MG
Economical Digital Force Gauge - Push Pull Gauge		 related

bluedot User-selected units of Pounds, Kilograms or Newtons

bluedot 3 Year Warranty
line
reddot Download for the TSB100 Manual Test Stand
line
manual  Instruction Manual  Click here to download
