TSA723 Miniature Measuring Amplifier for Strain Gauge Sensors

Miniature Measuring Amplifier for Strain Gauge Sensors
voltage output 0 to ±10V; optional current output 0-20mA or 4-20mA
Miniature Measuring Amplifier for Strain Gauge Sensors

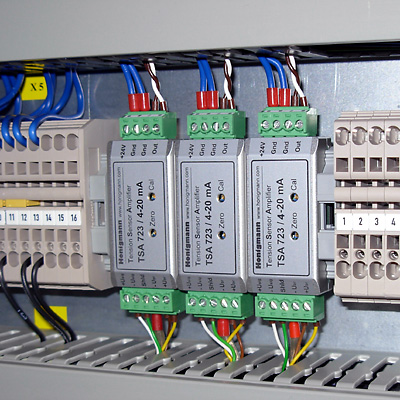

The miniature measuring amplifier TSA723 satisfies with a compact and rugged design. The housing fits optimally into the arrangement of terminal blocks in a control cabinet.

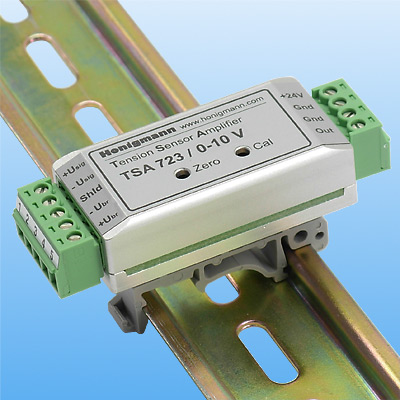

For mounting with double-faced adhesive tape or for the use in laboratories the measuring amplifier is available without rail-mounting adapter.

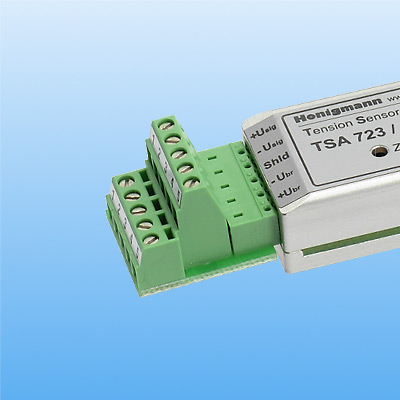

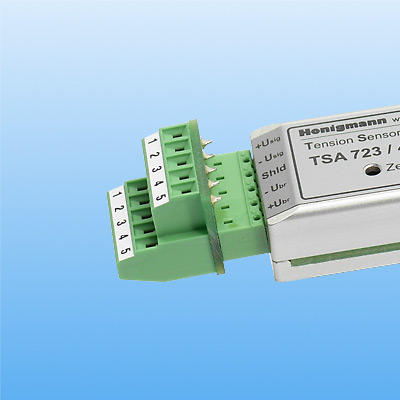

Connection is effected by plugs with screw terminals. This offers a very efficient wiring possibility.
line
reddot Features
line
bluedot voltage output 0 to ±10V; optional current output 0-20mA or 4-20mA
bluedot ZERO and CAL adjustment by multi-turn potentiometer
bluedot input power supply of 24V DC, reverse-polarity protected
bluedot compact and robust aluminium housing
line

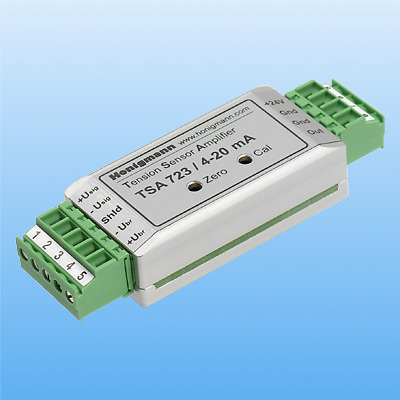

reddot Photo Gallery - click any photo to enlarge
line


line
reddot Download
line
manual  Data Sheet  Click here to download
