TS621 Strain Gauge Amplifier

Tension Indicator

Provides an accurate tension display for all Check-Line sensors on a bright LED display

Strain Gauge Amplifier

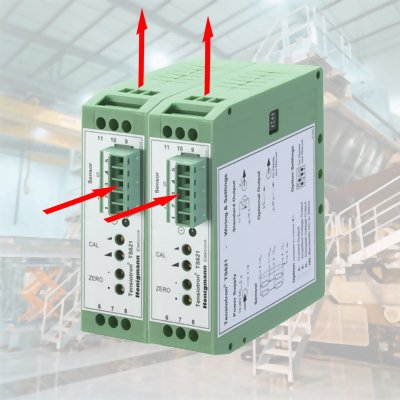

The TS621 Electronic Strain Gauge Amplifier provides outstanding signal conditioning capabilities suitable for use with most strain-gauge-based sensors. It is supplied in a DIN-Rail housing for convenient snap-in installation.

TS621 performance features include galvanic isolation, regulated power supply for the sensor, coarse and fine calibration adjustments, screw terminals for power and analog outputs, with a removable terminal block for the sensor input.

Features

Designed for use with a wide range of strain-gauge-based force, load and tension sensors

Galvanic Isolation minimizes the chance for signal interference, including ground faults

0-10VDC analog output

Provides accuracy of ±0.1%

Operating input power supply of 19-36 VDC, non-regulated

Includes excellent overload and reverse-polarity protection

Provides a well-regulated power supply of 10 VDC for sensor

Options

In standard version the measurement amplifier offers a voltage output. The TS 621 can be extended with one additional output.
	Option D 2nd voltage output 0 to ±10V • selectable cut-off frequency • 0.5 - 5 - 10 - 20 Hz • setting by DIP-switches • click to view animation

Tension signal with a dynamic part (frequency approx. 3Hz) Cutoff Frequency = 5Hz
	Option X 2nd voltage output 0 to ±10V • Additional amplification, selectable 2-, 3-, 4- or 5-times • filtered (cut-off-frequency 25Hz) • setting by DIP-switches

	Option A Additional current output • bipolar 0 to ±20mA • unipolar 0 to +20mA • unipolar 4 to +20mA • setting by DIP-switches

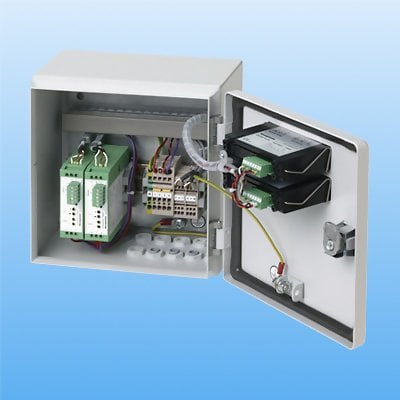

Photo Gallery - click any photo to enlarge

Related Products

RFS On-Line Tension Sensor
Resolution of 0.1% and better Rugged stainless steel housing is environmentally sealed Overload protection up to 800%

___________________________________________

DPM502 Digital Tension Indicator
Selectable “damping function” reduces display fluctuations 24V DC power supply with galvanic isolation

___________________________________________

MU621 Tension Indicator/Amplifier Console
for strain gauge sensors 1 to 4 measuring channels

___________________________________________

HCC-Easy
Data Transfer & Analysis Program For Honigmann Tension Sensors

Real time display of measured values graphically and digitally, indicating the actual value in tension units

Export data in ASCII format

TS621HD
High Dynamic Amplifier

Intended for amplification of high frequency sensor signals

Large gain bandwidth; DC to 20kHz

24V DC power supply

Galvanic Isolation

Specifications

Sensor Types	Strain Gauge, full bridge
Impedance Range	Minimum 150 Ohms
Overall Accuracy	0.1% (any portion of the range)
Power Source Required	19 to 36 VDC (24 VDC, typical) Optional: 9 to 18 VDC (12 VDC, typical)
Power Supply to Sensor	10 VDC, regulated (±5 VDC referenced to ground)
Calibration Range	38 to 580%
Output from TS621	0-10 VDC (standard)
Optional Outputs	Current (option A), 0-20/4-20 mA, user set Amplified voltage (option X),2X, 3X, 4X, 5X amplification, user set Damped voltage (option D) at 4 seconds
Isolation between I/O	Galvanic Isolation using integrated DC-DC converter between input power & output signals
Power Consumption	100 mA @ 24 VDC
Operating Temperature	32 to 140 °F (0 to 60 °C)
Connector Types	Screw Terminals
Dimensions	3.1" (H) x 1" (W) x 3.7" (D) (80 x 25 x 95mm)
Weight	4 ounces (100 grams)
Mounting Style	DIN-Rail Snap-In Installation (DIN-rail not provided)
