TI-UMX2 Underwater Ultrasonic Thickness Gauge

Price: $3,495.00
UNDERWATER Ultrasonic Coating & Wall Thickness Gauge with datalogging
Range:
0.025 - 9.999 inches
0.63 - 254.0 mm
Resolution: .001" (0.01 mm)
Rated for dive depths up to 1000 ft (300 meters)

Underwater Ultrasonic Thickness Gauge


Measuring Range in Steel
0.025 - 19.99 inches
0.63 - 508.0 mm

The new CHECK-LINE TI-UMX2 Underwater Wall Thickness Gauge accurately measures wall thickness and the extent of corrosion of all metals at depths of up to 1000 feet (300 Meters). Also measures Coating Thickness.

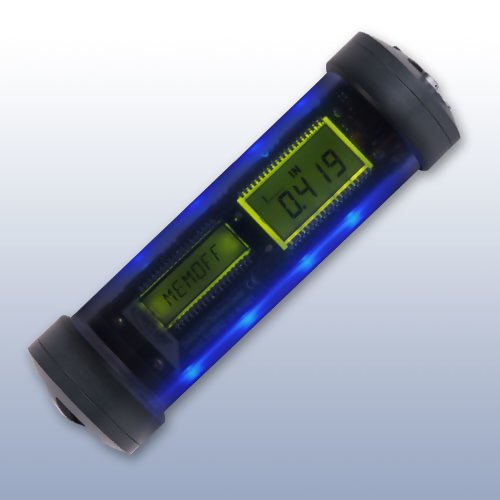

A back-lit LCD display and illuminated housing allow divers to easily read measurements in dark water.

An over-sized control button and clever menu structure allows easy gauge setup and navigation through menus above or below water even when wearing thick gloves.

The TI-UMX-2 can store up to 5000 readings including A-Scan Waveforms and settings for each individual measurement. There are 2 file structure options; sequential with auto identifier and alpha numeric grid (row/column) format. The UMX-2 can transfer data and configuration settings to a PC using our DataComm software. (Software and transfer cable included)

Velocity Settings
The TI-UMX2 has 8 preset velocities and 1 custom velocity allowing the user to customize it for specific applications, or to tune the calibration to be optimized for a specific type of material. The list of preset velocities are as follows:

  • 1. Aluminum 2024
  • 2. Stainless Steel 302
  • 3. Steel4340
  • 4. Iron
  • 5. Cast Iron
  • 6. PVC
  • 7. Polystyrene
  • 8. Polyurethane
  • 9. Custom 1

line
reddot Features
line
bluedot Housing is rated for dive depths up to 1000 ft (300 meters) with backlit display
bluedot Resolution of 0.001" (0.01 mm) user-selected units of inch or mm
bluedot Includes built-in datalogger for 5000 readings, settings and waveforms in sequential or "grid" (row/column) format
bluedot Automatic probe recognition and auto zero
bluedot Supplied with FREE NIST-Traceable Calibration Certificate
bluedot Supplied with data transfer cable and FREE data analysis software
bluedot Measure modes include: Pulse-Echo, Pulse-Echo w/ Coating, Echo-Echo and Triple Echo
bluedot CE-certified with 3-Year Warranty
bluedot Measures BOTH Wall and Coating Thickness
bluedot Both Dual Element and Single Membrane Probes are offered
bluedot Standard Probe supplied is 1/2"-5MHz HD-Coating, Underwater p/n T-074-2906
bluedot All settings for gauge and datalogging can be done via software if desired
line

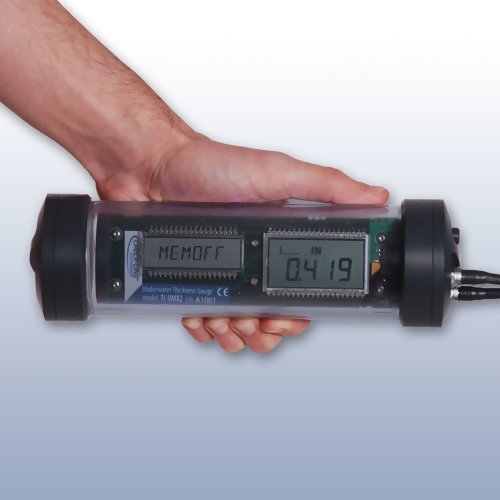

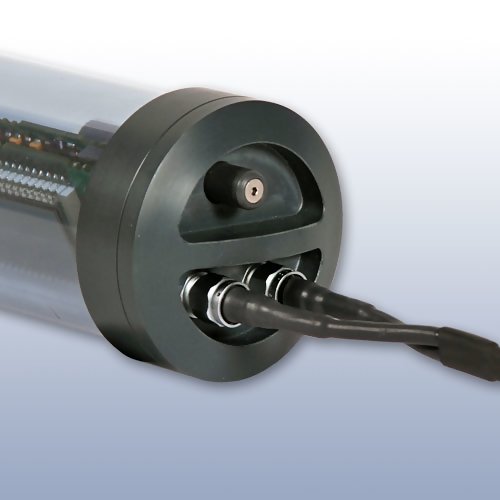

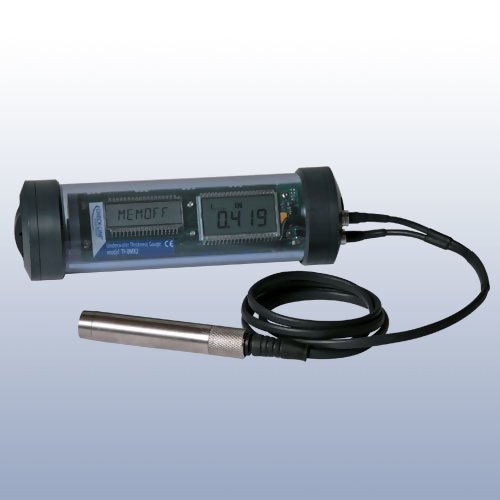

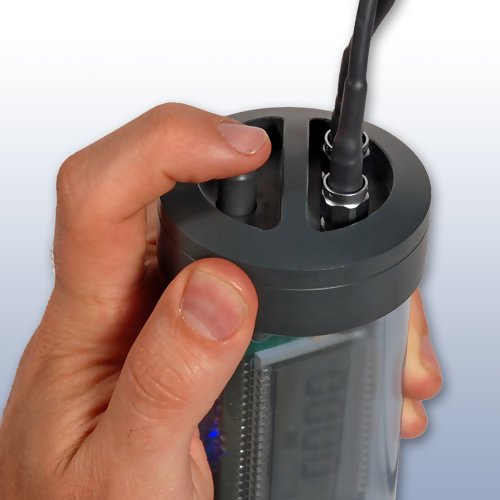

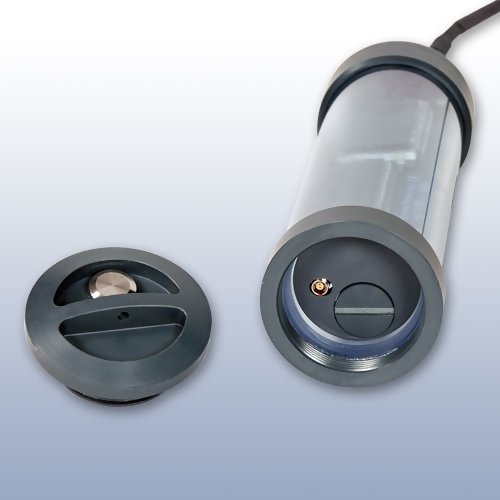

reddot Photo Gallery - click any photo to enlarge
line

line
reddot TI-UMX2 Menu Structure
line

Use of single button and clever menu structure permits easy navigation through all settings when underwater
*Highlighted fields indicate default settings.


line
reddot Specifications
line
Range in Steel
0.025-19.99" (0.63 - 508.0 mm)
Note: exact range depends on probe used
Resolution
.001" (0.01 mm)
Display
4½ - Digit, 0.5" Backlit LCD
Velocity Range
6,500-33,000 ft./sec (2000-10,000 m/sec.)
Probe
STANDARD: Underwater Type, 1/2"-5MHz Dual-Element HD-Coating Probe
OPTIONAL: Underwater Type, 1/2"-3.5MHz Dual-Element HD-Coating Probe
MEMBRANE: Inquire
Cable
4 ft. (1.2 m) waterproof cable with non-polarized, quick-disconnect connectors. Optional lengths up to 50 ft. (15 m).
Temp. Limits
Ambient: -20 to 120° F (-30 to 50° C)
Material: -0 to 200° F (-20 to 100° C
Special high temperature probes are optionally available.
Battery Type
Two AA batteries
Battery Life
200 hours
Weight
2.8 pounds
Size
3.5 x 7.5 x 2.75"
(63.5 W x 190.5 H x 69.85 D mm)
Accessories Included
Probe/cable assembly. 4 oz. bottle of coupling fluid, NIST Calibration Certificate, 2 AA batteries, operating instructions, hard-plastic carrying case.
Warranty
Gauge: 3 Years
Probe: 90 Days
Operating Modes
PE: Pulse-Echo
PECT: Pulse-Echo Coating
EE: Echo-Echo
EEE: Triple Echo TCG
line
reddot Complete Kit
line
The TI-UMX2 is supplied as a complete kit with the gauge, 4 oz. bottle of coupling fluid, AA batteries, NIST-Traceable Calibration Certificate, data transfer software, serial output cable with USB converter and spare gasket & lube kit including Operating Instruction Manual - all in a foam-fitted carrying case.

complete kit
line
reddot Download
line
manual Instruction Manual  Click here to download PDF
