TI-45N Ultrasonic Thickness Gauge

Price: $1,295.00
Economical gauge for measuring on a variety of materials
Range:
0.040 - 8.00 inches
1.00 - 200.00 mm
Resolution: .001" (0.01mm)
Datalogging: NO

TI-45N Ultrasonic Thickness Gauge


Measuring Range in Steel
0.040 - 8.00 inches
1.00 - 200.0 mm

The  TI-45N Ultrasonic Thickness Gauge accurately measures wall thickness and the extent of corrosion of all metals, ceramics, glass and most rigid plastics - from only one side!

The attractive, ergonomic housing design is extremely compact, lightweight and rugged. The TI-45N Ultrasonic Thickness Gauge fits comfortably in the palm of your hand and incorporates a back light that illuminates the LCD in poorly lit areas.

line
reddot Features of the TI-45N Ultrasonic Thickness Gauge
line
bluedot Resolution of 0.001" (0.01mm)
bluedot Extremely compact & lightweight
bluedot Switch-selectable units - inches or mm
bluedot Built-in calibration test plate
bluedot Quick display update with last reading retained on the display
bluedot Display symbols alert user to poor coupling and low battery conditions

line

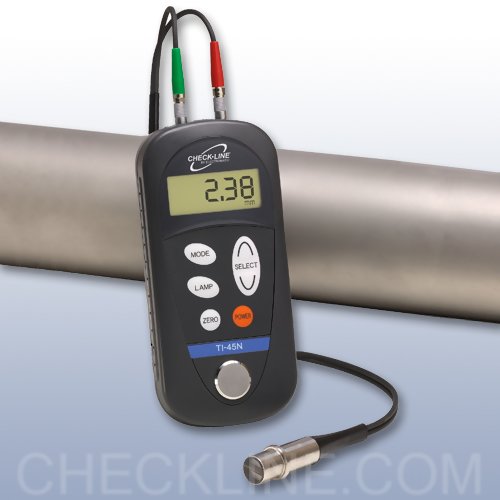

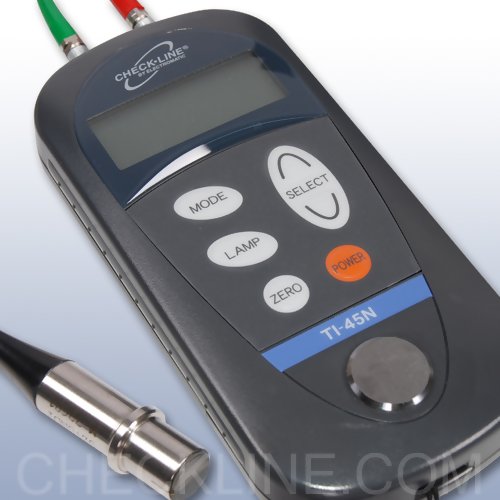

reddot Photo Gallery for the TI-45N Ultrasonic Thickness Gauge
Click any photo to enlarge
line



line
reddot Related Products for the TI-45N Ultrasonic Thickness Gauge
line <><>

NIST-Traceable Steel Test Block
3 Sizes Available		related

bluedot Precision Machined and Finished

bluedot Includes NIST Report and Test Data


___________________________________________

<><>

Uncertified Steel Test Block
For Ultrasonic Gauges		related

bluedot For convenient confirmation of thickness gauge calibration


___________________________________________

<><>

CF12
Coupling Fluid		related

bluedot Used to create an ultrasonic coupling between the probe and material to be measured

bluedot 12oz Bottle


___________________________________________

<><>

5Z10NDT-M
Spare / Replacement Probe for TI-40N		related

bluedot 5mhz, 10mm Probe

bluedot 39" Cable with 2 LEMO Connectors


___________________________________________

<><>

CS-5Z10NDT
Centering Shell for CS-5Z10NDT Probe		related

bluedot Centering Shell for TI-40N & TI-45N



line

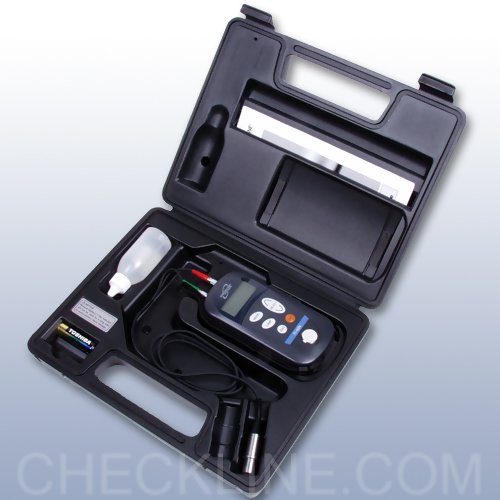

reddot Complete Kit of the TI-45N Ultrasonic Thickness Gages
line


TI-45N Ultrasonic Thickness Gages are supplied as a complete kit with the gauge and wrist strap, probe and cable assembly, 2 oz. bottle of coupling fluid, batteries and instruction manual -- all supplied in a fitted, hard plastic carrying.
complete kit

line
reddot Measuring Limits of the TI-45N Ultrasonic Thickness Gauge
line

Minimum Radius for Convex Surfaces1" (25.4 mm)
Minimum Radius for Concave Surfaces3" (76.2 mm)
Minimum Headroom3" (76.2 mm)
Minimum Sample Diameter0.5" (12.7 mm)
Minimum Substrate Thickness - Fna
Minimum Substrate Thickness - NFena

line
reddot Specifications of the TI-45N Ultrasonic Thickness Gauge
line
Range in Steel0.040 - 8.000" (1.0 - 200.0 mm)
Resolution.001" (0.01 mm)
Display4˝ - digit LCD display, 0.39" (10mm) high with push button illumination
Velocity Range3,250 - 39,000 ft/sec
(1,000 - 12,000 m/sec)
continuously adjustable

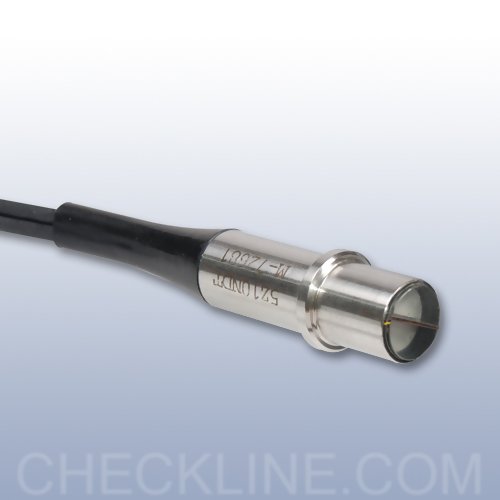

Probe5 MHz, .39" (10 mm) diameter without Centering Shell
Cable39" (1m) 2-wire, long cable with quick-disconnect connectors
Minimum Pipe Size1" nominal (30mm) steel pipe
Temp. LimitsAmbient: 25 to 125° F (-5 to 50° C)
Material: -15 to 140° F (-10 to 60° C)
Calibration Plate0.250" (6.35mm) steel plate, built into the front of the housing
Battery TypeTwo AA batteries
Battery Life200 hours
WeightGauge: 7 ounces (200 g)
Size5.2" x 2.7" x 1.1"
(131 x 68 x 29 mm)
WarrantyGauge: 1 years
Probe: 90 days
Accessories IncludedFitted, hard-plastic carrying case, probe shell attachment, 2 oz. bottle of coupling fluid, 1 spare battery and operating instruction guide

line
reddot Downloads for the TI-45N Ultrasonic Thickness Gages
line

newsPDF Data Sheet Click Here To Download

manualPDF Instruction Manual Click Here To Download
