TI-25M Ultrasonic Thickness Gauge

Price: $1,495.00 to $1,595.00

General purpose gauge measures a variety of materials

Range:
0.025 - 6.00 inches
0.60 - 150.00 mm

Resolution: 0.001" (0.01mm)

Datalogging: NO

Measuring Range in Steel
0.025 - 6.00 inches
0.60 - 150.0 mm

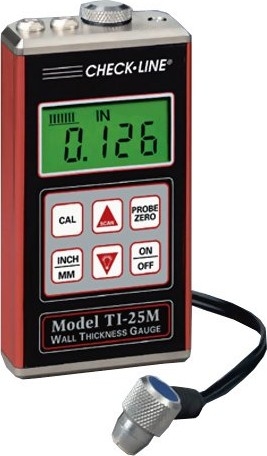

The TI-25M Ultrasonic Thickness Gauge accurately measures wall thickness and the extent of corrosion of all metals, ceramics, glass and most rigid plastics - from only one side!

The TI-25M Ultrasonic Thickness Gauge can be used in a Single Thickness Reading mode or in a Scan mode , where the probe is dragged over a large measuring area. The minimum thickness reading recorded during the "scan" will be displayed.

The TI-25M Ultrasonic Thickness Gauge probe is waterproof and can be submerged in water. The gauge is impact-resistant and environmentally sealed to provide trouble-free operation under the toughest field conditions.

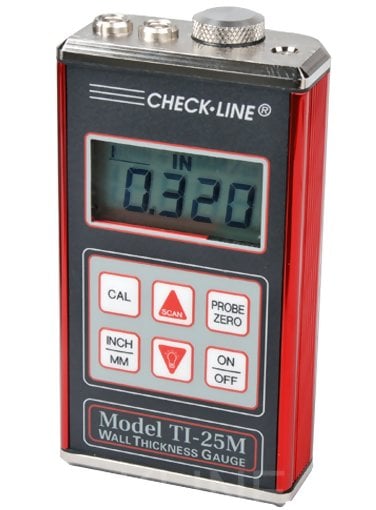

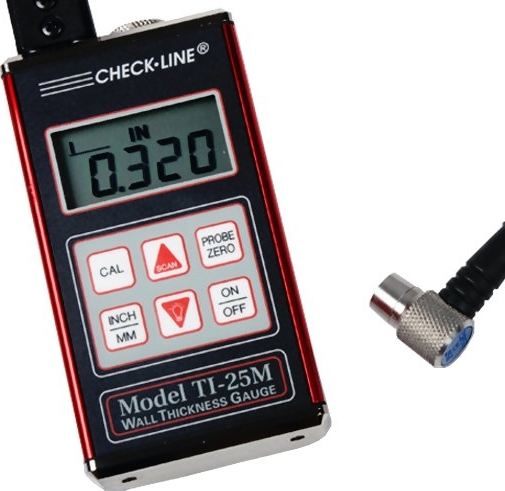

Features of the TI-25M Ultrasonic Thickness Gauge

Resolution of 0.001 inch (0.01 mm)

Large, back-lit LCD display retains last reading

Simple operator controls virtually eliminate training

Special-purpose probes are offered for a variety of applications

Switch-selected units for inches or mm

For underwater surveying, probe cable lengths up to 50 feet are optionally

CE Certified

Includes NIST Calibration Certificate

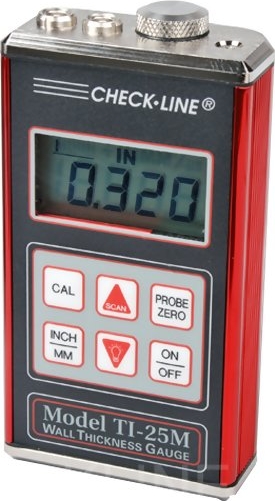

Photo Gallery for the TI-25M Ultrasonic Thickness Gauge

Click any photo to enlarge

Typical Applications of a TI-25M Ultrasonic Thickness Gauge
typical

Optional Accessories for the TI-25M Ultrasonic Thickness Gauge


NIST-Traceable Steel Test Block 3 Sizes Available
Precision Machined and Finished Includes NIST Report and Test Data

___________________________________________


Uncertified Steel Test Block For Ultrasonic Gauges
For convenient confirmation of thickness gauge calibration

___________________________________________


TICC-M Protective Holder for Ultrasonic Gauges
Constructed from heavy duty Cordura Nylon Built-in belt loop

___________________________________________


CF12 Coupling Fluid
Used to create an ultrasonic coupling between the probe and material to be measured 12oz Bottle

___________________________________________


TI-25-UW-50 50 Foot Underwater Probe / Cable Assembly
50 Ft. Length, Waterproof Probe/Cable assembly with non-polarized, Dual-Lemo connectors.

___________________________________________


V-Block Transducer Holder
The V-Block transducer holder offers the operator greater control and repeatabily when measuring on pipes and other curved areas.

Complete Kit of the TI-25M Ultrasonic Thickness Gauge

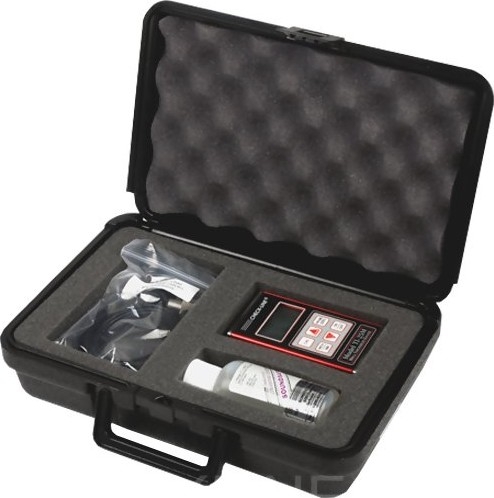

The TI-25M Ultrasonic Thickness Gauge is supplied as a complete kit with the gauge, probe, 4 oz. bottle of coupling fluid, 2 AA batteries, NIST Calibration Certificate, and Operating Instruction Manual - all in a foam-fitted carrying case.

Measuring Limits of the TI-25M Ultrasonic Wall Thickness Gauge

	Minimum Radius for Convex Surfaces	0.350" (8.89 mm)
	Minimum Radius for Concave Surfaces	3" (76.2 mm)
	Minimum Headroom	1" (25.0 mm)
	Minimum Sample Diameter	0.150" (3.8 mm)
	Minimum Substrate Thickness - F	na
	Minimum Substrate Thickness - NFe	na

Specifications of the TI-25M Ultrasonic Thickness Gauges

Range in Steel	0.025-6.00" (0.60-150.0 mm)
Resolution	.001" (0.01 mm)
Display	4½ - Digit, 0.5" Back-lit LCD
Velocity Range	6,500-33,000 ft./sec (2000-10,000 m/sec.)
Probe	7.5 MHz, 0.25" Diameter (6.35 mm)
Cable	4 ft. (1.2 m) waterproof cable with non-polarized, quick-disconnect connectors. Optional lengths up to 50 ft. (15 m).
Temp. Limits	Ambient: -20 to 120° F (-30 to 50° C) Material: -0 to 200° F (-20 to 100° C Special high temperature probes are optionally available.
Battery Type	Two AA batteries
Battery Life	200 hours
Weight	7 ounces (196 g)
Size	2.5 x 4.5 x 1.25" (64 x 114 x 32 mm)
Accessories Included	Probe/cable assembly. 4 oz. bottle of coupling fluid, NIST Calibration Certificate, 2 AA batteries, operating instructions, hard-plastic carrying case.
Warranty	Gauge: 5 Years Probes: 90 Days
