TI-25DL-MMX Data Logging Through Paint Ultrasonic Thickness

Price: $1,995.00
Measures on coated materials and eliminates the coating from the measurement with datalogging
Range:
Pulse-Echo Mode (Pit & Flaw Detection) 0.025 - 19.999 inches
0.63 - 500 mm
Echo-Echo Mode (Through Paint & Coatings) 0.1 - 1 inch
2.54 - 25.4 mm
Resolution: .001" (0.01 mm)
Datalogging: YES

TI-25DL-MMX Data Logging Through Paint Ultrasonic Thickness Gauge


Measuring Range in Steel
Pulse-Echo Mode (Pit & Flaw Detection) measures from 0.025 to 19.999 inches (0.63 to 500 millimeters).
Echo-Echo Mode (Through Paint & Coatings) measures from 0.1 to 1 inch (2.54 to 25.4 millimeters).

The TI-25DL-MMX Data Logging Through Paint Ultrasonic Thickness Gauge accurately measures wall thickness and the extent of corrosion of all metals, ceramics, glass and most rigid plastics - from only one side!

The TI-25DL-MMX Data Logging Through Paint Ultrasonic Thickness Gauge can be used in a Single Thickness Reading mode or in a Scan mode, where the probe is dragged over a large measuring area. The minimum thickness reading recorded during the "scan" will be displayed.

The TI-25DL-MMX Data Logging Through Paint Ultrasonic Thickness Gauge incorporates a built-in memory for 1000 data points that can be separated into 10 separate "batches." The stored data can be downloaded to a serial printer or a personal computer. A Windows compatible data transfer program is supplied at no additional cost.

The TI-25DL-MMX Data Logging Through Paint Ultrasonic Thickness Gauge probe is waterproof and can be submerged in water. The gauge is impact-resistant and environmentally sealed to provide trouble-free operation under the toughest field conditions.


line
reddot Features of the TI-25DL-MMX Data Logging Through Paint Ultrasonic Thickness Gauge
line
bluedot Ability to measure through paint and eliminate coatings
bluedot Resolution of 0.001 inch (0.01 mm)
bluedot Large, backlit LCD display retains last reading
bluedot Simple operator controls virtually eliminate training
bluedot RS-232C Serial output for downloading stored data to a printer or computer
bluedot Memory for 1000 data points in up to 10 batches
bluedot Special-purpose probes are offered for a variety of applications
bluedot Switch-selected units for inches or mm
bluedot For underwater surveying, probe cable lengths up to 50 feet are optionally
bluedot CE Certified
bluedot Includes NIST Calibration Certificate

line
reddot Photo Gallery for the TI-25DL-MMX Data Logging Through Paint Ultrasonic Thickness Gauge
Click any photo to enlarge
line



line

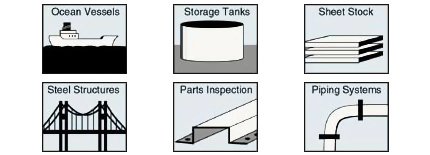

reddot Typical Applications of a TI-25DL-MMX Data Logging Through Paint Ultrasonic Thickness Gauge
line typical

line
reddot Optional Accessories for the TI-25DL-MMX Data Logging Through Paint Ultrasonic Thickness Gauge
line



NIST-Traceable Steel Test Block
3 Sizes Available		NIST-Traceable Steel Test Block

bluedot Precision Machined and Finished

bluedot Includes NIST Report and Test Data



___________________________________________



Uncertified Steel Test Block
For Ultrasonic Gauges		Uncertified Steel Test Block

bluedot For convenient confirmation of thickness gauge calibration



___________________________________________



TICC-M
Protective Holder for Ultrasonic Gauges		TICC-M

bluedot Constructed from heavy duty Cordura Nylon

bluedot Built-in belt loop



___________________________________________



CF12
Coupling Fluid		CF12

bluedot Used to create an ultrasonic coupling between the probe and material to be measured

bluedot 12oz Bottle



___________________________________________



V-Block
Transducer Holder		V-Block

bluedot The V-Block transducer holder offers the operator greater control and repeatabily when measuring on pipes and other curved areas.



___________________________________________



P-25DL
Portable Printer for TI-25DL		P-25DL

bluedot Small, portable and easy to use

bluedot Prints statistical data from the TI-25DL Ultrasonic Wall Thickness Gauge




line
reddot Complete Kit of the TI-25DL-MMX Data Logging Through Paint Ultrasonic Thickness Gauge
line


The TI-25DL-MMX Data Logging Through Paint Ultrasonic Thickness Gauge is supplied as a complete kit with the gauge, probe, 4 oz. bottle of coupling fluid, 2 AA batteries, NIST Calibration Certificate, data transfer software, serial output cable and Operating Instruction Manual - all in a foam-fitted carrying case.
complete kit

line
reddot Model Selection Guide
line

Selection Guide - Pit & Flaw Detection (Pulse-Echo) Mode

Model NumberMaximum CoatingMinimum WallMaximum Wall
All Models0.020" (0.50mm)0.100" (2.54mm)6.000" (152.4mm)

Selection Guide - Thru-Paint (Echo-Echo) Model

Model NumberMaximum CoatingMinimum WallMaximum Wall
TI-25DL-MMX0.040" (1.00mm)0.100" (2.54mm)1.000" (25.4mm)
TI-25DL-MMX-EXT0.080" (2.00mm)0.200" (5.08mm)5.000" (127.0mm)

line
reddot Measuring Limits of the TI-25DL-MMX Data Logging Through Paint Ultrasonic Thickness Gauge
line

Minimum Radius for Convex Surfaces0.350" (8.89 mm)
Minimum Radius for Concave Surfaces3" (76.2 mm)
Minimum Headroom1" (25.0 mm)
Minimum Sample Diameter0.150" (3.8 mm)
Minimum Substrate Thickness - Fna
Minimum Substrate Thickness - NFeNA

line
reddot Specifications of the TI-25DL-MMX Data Logging Through Paint Ultrasonic Thickness Gauge
line
RangePulse-Echo Mode(Pit & Flaw Detection) measures from 0.025 to 19.999 inches (0.63 to 500 millimeters).
Echo-Echo Mode (Through Paint & Coatings) measures from 0.1 to 1 inch (2.54 to 25.4 millimeters).
Resolution.001" (0.01 mm)
Display4½ - Digit, 0.5" Backlit LCD
Velocity Range0.0492 to .3937 in./µs. (1250 to 10,000 meters/second)
Probe5 MHz, 0.25" Diameter (6.35 mm)
Probe WearfacePEEK (Polyethlethylketone)
Cable4 ft. (1.2 m) waterproof cable with non-polarized, quick-disconnect connectors. Optional lengths up to 50 ft. (15 m).
Temp. LimitsAmbient: -20 to 120° F (-30 to 50° C)
Material: 0 to 200° F (-20 to 100° C) Special high temperature probes are optionally available
Serial OutputRS-232C (8, N, 1, user-set baud rate)
Battery TypeTwo AA batteries
Battery Life200 hours
Weight7 ounces (196 g)
Size2.5 x 4.5 x 1.25"
(64 x 114 x 32 mm)
Accessories IncludedProbe/cable assembly. 4 oz. bottle of coupling fluid, NIST Calibration Certificate, 2 AA batteries, operating instructions, hard-plastic carrying case.
WarrantyGauge: 5 Years
Probes: 90 Days

line
reddot Downloads for the TI-25DL-MMX Data Logging Through Paint Ultrasonic Thickness Gauge
line

newsNIST Certificate Sample Click here to download

softwareDataComm Software Click Here To Download 22mb

manualPDF Instruction Manual Click Here To Download

newsPDF Data Sheet Click Here To Download

line
reddot Buy Now
line


Please select the items you would like to purchase then click "Add to Cart"
Products:

TI-25DL-MMX Data Logging Through Paint Ultrasonic Wall Thickness - Model





Accessories:
Accessories for Ultrasonic Wall Thickness Gauges:








  • Manufactured by: Checkline
