Buy TI-007DL Data Logging Precision Ultrasonic Thickness Gauge

Price: $2,195.00 to $2,245.00

High Resolution gauge for measuring thin materials with 0.0001" resolution with datalogging

Range:
0.0060 - 1.000 inches
0.15 - 25.4 mm

Resolution: .0001" (0.001 mm)

Datalogging: YES

TI-007DL Data Logging Precision Ultrasonic Thickness Gauge

Measuring Range in Steel
0.0060 - 1.000 inches
0.150 - 25.40 mm

The TI-007DL Data Logging Precision Ultrasonic Thickness Gauge is a precision ultrasonic wall thickness gauge specifically suited to make extremely precise and high-resolution measurements on thin-walled metal and plastics. The TI-007DL Data Logging Precision Ultrasonic Thickness Gauge is packaged in a sturdy extruded aluminum housing which is sealed for excellent environmental protection assuring trouble-free use even in the toughest field and production environments.

TI-007DL Data Logging Precision Ultrasonic Thickness Gauges incorporates a built-in memory for 1000 data points that can be separated into 10 separate "batches." The stored data can be downloaded to a serial printer or a personal computer. A Windows compatible data transfer program is supplied at no additional cost.

The gauges have a MEASURING RANGE from 0.0060 to 1.0000 inch, (0.15 to 25.40 mm). Using a single element delay tip transducer, the gauges will measure thin materials and automatically remove any coatings in ECHO-TO-ECHO MODE as well as automatically switch to interface echo mode when measuring thicker materials and plastics.

Features of the TI-007DL Data Logging Precision Ultrasonic Thickness Gauge

Resolution of 0.0001 inch (0.001 mm)

Selectable units of inch or mm

Memory for 1000 data points in up to 10 batches

RS-232C Serial output for downloading stored data to a printer or computer

TI-007DL-GT model available with Graphite Tip for measuring plastics

Windows compatible data transfer program supplied at no additional cost.

Large, backlit LCD display retains last reading

CE Certified

Includes NIST Calibration Certificate

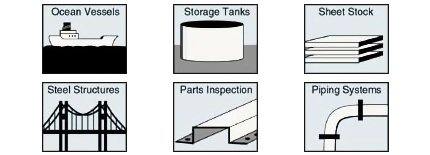

Typical Applications of the TI-007DL Data Logging Precision Ultrasonic Thickness Gauges
typical

Photo Gallery for the TI-007DL Data Logging Precision Ultrasonic Thickness Gauge

Click any photo to enlarge

Optional Accessories for the TI-007DL Data Logging Precision Ultrasonic Thickness Gauge


NIST-Traceable Steel Test Block 3 Sizes Available
Precision Machined and Finished Includes NIST Report and Test Data

___________________________________________


Uncertified Steel Test Block For Ultrasonic Gauges
For convenient confirmation of thickness gauge calibration

___________________________________________


TICC-M Protective Holder for Ultrasonic Gauges
Constructed from heavy duty Cordura Nylon Built-in belt loop

___________________________________________


CF12 Coupling Fluid
Used to create an ultrasonic coupling between the probe and material to be measured 12oz Bottle

___________________________________________


P-25DL Portable Printer for TI-25DL
Small, portable and easy to use Prints statistical data from the TI-25DL Ultrasonic Wall Thickness Gauge

Measuring Limits of the TI-007DL Data Logging Precision Ultrasonic Thickness Gauges

Complete Kit of the TI-007DL Data Logging Precision Ultrasonic Thickness Gauge


The TI-007DL Data Logging Precision Ultrasonic Wall Thickness Gauge is supplied as a complete kit with the gauge, probe, 4 oz. bottle of coupling fluid, 2 AA batteries, NIST Calibration Certificate, data transfer software, serial output cable and Operating Instruction Manual - all in a foam-fitted carrying case.

Delay Line Tips for TI-007DL

P/N	Description	Standard / Optional	Image
X-231-0000	1/4" x 3/8" for all metals (Short)	Standard
X-241-0000	1/4" x 1/2" for all metals (Long)	Standard
X-633-0000	1/4" x 3/8" Graphite Tip for thin plastics (Graphite Short)	Standard on "-GT" models
X-532-0000	3/16" x 3/8" Conical Tip for all metals (Cone)	Optional
X-533-0000	3/16" x 3/8" Graphite Tip for thin plastics (Graphite Cone)	Optional

Specifications of the TI-007DL Data Logging Precision Ultrasonic Thickness Gauge

Range in Steel	0.0060-1.0000" (0.15-25.40 mm)
Resolution	.0001" (0.001 mm)
Display	4½ - Digit, 0.5" Backlit LCD
Velocity Range	6,500-33,000 ft./sec (2000-10,000 m/sec.)
Transducer	Single element with delay tip. 10 to 22 MHz frequency range.
Probe Wearface	PEEK (Polyethlethylketone)
Cable	4 ft. (1.2 m) waterproof cable with non-polarized, quick-disconnect LEMO connectors. Optional lengths up to 100 ft. (30 m)
Serial Output	RS-232C (8, N, 1, user-set baud rate)
Temp. Limits	Ambient: -20 to 120° F (-30 to 50° C) Material: 0 to 200° F (-20 to 100° C)
Battery Type	Two AA batteries
Battery Life	200 hours
Weight	7 ounces (196 g)
Size	2.5 x 4.5 x 1.25" (64 x 114 x 32 mm)
Accessories Included	Probe/cable assembly. 4 oz. bottle of coupling fluid, NIST Calibration Certificate, 2 AA batteries, operating instructions, hard-plastic carrying case.
Warranty	Gauge: 5 Years Probes: 90 Days
