TI-007 Precision Ultrasonic Thickness Gauge

Price: $1,895.00 to $1,945.00
High Resolution gauge for measuring thin materials with 0.0001" resolution
Range:
0.0060 - 1.000 inches
0.15 - 25.4 mm
Resolution: .0001" (0.001 mm)
Datalogging: NO

TI-007 Precision Ultrasonic Thickness Gauge


Measuring Range in Steel
0.0060 - 1.000 inches
0.150 - 25.40 mm

The TI-007 Precision Ultrasonic Thickness Gauge is a precision ultrasonic wall thickness gauge specifically suited to make extremely precise and high-resolution measurements on thin-walled metal and plastics.  The TI-007 Precision Ultrasonic Wall Thickness Gauge is packaged in a sturdy extruded aluminum housing which is sealed for excellent environmental protection assuring trouble-free use even in the toughest field and production environments.

The gauges have a MEASURING RANGE from 0.0060 to 1.0000 inch, (0.15 to 25.40 mm). Using a single element delay tip transducer, the gauges will measure thin materials and automatically remove any coatings in ECHO-TO-ECHO MODE as well as automatically switch to interface echo mode when measuring thicker materials and plastics.


line
reddot Features of the TI-007 Precision Ultrasonic Thickness Gauge
line
bluedot Resolution of 0.0001 inch (0.001 mm)
bluedot Large, backlit LCD display retains last reading
bluedot TI-007-GT model available with Graphite Tip for measuring plastics
bluedot Selectable units of inch or mm
bluedot RS-232 Data output of individual values for connection to data collection or quality control systems
bluedot CE Certified
bluedot Includes NIST Calibration Certificate

line

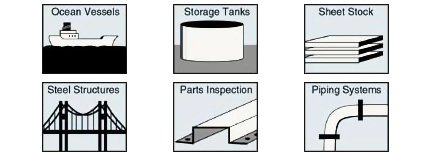

reddot Typical Applications of the TI-007 Precision Ultrasonic Thickness Gauge
line typical

line
reddot Photo Gallery  for the TI-007 The TI-007 Precision Ultrasonic Thickness Gauge

Click any photo to enlarge

line



line
reddot Optional Accessories for the TI-007 Precision Ultrasonic Thickness Gauge
line


NIST-Traceable Steel Test Block
3 Sizes Available		NIST-Traceable Steel Test Block

bluedot Precision Machined and Finished

bluedot Includes NIST Report and Test Data



___________________________________________



Uncertified Steel Test Block
For Ultrasonic Gauges		Uncertified Steel Test Block

bluedot For convenient confirmation of thickness gauge calibration



___________________________________________



TICC-M
Protective Holder for Ultrasonic Gauges		TICC-M

bluedot Constructed from heavy duty Cordura Nylon

bluedot Built-in belt loop



___________________________________________



CF12
Coupling Fluid		CF12

bluedot Used to create an ultrasonic coupling between the probe and material to be measured

bluedot 12oz Bottle




line
reddot Measuring Limits of the TI-007 Precision Ultrasonic Thickness Gauge
line

measuring limits


line
reddot Complete Kit of the TI-007 Precision Ultrasonic Thickness Gauge
line


The TI-007 Precision Ultrasonic Thickness Gauge is supplied as a complete kit with the gauge, probe, 4 oz. bottle of coupling fluid, 2 AA batteries, NIST Calibration Certificate and Operating Instruction Manual - all in a foam-fitted carrying case.
complete kit

line
reddot Delay Line Tips for TI-007
line
P/NDescriptionStandard / OptionalImage
X-231-00001/4" x 3/8"
for all metals
(Short)		Standard
X-241-00001/4" x 1/2"
for all metals
(Long)		Standard
X-633-00001/4" x 3/8"
Graphite Tip
for thin plastics
(Graphite Short)		Standard on "-GT" models
X-532-00003/16" x 3/8"
Conical Tip
for all metals
(Cone)		Optional
X-533-00003/16" x 3/8"
Graphite Tip
for thin plastics
(Graphite Cone)		Optional

line
reddot Specifications of the TI-007 Precision Ultrasonic Thickness Gauge
line
Range in Steel0.0060-1.0000" (0.15-25.40 mm)
Resolution.0001" (0.001 mm)
Display4½ - Digit, 0.5" Backlit LCD
Velocity Range6,500-33,000 ft./sec (1250-10000 m/sec.)
TransducerSingle element with delay tip. 10 to 22 MHz frequency range.
Probe WearfacePEEK (Polyethlethylketone)
Cable4 ft. (1.2 m) waterproof cable with non-polarized, quick-disconnect LEMO connectors. Optional lengths up to 100 ft. (30 m)
OutputsRS-232, single value when send key is pressed
Temp. LimitsAmbient: -20 to 120° F (-30 to 50° C)
Material: 0 to 200° F (-20 to 100° C)
Battery TypeTwo AA batteries
Battery Life150 hours
Weight10 ounces
Size2.5 x 4.5 x 1.25"
(64 x 114 x 32 mm)
WarrantyGauge: 5 Years
Probes: 90 Days

line
reddot Downloads for the TI-007 Precision Ultrasonic Thickness Gauge
line

newsNIST Certificate Sample Click here to download

manualPDF Instruction Manual Click Here To Download

newsPDF Data Sheet Click Here To Download

line
reddot Buy Now
line


Please select the items you would like to purchase then click "Add to Cart"
Products:

TI-007 Precision Ultrasonic Wall Thickness Gauge - Model





Accessories:
Accessories for Ultrasonic Wall Thickness Gauges:












  • Manufactured by: Checkline
