STA Hand Tool Torque Tester

Torque Tester for Hand Tools
3 ranges up to 100 lb-in
Units of measure: lbf-in, kgf-cm, and N-cm (selectable)
RS-232 and Mitutoyo (Digimatic) outputs
Price: $1,175.00

STA Hand Tool Torque Tester


STA Torque Tool Testers present a simple yet accurate solution for testing hand operated torque screwdrivers, wrenches, and other tools. Applications exist in manufacturing facilities in virtually every industry. The STA features a solid aluminum housing, making it rugged enough for many years of service in production or laboratory use, while a universal receptacle with square drive and grooves accepts common bits and attachments. The STA captures peak torque in both clockwise and counterclockwise directions.

Note: The STA cannot be used with power, impact or air tools


line
reddot Features
line
bluedot Selectable units of measurement
bluedot Peak memory for clockwise and counterclockwise readings
bluedot Solid aluminum housing
bluedot Battery or AC operation (AC Adapter included)
bluedot Mounting holes for bench mounting
bluedot CE Certified
bluedot Includes NIST-Traceable Calibration Certificate
bluedot MESUR™ Lite data acquisition software is included (Requires optional Serial Cable)

line
reddot Force Ranges
line
Model Capacity Resolution
STA-12 12 lb-in
140 kg-mm
135 N-cm
0.01 lb-in
0.1 kg-mm
0.1 N-cm
STA-50 50 lb-in
580 kg-mm
570 N-cm
0.05 lb-in
0.5 kg-mm
0.5 N-cm
STA-100 100 lb-in
1150 kg-mm
1150 N-cm
0.1 lb-in
1 kg-mm
1 N-cm

line

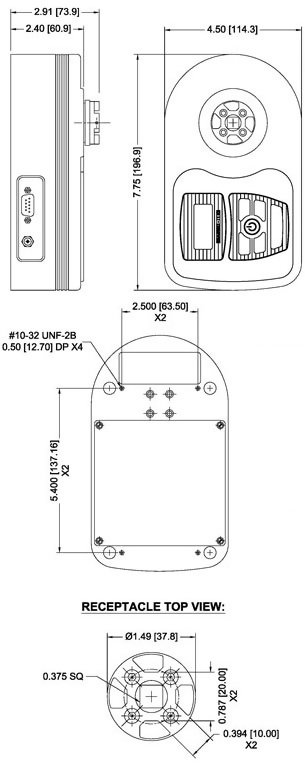

reddot Dimensions
line dimensions
line
reddot Related Products
line
TT-QC
Torque Tester
related

bluedot Bidirectional accuracy of ±1% of indicated reading

___________________________________________

TT-3000 Series
Torque Tester
related

bluedot Bidirectional accuracy of ±0.5% of indicated reading


line
reddot Specifications
line
Accuracy ± 0.5% of full scale, ±1 least significant digit
Max Sample Diameter 7.5" (189.4 mm)
Sampling Rate 65 readings per second
Display 4 1/2 digit LCD with .3" high characters. Indicators for low battery, units and mode of operation
Power Non-rechargeable 9V battery or AC operation with included adapter
Battery Life 30 hours of continuous use, LO BAT indicator
Overload Protection 150% or higher
Weight 4.8 lbs (2.2 kg)
Warranty 3 years
Calibration Certificate Included
line
reddot Download
line
manual  Data Sheet  Click here to download
manual  Instruction Manual  Click here to download
line
reddot Buy Now
line

Please select the items you would like to purchase then click "Add to Cart"
Products:

STA Hand Tool Torque Tester - Model






Accessories:
Accessories for Torque Testers:







Power Supply



  • Manufactured by: Mark-10
