Series-5 Advanced Digital Force Gauge

Digital Force Gauge with USB, RS-232,Mitutoyo, and analog outputs
7,000 Hz peak sampling rate
±0.1% accuracy
1,000 point data memory and statistics
Reversible display
Price  $975. up to $1,125.
Advanced Digital Force Gauge

Measures Tension &
Compression Force (Push / Pull)
11 Ranges up to 500 lbs

Series 5 advanced digital force gauges are designed for tension and compression force testing in quality control, manufacturing, and R&D areas. A range of capacities from 0.12 lb to 500 lb (0.5 N to 2500 N) is available to address numerous applications in the medical device, pharmaceutical, packaging, consumer products, automotive, aerospace, and other industries.

The force gauges feature an industry-leading peak sampling rate of 7,000 Hz, producing accurate results even for quick-action tests. Accuracy is ±0.1% of full scale ±1 digit, and resolution is 1/5000. A large, backlit graphics LCD displays large, legible characters, while the simple menu navigation allows for quick access to the gauges’ many features and configurable parameters. Data can be transferred to a PC or other data collector via USB, RS-232, Mitutoyo (Digimatic), or analog outputs.

On-board data memory for up to 1000 readings is included, as are statistical calculations and output to a PC. Integrated set points with indicators are ideal for pass-fail testing and for triggering external devices such as an alarm, relay, or test stand. The gauges are overload protected to 150% of capacity, and an analog load bar is shown on the display for graphical representation of applied force.

The Series 5’s averaging mode addresses the need to record the average force over time, useful in applications such as peel testing, while external trigger mode makes switch activation testing simple and accurate. An ergonomic aluminum design allows for hand held use or test stand mounting for more sophisticated testing requirements. The housing may be reversed in order for the load cell shaft to be oriented up or down, while the display and buttons remain upright.




line
reddot Features
line
bluedot High-speed 7,000 Hz peak sampling rate
bluedot USB, RS-232, Mitutoyo, and analog outputs
bluedot Averaging mode - calculates average readings over time
bluedot External trigger mode - for switch contact testing or remotely stopping display update
bluedot Programmable set points, with alarms and outputs
bluedot Large backlit graphic display
bluedot 1,000-point data memory with statistics and outputs
bluedot Live load bar graph with set point markers
bluedot Password protection, configurable for individual keys and calibration
bluedot Peak readings always displayed
bluedot Configurable audio alarms and key tones
bluedot Aluminum construction
bluedot Includes NIST Traceable Calibration Certificate
line
reddot Force Ranges
line
Model
Lb
Oz
Kg
G
N
kN
mN
Load Cell
Deflection
M5-012
0.12
0.00002
2
0.0005

50
0.01
0.5
0.0001

500
0.1
0.005 [0.13]
M5-025
0.25
0.00005
4
0.001

100
0.02
1
0.0002

1000
0.2
0.010 [0.25]
M5-05
0.5
0.0001
8
0.002

250
0.05
2.5
0.0005

2500
0.5
0.010 [0.25]
M5-2
2
0.0005
32
0.01
1
0.0002
1000
0.2
10
0.002


0.009 [0.23]
M5-5
5
0.001
80
0.02
2.5
0.0005
2500
0.5
25
0.005


0.005 [0.13]
M5-10
10
0.002
160
0.05
5
0.001
5000
1
50
0.01


0.010 [0.25]
M5-20
20
0.005
320
0.1
10
0.002
10000
2
100
0.02


0.004 [0.10]
M5-50
50
0.01
800
0.2
25
0.005
25000
5
250
0.05


0.010 [0.25]
M5-100
100
0.02
1600
0.5
50
0.01
50000
10
500
0.1


0.010 [0.25]
M5-200
200
0.05
3200
1
100
0.02

1000
0.2
1
0.0002

0.010 [0.25]
M5-500
500
0.1
8000
2
250
0.05

2500
0.5
2.5
0.0005

0.010 [0.25]
line
reddot Dimensions
line dimensions
Thread Specs Thread Hex
M5-012 - M5-100 #10-32 5/16
M5-200 - M5-500 5/16-18 11/32
line reddot Included Accessories
line
M5-012 -M5-20 M5-50 -M5-100 M5-200 - M5-500
Extension Rods G1024 G1031
Cone G1026 G1033
Chisel G1025 G1032
V-Groove G1027 G1034
Flat G1029 G1036
Hook G1028 G1038 G1035
Coupling G1039 G1037

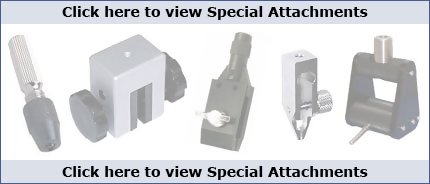

line reddot Special Attachments
line

line
reddot Related Products
line
MESURgauge
Mesurgauge Load & Travel Analysis Software
related


bluedot Sends data from a force or torque gauge and travel display to a PC for further analysis
___________________________________________

ESM301
Programmable Test Stand with PC Control
related


bluedot Selectable speed units of measurement (in/min & mm/min)

bluedot Stepper motor-driven, produces 0% speed variation load
___________________________________________

ES30
Precision Hand Wheel Test Stand
related


bluedot 200lb Capacity

bluedot Modular design: base may be removed and the stand may be used as part of a larger system. It also provides for alternative mounting

bluedot Removable base plate with 25 #10-32 threaded holes for fixture mounting



line
reddot Complete Kit
line
Series 5 force gauges are supplied in a cushioned carrying case with chisel, cone, V-groove, hook, flat, extension rod, universal voltage AC adapter, battery, quick-start guide, USB cable, resource CD (USB driver, MESURgauge DEMO software, and user's guide), andNIST-traceable certificate of calibration with data.
 complete kit
line
reddot Specifications
line
Accuracy
±0.1% of full scale ±1 digit
Power
AC or rechargeable battery. Low battery indicator appears when battery level is low, and gauge powers off automatically when power reaches critical stage.
Battery Life
Backlight on: up to 7 hours of continuous use
Backlight off: up to 24 hours of continuous use
Measurement Units
lbF,ozF,gF,kgF,N,kN,mN (depending on model)
Outputs
USB / RS-232: Fully configurable up to 115,200 baud. Includes Gauge Control Language 2 for full computer control.
Mitutoyo (Digimatic): Serial BCD suitable for all Mitutoyo SPC-compatibile devices.
Analog: ±1 VCD, ±0.25% of full scale at capactiy
General Purpose: Three open drain outputs, one input
Set Points: Three open drain lines
Configurable settings
Digital filters, outputs, automatic output (via USB/RS-232), automatic shutoff, default settings, averaging mode, external trigger, passwords, key tones, audio alarms, backlight, calibration
Safe Overload
150% of full scale (display shows "OVLD" at 110% and above)
Weight(gauge only)
M5-012 - M5-100: 1.0 lb [0.45 kg]
M5-200 - Mg-500: 1.2 lb [0.54 kg]
Included Accessories
Carrying case, chisel, cone, V-groove, hook, flat, extension rod, AC adapter, battery, USB cable with driver, MESURgauge DEMO software, NIST-traceable certificate of calibration with data
Warrany
3 years

line
reddot Download
line
manual  Dimensional Drawing  Click here to Download PDF
manual  Data Sheet  Click here to Download PDF
manual  Instruction Manual  Click here to download PDF
