Price: $1,530.00 to $1,760.00
Digital Torque Tester for Power Drivers & Wrenches
3 ranges up to 130 lb-in
Units of measure: lb-in, oz-in, kg-cm, N-cm and N-m (selectable)
RS-232 and Mitutoyo (Digimatic) outputs
Digital Torque Tester for Electric Drivers & Wrenches |

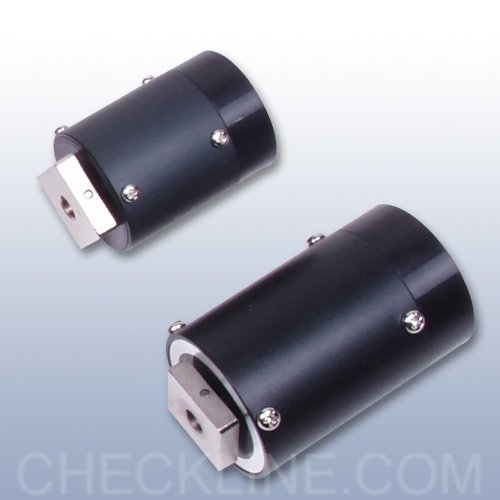

The Series I digital torque tester is ideal for calibrating electric screwdrivers with torque control. It features peak mode to capture the peak torque achieved during a test, real time mode to display torque transients, and peak down mode to capture critical first peak value.  Standard 3/8" drive is good for checking torque wrenches but not impact wrenches. All digital torque testers are sold in kit form complete with tester, hard carrying case, 2 smart driver adapters and AC charger/adapter. A calibration kit is also available. Do not use with impact or air tools (Ask for DI-1M impact wrench torque tester). Smart driver adapters simulate screw tightening, eliminating the need for reversing the power driver which is required for conventional driver adapters. |
 Features of the Series I Digital Torque Testers
 Wide measuring range up to 130 lb-in | | lb-in, Kg-cm and N-cm (selectable) | | Peak, Real Time and Peak Down measuring modes (selectable) | | Measure both clockwise and counterclockwise | | RS-232 output for SPC data acquisition |
| | Programmable automatic display reset | | Heavy-duty metal construction | | Runs on internal NiCad batteries or AC adapter | | 3/8" drive for socket wrenches | | ISO/IEC 17025 Long-form Certificate & Test Data is optionally available |
|

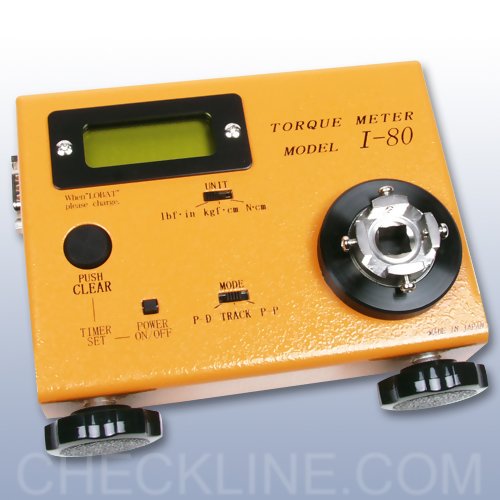

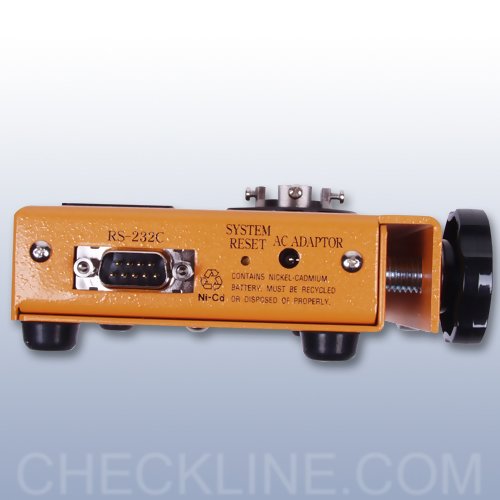

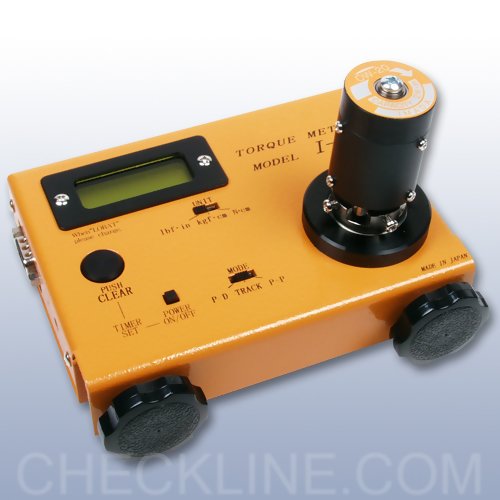

Photo Gallery for the Series I Digital Torque Testers - click any photo to enlarge

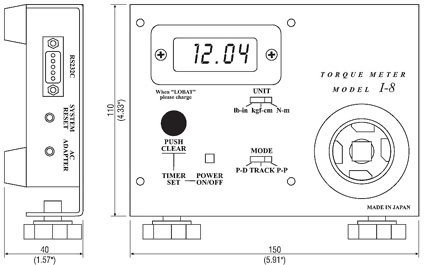

Dimensions of the Series I Digital Torque Testers
Force Ranges
| Model | Capacity | Resolution | | i-8 | 0.350-7.000 lb-in
0.400-8.000 Kg-cm
4.00-80.00 N-cm | 0.001 lb-in
0.001 kg-cm
0.01 N-cm | | i-80 | 3.50-70.00 lb-in
4.00-80.00 Kg-cm
40.0-800.0 N-cm | 0.01 lb-in
0.01 Kg-cm
0.1 N-cm | | CD-130 | 6.5-130.0 lb-in
7.5-150.0 Kg-cm
75-1500 N-cm | 0.1 lb-in
0.1 Kg-cm
1 N-cm | | |
| Accuracy: ±0.5% F.S., ±1 LSD | |
| | |
Standard Adapters
Specifications – Standard Driver Adapters (2 included) | i-8 | i-80 | CD-130 | | Adapter | Smart Adapters | Spring Adapters | |  |  |  | | Model | OW-025E | OW-10E | OW-20E | OW-60E | SJ-50 | SJ-100 | | Range lb-in | 2 | 9 | 18 | 53 | 8~50 | 50~130 | | Mechanical life | 10,000 hrs. | 8,000 hrs. | 5,000 hrs. | 5,000 hrs. | 2500 times | | Screw on top | 6-32 | 6-32 | 8-32 | 1/4-20 | 5/16-18 | 3/8-16 | | Plug to socket | 3/8" square x 5/32" (20 mm square x 4 mm) |
|
Optional Metric Smart Driver Adapters | Model number | OW-025 | OW-10 | OW-20 | OW-60 | | Range | 25 N-cm | 100 N-cm | 200 N-cm | 600 N-cm | | Screw on top | M2P0.4 | M3P0.5 | M4P0.7 | M6P1 |
|
|
Related Products for the Series I Digital Torque Testers
|
SW-1
Data Acquisition Software for Force Gauges & Torque Gauges |  |
Full SPC and graphing capabilities Automates your data collection Provides a running log of all measurements along with a chart of the data as well as statistical information | | | | ___________________________________________ |
|
NIST CAL
|  |
| | |
Complete Kit of the Series I Digital Torque Testers

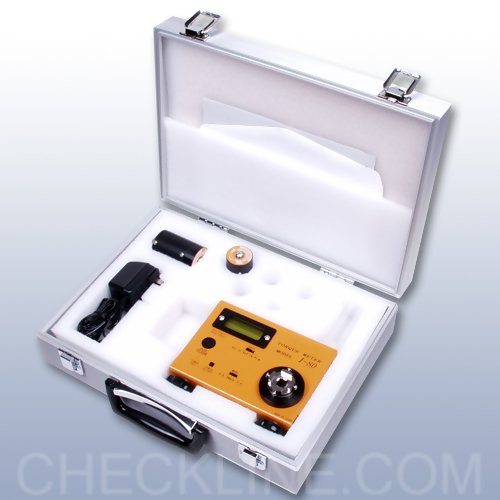

| | | | The Series I is supplied as complete kit in a foam fitted aluminum carrying case, including 2 smart adapters, ac adapter, NIST Calibration certificate and instruction manual. |
 |
