RX-2000 Max-Hand Shore Durometer

Price: $475.00 to $775.00
Max-Hand Shore Durometer
Available Types:
A, D, B, C, DO, E, and O
Conforms to ASTM D-2240
Includes NIST Calibration Certificate

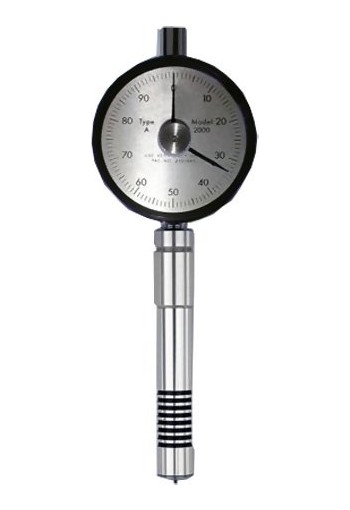

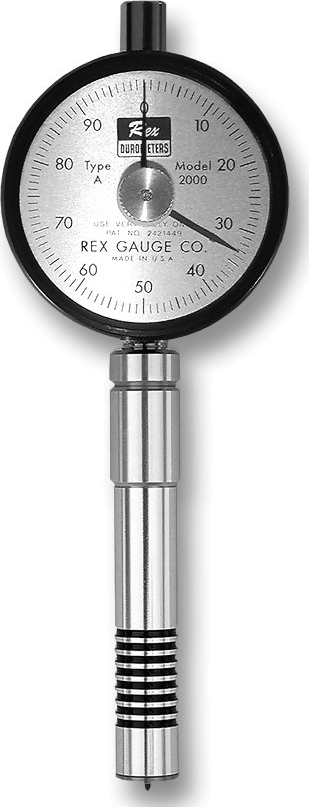

Max-Hand Shore Durometer


The RX-2000 durometer is the latest innovation for the testing of specimens with creep. The RX-2000 has a max- hand and an active hand for observing the creep characteristics of a specimen. What makes the RX-2000 unique is the magnetic-drag maximum reset mechanism. The user simply rotates the reset knob on the front of the gauge to clear the previous reading. The simplicity of the reset mechanism ensures a lifetime of use, and makes the RX-2000 the most affordable durometer for testing specimens with creep.

line
reddot Features
line
bluedot Includes NIST-Traceable Calibration Certificate
bluedot Custom Made Carrying Case
bluedot Reads Maximum and Creep
bluedot One Year Warranty
bluedot Conforms to ASTM D-2240
bluedot Holds Reading Until Reset
bluedot Cost Effective, Hand Operated

line
reddot Related Products
line
Durometer Test Block Kits
Test Function Of Durometers		related

bluedot Enables user to perform a quick check for proper durometer operation

___________________________________________

ORF-1
O-Ring Fixturing Set		related

bluedot Measures O-Rings 1/16" to 1/4"

bluedot 5 standard English sized fixtures and set plug included

___________________________________________

RX-BF
"Big Foot" Durometer Foot Adapter		related

bluedot The Big Foot increases the diameter of the foot from 1/2" to 1 3/8" diameter

___________________________________________

RX-CLW
Constant Load Weight for Types A, B, O, OO & OOO		related

bluedot The Constant Load Weight for gauges with an 822g springload (types A, B, O) slides onto the lower barrel of the gauge, gives it a wider foot, and raises the mass of the gauge to the suggested 1kg

line
reddot Durometer Test Stands
line
durometer test stands We offer a complete line of durometer test stands. The stand, when used in conjunction with a Durometer, eliminates operator error sometimes associated with hand-held durometer testing. Our stands feature a load weight for the proper testing pressure as noted in ASTM D2240, and a quick-lock column for easy adjustment. Click here for more info on Durometer Test Stands.
line

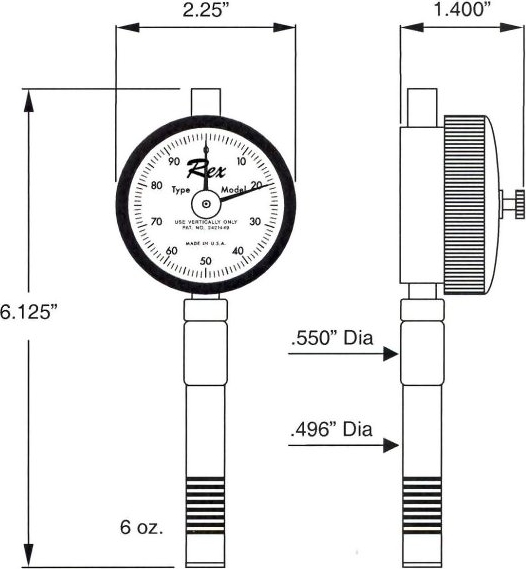

reddot Dimensions
line dimensions
line
reddot Complete Kit
line

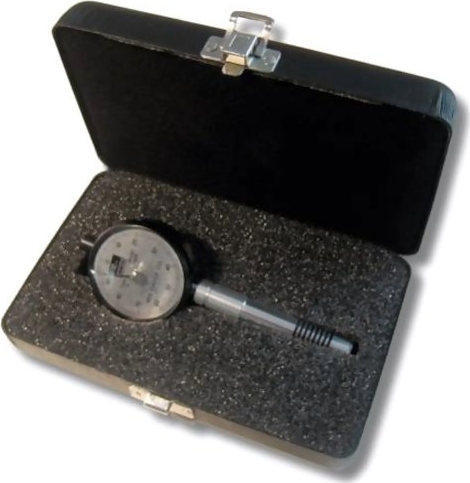

The RX-2000 is supplied as a complete kit including the durometer & instruction manual in a foam-fitted metal carrying case.complete kit
line
reddot Specifications
line
Measuring Range0 - 100 units
Accuracy±1 durometer unit (A,B,C,D,E,O,DO)
Dimensions2.25" x 6.125"H
Weight6 oz.
* Noteper ASTM D 2240-05, Sect 9.3: It is accepted that durometer readings below 20 or above 90 are not considered reliable. It is suggested that readings in these ranges be omitted.
line
reddot Buy Now
line

Please select the items you would like to purchase then click "Add to Cart"
Products:

RX-2000 Max-Hand Durometer - Model
