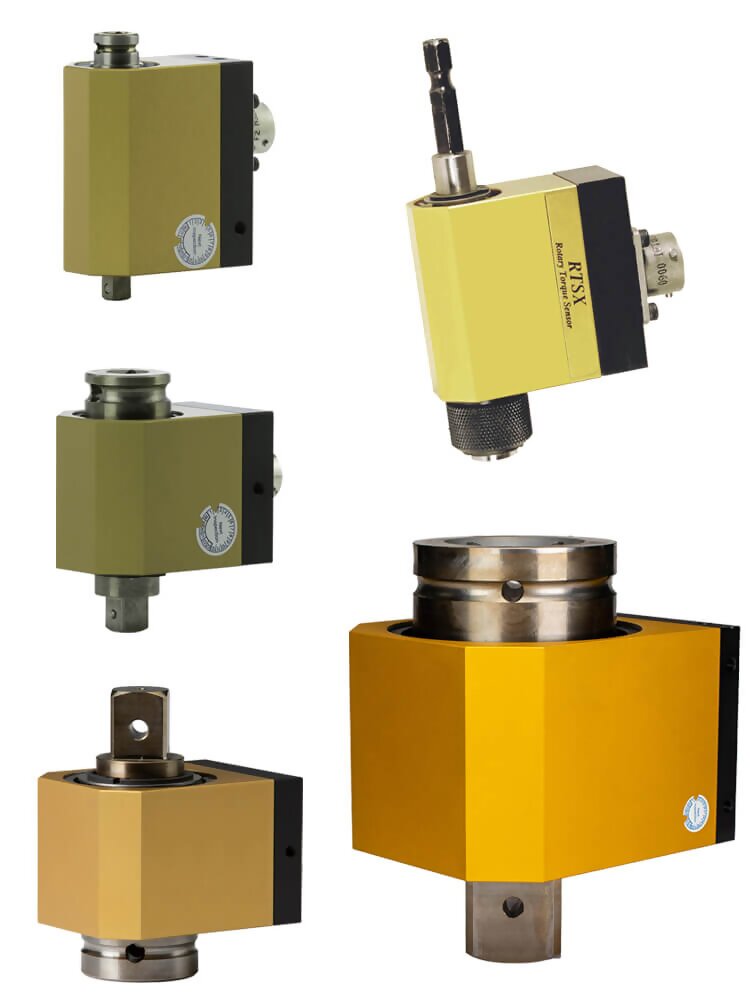

RTSX Rotary Torque Transducer

Price: $2,275.00 to $3,315.00
Model RTSX
Rotary Torque Transducer
Various models that range from 1 Lb-in to 1500 Lb-ft.
For use with most hand tools, power tools or rotational measurement applications



RTSX Rotary Torque Transducer


For use with most hand tools, power tools or rotational measurement applications. Connects between the power tool and the joint. Monitors actual torque being applied from the driver to the fastener. Features an instant auto-recognition system of the RTSX connected to the PTT & LTT.

line
reddot Features of the RTSX Rotary Torque Transducer
line
bluedot Accuracy +/-.25% of full scale.
bluedot Use with most hand tools, power tools or rotational measurement applications.
bluedot Connects between the power tool and the joint. Monitors actual torque being applied from the driver to the fastener.
bluedot Bi-directional.

line
reddot Torque Ranges
line
ModelRangeInput
Drive		Output
Drive
RTSX10i-H
1 - 10 Lb-in
1/4" M/Hex1/4" F/Hex
RTSX10i
1 - 10 Lb-in
1/4" F/Sq1/4" M/Sq
RTSX50i-H
5 - 50 lbf.in
1/4" M/Hex1/4" F/Hex
RTSX50i
5 - 50 lbf.in
1/4" F/Sq1/4" M/Sq
RTSX100i-H
10 - 100 Lb-in
1/4" M/Hex1/4" F/Hex
RTSX100i
10 - 100 Lb-in
1/4" F/Sq1/4" M/Sq
RTSX200i-H
20 - 200 Lb-in
1/4" M/Hex1/4" F/Hex
RTSX200i
20 - 200 Lb-in
3/8" F/Sq3/8" M/Sq
RTSX50F
5 - 50 Lb-ft
3/8" F/Sq3/8" M/Sq
RTSX100F
10 -100 Lb-ft
1/2" F/Sq1/2" M/Sq
RTSX400F
40 -400 Lb-ft
3/4" F/Sq3/4" M/Sq
RTSX738F
74 - 738 Lb-ft
1" F/Sq1" M/Sq
RTSX1500F
150 - 1500 Lb-ft
1 1/2" F/Sq1 1/2" M/Sq
The available engineering units of measurement on the RTSX Rotary Torque Transducers are oz-in, lb-in, lb-ft, cN-m and N-m.


line
reddot Related Products for the RTSX Rotary Torque Transducer
line

PTT
Torque Analyzer		related

bluedot Operates with Torque & Force sensors.

bluedot Real time graph of torque vs. time using associated PC Windows software.

___________________________________________


LTT
Torque and Angle Analyzer		related

bluedot Built-in Tool Tests operation.

bluedot Recommended for all hand screwdrivers, wrenches or power tools.


line
reddot Specifications of the RTSX Rotary Torque Transducer
line
Output at Rated Capacity> 6 Nm [53 lbf.in] rated torque 2 mV/V
InterchanegeabilityMatched for mv/v and shunt calibration +0.3% FS
Nonlinearity+0.2% FS
Excitation Recommended10V DC or AC RMS
Bridge Resistance350 ohms
Usable Temperature Range41-122 degrees F
Safe Overload125% of rated output

line
reddot Buy Now
line


Please select the items you would like to purchase then click "Add to Cart"
Products:

RTSX Rotary Torque Transducer - Model
















Accessories:
Accessories for Torque Testers:



  • Manufactured by: Mountz
