RFS On-Line Tension Sensor
10 Ranges up 500Kg
Resolution of 0.1% and better
RFS On-Line Tension Sensor |

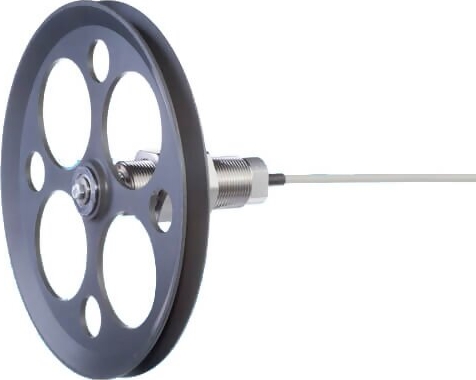

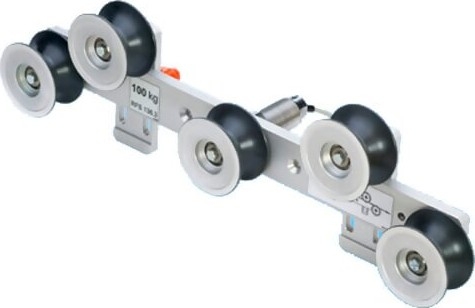

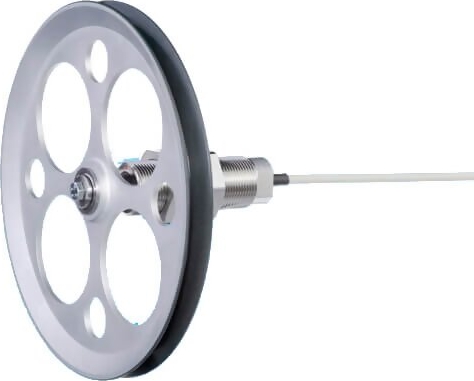

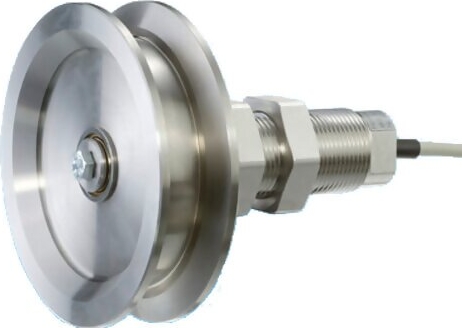

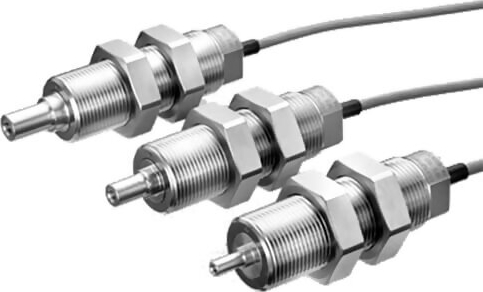

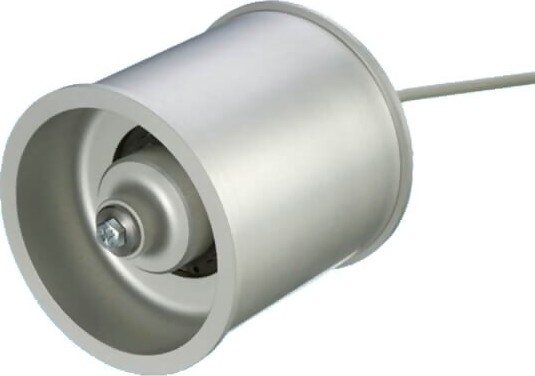

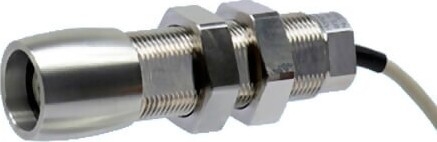

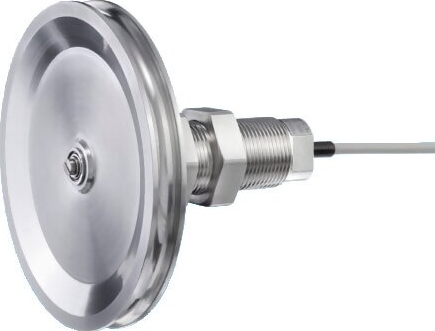

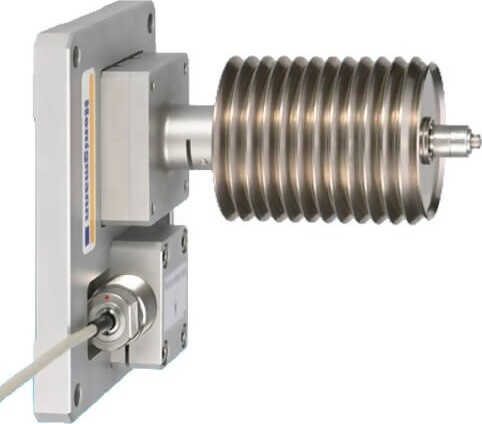

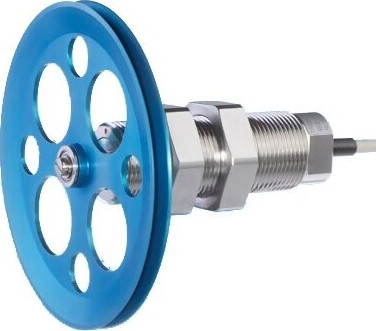

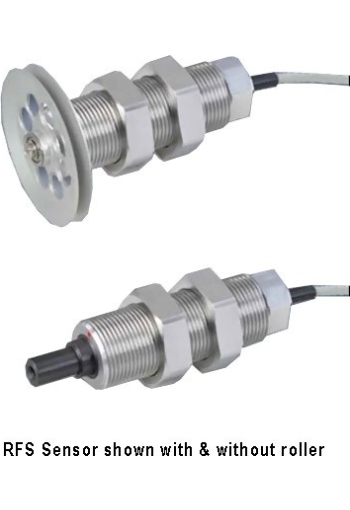

10 Ranges up 500Kg The new CHECK-LINE Model RFS Tension Sensors measure the running line tensions of yarn, wires, optic fibers, cables, tapes/bands, wraps/webs, foils and similar process materials. Its unique strain-gauge design delivers excellent measurement precision and stability as well as providing maximum overload protection. They are used in a variety of low and high-range applications, such as measuring 1 or 2 grams on fine denier yarns/fibers to applications measuring wire/cable up to 500 Kg. |
 Features
 Resolution of 0.1% and better | | Rugged stainless steel housing is environmentally sealed | | Threaded housing with lock-nuts permits easy mounting and simple alignment | | Overload protection up to 800% |

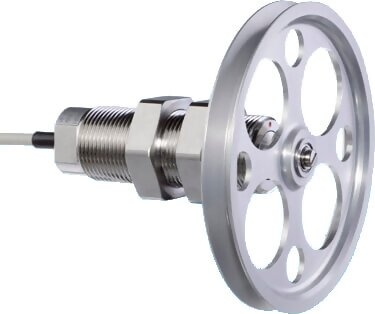

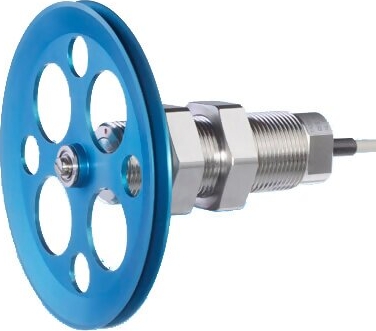

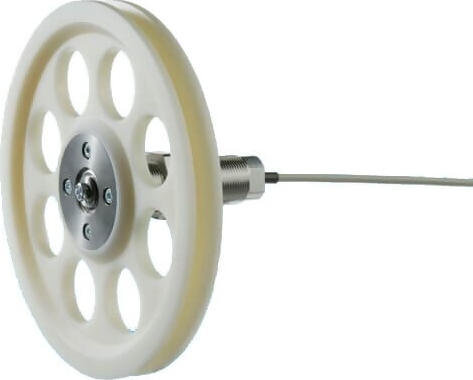

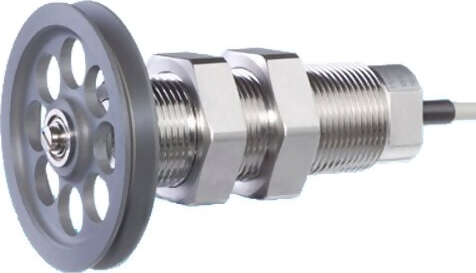

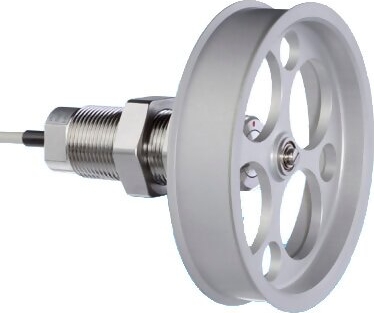

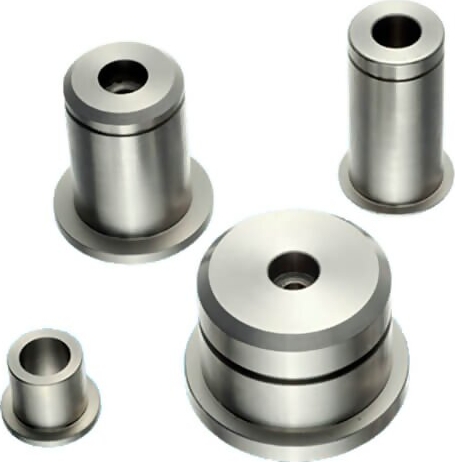

| | Wide variety of precision, ball-bearing mounted guide rollers are available | | Supplied with a 10 ft. (3 m) shielded cable. Optional lengths are available | | Custom sensor designs can be developed to meet specific applications requirements. Inquire. |
|
Tension Ranges
| Model | Range | | RFS-100 | 0-100 g (0.00-0.22 lbs) | | RFS-200 | 0-200 g (0.00-0.44 lbs) | | RFS-500 | 0-500 g (0.00-1.10 lbs) | | RFS-1K | 0-1 Kg (0.00-2.20 lbs) | | RFS-2K | 0-2 Kg (0.00-4.40 lbs) | | RFS-5K | 0-5 Kg (0.00-11.0 lbs) | | RFS-10K | 0-10 Kg (0.00-22.0 lbs) | | RFS-20K | 0-20 Kg (0.00-44.0lbs) | | RFS-50K | 0-50 Kg (0.00-110 lbs) | | RFS-100K | 0-100 Kg (0.00-220.0 lbs) | |
Related Products
|
TS621
Strain Gauge Amplifier |  |
Designed for use with a wide range of strain-gauge-based force, load and tension sensors 0-10VDC analog output | | | ___________________________________________ |
|
DPM502
Digital Tension Indicator |  |
Selectable “damping function” reduces display fluctuations 24V DC power supply with galvanic isolation | | | ___________________________________________ |
|
MU621
Tension Indicator/Amplifier Console |  |
for strain gauge sensors 1 to 4 measuring channels | | | ___________________________________________ |
|
HCC-Easy
Data Transfer & Analysis Program For Honigmann Tension Sensors |  |
Real time display of measured values graphically and digitally, indicating the actual value in tension units Export data in ASCII format | |

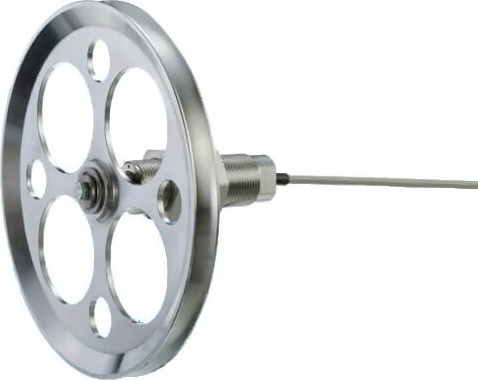

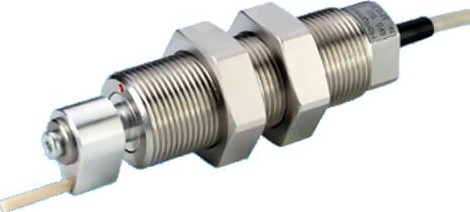

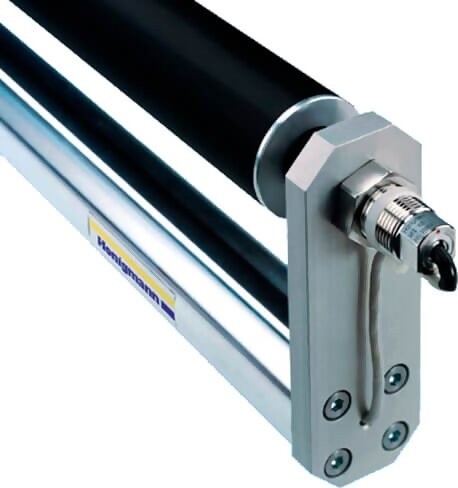

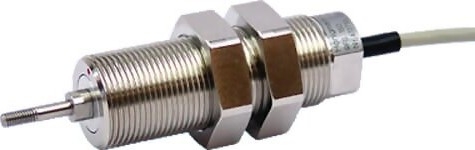

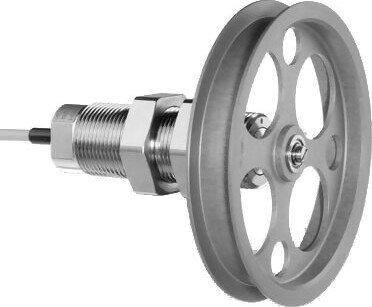

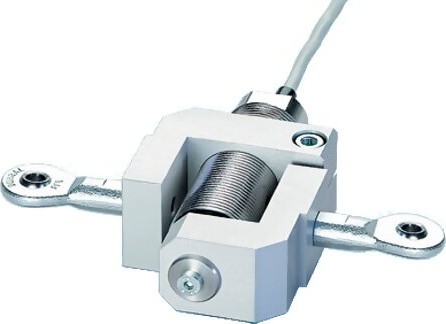

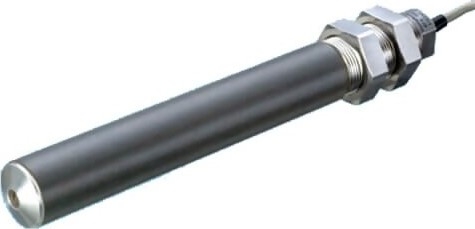

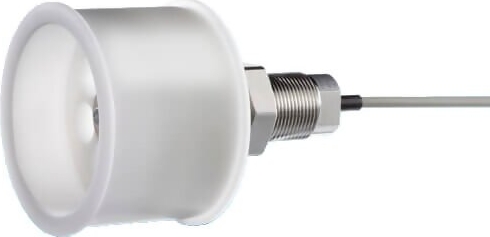

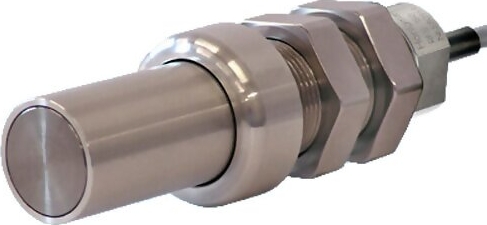

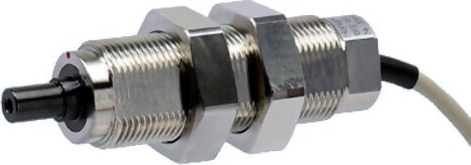

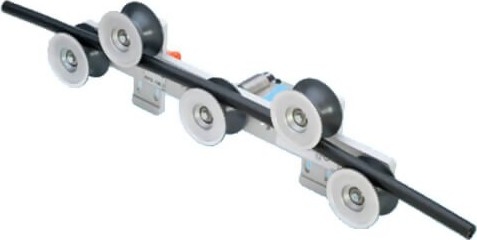

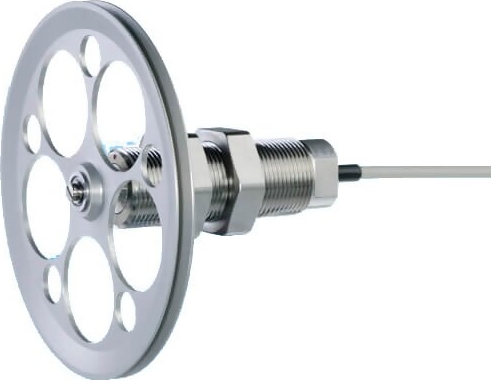

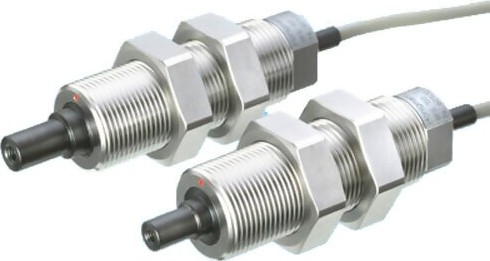

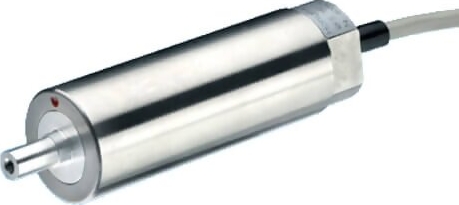

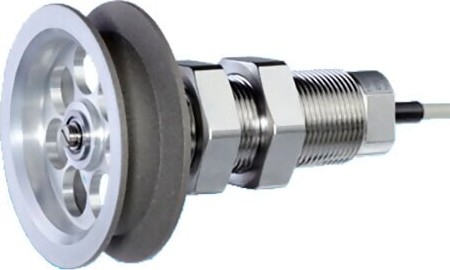

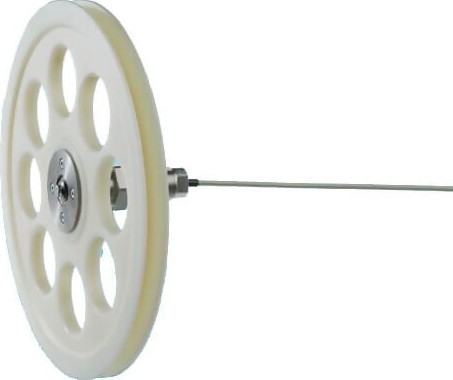

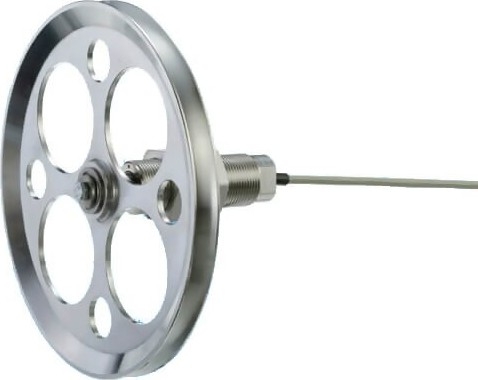

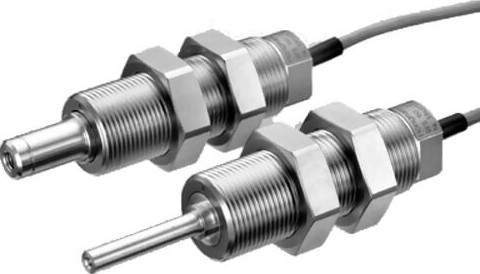

Photo Gallery - click any photo to enlarge
Tension & Force Definitions
Specifications
| Measuring Principle | Strain Gauge | | Accuracy | ±0.5% Full Scale or better | | Sensor Excitation | 10 VDC (12 VDC, max.) | | Sensor Output | 1.5 mV/V | | Input Resistance | 350 Ohms | | Output Resistance | 350 Ohms | | Overload Protection | 400 - 800% | | Deflection | 0.07mm (max.) | | Housing Material | Stainless Steel | | Environmental Protection | IP50 (Splash-Proof) | | Cable Type | 4.5 mm diameter shielded cable with bare leads | | Cable Length | 10 ft. (3 meter), longer lengths available. Inquire | | Operating Temperature | 15 to 155° F (-10 to 70° C) | | Sensor Excitation | 19 - 28 VDC
(24 VDC recommended @ 36 mA) | | Sensor Output | 0 - 10 VDC (standard)
4 - 20 mA (optional) | | Fequency Responce | 5 msec (200 Hz) | | Zero Adjustment | ±45% | | Weight | 500g |
