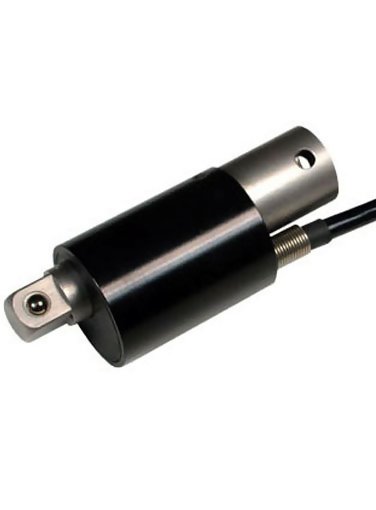

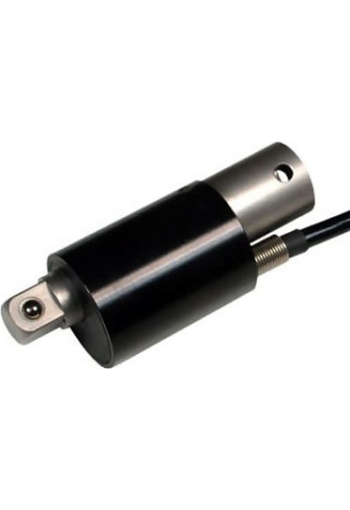

Mark-10 R54 Wrench Extension Torque Sensor

See More Force Sensors

Mark-10 R54 Wrench Extension Torque Sensor

See More Force Sensors
This product has been discontinued

Product Description
This product has been replaced by the Mark-10 R55
The R54 has been replaced by the Mark-10 R55 Square Drive Torque Sensors
Torque wrench testing
Capacities from 20 lbin to 5,000 lbin (220 Ncm to 550 Nm)
Manufacturer: Mark-10
Warranty: One Year

Convert any wrench to a torque tool with this sensor, or use it as a component of a torque testing system.

line
Features
line

  • Compatible with the 5i and 3i digital indicators
  • Stainless steel and aluminum construction

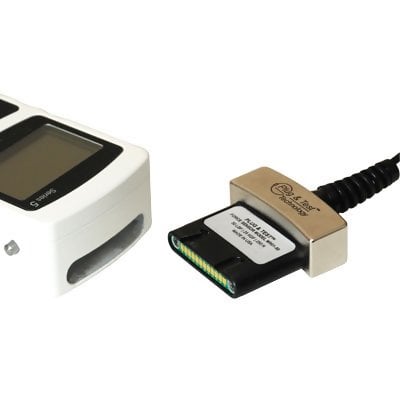

  • Unique Plug & TestTM connector holds all calibration and configuration data
  • NIST-traceable certificate of calibration included

line
Photo Gallery
line

ABQ ABQ ABQ ABQABQ

Series R54 torque sensors are rugged and repeatable, ideal for numerous applications

line
Torque Ranges
line

Model lbFin lbFft kgFmm Ncm Nm
MR54-20 20
0.02
1.5
0.002
230
0.2
220
0.2
2
0.002
MR54-50 50
0.05
4
0.005
580
0.5
570
0.5
5.7
0.005
MR54-100 100
0.1
8
0.01
1150
1
1150
1
11.5
0.01
MR54-200 200
0.2
16
0.02
2300
2
2200
2
22
0.02
MR54-400 400
0.5
32
0.05
4600
5
4500
5
45
0.05
MR54-1000 1000
1
80
0.1
11500
10
11000
10
110
0.1
MR54-5000 5000
5
400
0.5
55 kgFm
0.05 kgFm
55000
50
550
0.5


line
Specifications
line

Accuracy ± 0.6% of full scale ±1 digit + indicator
Weight From 0.6 lbs (0.27 kg) to 2 lbs (0.9 kg)
Warranty 3 years
