MX-5DL Data-Logging Ultrasonic Thickness Gauge

Price $1,695.00

Advanced Ultrasonic Gauge measures a variety of materials
Range:
0.025 - 19.99 inches
0.63 - 199.99 mm
Resolution: .001" (0.01 mm)
Alarm mode, Differential mode, high speed scanning, and data send

MX-5DL
Data-Logging Ultrasonic Thickness Gauge


Measuring Range in Steel
0.040 - 8.00 inches
1.00 - 199.0 mm

The MX-5DL Data-Logging Ultrasonic Thickness Gauge is a simple to operate Ultrasonic Thickness Gauge with an internal data logger. It offers features that make your job easier. An Alarm mode, Differential mode, high speed scanning, and data send are the main features of the MX-5 DL.

MX-5DL Data-Logging Ultrasonic Thickness Gauge will automatically log your readings in numeric order (1 to 1000 readings). The gauge comes as a complete kit, ready to use, and is backed by our 5 year limited warranty.


line
reddot Features of the MX-5DL Data-Logging Ultrasonic Thickness Gauges
line
bluedot Resolution of 0.001 inch (0.01 mm)
bluedot Large, backlit LCD display retains last reading
bluedot Simple operator controls virtually eliminate training
bluedot Special-purpose probes are offered for a variety of applications
bluedot Switch-selected units for inches or mm
bluedot CE Certified
bluedot For underwater surveying, probe cable lengths up to 50 feet are optionally
bluedot Differential Mode
bluedot Alarm Mode
bluedot RS232 output sends thickness readings to a printer, computer or other external storage device.
bluedot Automatic numeric Data Logging system 1 to 1000 readings.
bluedot Includes NIST Calibration Certificate

line

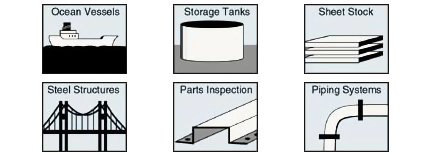

reddot Typical Applications of a MX-5DL Data-Logging Ultrasonic Thickness Gages

line typical

line
reddot Optional Accessories for the MX-5DL Data-Logging Ultrasonic  Thickness Gages

line


NIST-Traceable Steel Test Block
3 Sizes Available		NIST-Traceable Steel Test Block

bluedot Precision Machined and Finished

bluedot Includes NIST-Traceable Report and Test Data



___________________________________________


TICC-M
Protective Holder for Ultrasonic Gauges		TICC-M

bluedot Constructed from heavy duty Cordura Nylon

bluedot Built-in belt loop



___________________________________________


CF12
Coupling Fluid		CF12

bluedot Used to create an ultrasonic coupling between the probe and material to be measured

bluedot 12oz Bottle



___________________________________________


TI-25-UW-50
50 Foot Underwater Probe / Cable Assembly		TI-25-UW-50

bluedot 50 Ft. Length, Waterproof Probe/Cable assembly with non-polarized, Dual-Lemo connectors.



___________________________________________


V-Block
Transducer Holder		V-Block

bluedot The V-Block transducer holder offers the operator greater control and repeatabily when measuring on pipes and other curved areas.



___________________________________________


DataComm
Software		DataComm

bluedot Free data acquisition software




line
reddot Complete Kit of the MX-5DL Data-Logging Ultrasonic  Thickness Gauges

line

The MX-5DL Data-Logging Ultrasonic Wall Thickness Gauge
is supplied as a complete kit with the gauge, probe, 4 oz. bottle of coupling fluid, 2 AA batteries, NIST Calibration Certificate, and Operating Instruction Manual - all in a foam-fitted carrying case.
complete kit

line
reddot Measuring Limits of the MX-5DL Data-Logging Ultrasonic Wall Thickness Gauge

line

Minimum Radius for Convex Surfaces0.350" (8.89 mm)
Minimum Radius for Concave Surfaces3" (76.2 mm)
Minimum Headroom1" (25.0 mm)
Minimum Sample Diameter0.150" (3.8 mm)
Minimum Substrate Thickness - Fna
Minimum Substrate Thickness - NFena

line
reddot Specifications of the MX-5DL Data-Logging Ultrasonic Wall Thickness Gauge

line
Range in Steel0.040-8.00" (1.00-199.9 mm)
Resolution.001" (0.01 mm)
Display4½ - Digit, 0.5" Backlit LCD
Velocity Range6,500-33,000 ft./sec (2000-10,000 m/sec.)
Probe1/4", 5 MHz, actual wearface is 5/8" (17mm)
Cable4 ft. (1.2 m) waterproof cable with non-polarized, quick-disconnect connectors. Optional lengths up to 50 ft. (15 m).
Temp. LimitsAmbient: -20 to 120° F (-30 to 50° C)
Material: -0 to 200° F (-20 to 100° C
Special high temperature probes are optionally available.
Battery TypeTwo AA batteries
Battery Life200 hours
Weight7 ounces (196 g)
Size2.5 x 4.5 x 1.25"
(64 x 114 x 32 mm)
Accessories IncludedProbe/cable assembly. 4 oz. bottle of coupling fluid, NIST Calibration Certificate, 2 AA batteries, operating instructions, hard-plastic carrying case.
WarrantyGauge: 5 Years
Probes: 90 Days

line
reddot Buy Now
line


Please select the items you would like to purchase then click "Add to Cart"
Products:

MX-5DL Data-Logging Ultrasonic Wall Thickness Gauge - Model




Accessories:
Accessories for Ultrasonic Wall Thickness Gauges:









  • Manufactured by: Dakota Ultrasonics
