MX-5 Ultrasonic Thickness Gauge

Price: $1,525.00
Advanced Ultrasonic Gauge measures a variety of materials
Range:
0.025 - 19.99 inches
0.63 - 199.99 mm
Resolution: 0.001" (0.01 mm)
Alarm mode, Differential mode, high speed scanning, and data send

MX-5 Ultrasonic Thickness Gauge


Measuring Range in Steel
0.040 - 8.00 inches
1.00 - 199.0 mm

The MX-5 Ultrasonic Thickness Gauge accurately measures wall thickness and the extent of corrosion of all metals, ceramics, glass and most rigid plastics - from only one side!

The MX-5 Ultrasonic Thickness Gauge can be used in a Single Thickness Reading mode or in a Scan mode , where the probe is dragged over a large measuring area. The minimum thickness reading recorded during the "scan" will be displayed.

The MX-5 Ultrasonic Thickness Gauge  probe is waterproof and can be submerged in water. The gauge is impact-resistant and environmentally sealed to provide trouble-free operation under the toughest field conditions.

line
reddot Features of the MX-5 Ultrasonic Wall Thickness Gauge
line
bluedot Resolution of 0.001 inch (0.01 mm)
bluedot Large, backlit LCD display retains last reading
bluedot Simple operator controls virtually eliminate training
bluedot Special-purpose probes are offered for a variety of applications
bluedot Switch-selected units for inches or mm
bluedot CE Certified
bluedot For underwater surveying, probe cable lengths up to 50 feet are optionally
bluedot Differential Mode
bluedot Alarm Mode
bluedot RS-232C Serial output for sending signle data points to a printer or computer
bluedot Includes NIST Calibration Certificate

line

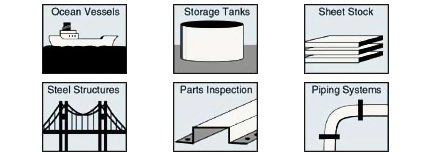

reddot Typical Applications of a MX-5 Ultrasonic Thickness Gauges
line typical

line
reddot Optional Accessories for the MX-5 Ultrasonic Thickness Gauges
line

NIST-Traceable Steel Test Block
3 Sizes Available		NIST-Traceable Steel Test Block

bluedot Precision Machined and Finished

bluedot Includes NIST Report and Test Data


___________________________________________

TICC-M
Protective Holder for Ultrasonic Gauges		TICC-M

bluedot Constructed from heavy duty Cordura Nylon

bluedot Built-in belt loop


___________________________________________

CF12
Coupling Fluid		CF12

bluedot Used to create an ultrasonic coupling between the probe and material to be measured

bluedot 12oz Bottle


___________________________________________

TI-25-UW-50
50 Foot Underwater Probe / Cable Assembly		TI-25-UW-50

bluedot 50 Ft. Length, Waterproof Probe/Cable assembly with non-polarized, Dual-Lemo connectors.


___________________________________________

V-Block
Transducer Holder		V-Block

bluedot The V-Block transducer holder offers the operator greater control and repeatabily when measuring on pipes and other curved areas.



line
reddot Complete Kit  of the MX-5 Ultrasonic Thickness Gauges

line
The MX-5 is supplied as a complete kit with the gauge, probe, 4 oz. bottle of coupling fluid, 2 AA batteries, NIST Calibration Certificate, and Operating Instruction Manual - all in a foam-fitted carrying case.
complete kit

line
reddot Measuring Limits of the MX-5 Ultrasonic Thickness Gages
line

Minimum Radius for Convex Surfaces0.350" (8.89 mm)
Minimum Radius for Concave Surfaces3" (76.2 mm)
Minimum Headroom1" (25.0 mm)
Minimum Sample Diameter0.150" (3.8 mm)
Minimum Substrate Thickness - Fna
Minimum Substrate Thickness - NFena

line
reddot Specifications of the MX-5 Ultrasonic Wall Thickness Gauge
line
Range in Steel0.040-8.00" (1.00-199.9 mm)
Resolution.001" (0.01 mm)
Display4½ - Digit, 0.5" Backlit LCD
Velocity Range6,500-33,000 ft./sec (2000-10,000 m/sec.)
Probe1/4", 5 MHz, actual wearface is 5/8" (17mm)
Cable4 ft. (1.2 m) waterproof cable with non-polarized, quick-disconnect connectors. Optional lengths up to 50 ft. (15 m).
Temp. LimitsAmbient: -20 to 120° F (-30 to 50° C)
Material: -0 to 200° F (-20 to 100° C
Special high temperature probes are optionally available.
Battery TypeTwo AA batteries
Battery Life200 hours
Weight7 ounces (196 g)
Size2.5 x 4.5 x 1.25"
(64 x 114 x 32 mm)
Accessories IncludedProbe/cable assembly. 4 oz. bottle of coupling fluid, NIST Calibration Certificate, 2 AA batteries, operating instructions, hard-plastic carrying case.
WarrantyGauge: 5 Years
Probes: 90 Days

line
reddot Buy Now
line




Please select the items you would like to purchase then click "Add to Cart"
Products:

MX-5 Ultrasonic Thickness Gauge - Model




Accessories:
Accessories for Ultrasonic Wall Thickness Gauges:








  • Manufactured by: Dakota Ultrasonics
