MX-2 Ultrasonic Thickness Gauge

Price: $1,225.00
More flexible for users that have a need to measure more than one material type
Range:
0.025 - 19.99 inches
0.63 - 199.99 mm
Resolution: .001" (0.01 mm)
Datalogging: NO

Dakota MX-2 Ultrasonic Thickness Gauge


The MX-2 Ultrasonic Thickness Gauge is ideal for the person that tests a few different materials regularly. The MX-2 Ultrasonic Wall Thickness Gauge contains 8 velocities of common materials and two velocities that the user can set using a simple sofware program.

The tool's backlit display is easy to read, even in dim light, and the unit operates for up to 200 hours on a single set of batteries.

MX-2 Ultrasonic Wall Thickness Gages come complete, ready to use, and is protected by Dakota Ultrasonics 5 year limited warranty.

Velocity Settings

The MX-2 Ultrasonic Thickness Gauge has 8 set velocities and 2 that are custom to the user's applications. The set velocities are as follows:



  • 1. Steel4340-(.233)
  • 2. Stainless Steel 303-( .223 )
  • 3. Aluminum 2024 - ( .251 )
  • 4. Cast Iron-(.179 )
  • 5. Plexiglass-(.106 )
  • 6. PVC - (.094)
  • 7. Polystyrene(.092)
  • 8. Polyurethane-(.070 )
  • 9. Custom
  • 10. Custom

line
reddot Features of the MX-2 Ultrasonic Thickness Gauges
line
bluedot Multi-function 4.5 digit liquid crystal display with 0.500 inch numerals, backlit for use in poor light conditions.
bluedot Measurements displayed in inches, inches/microsecond, millimeters, and meters/second.
bluedot Measures from 0.025 to 19.999 inches (0.63 to 199.99 millimeters) switch to select English or metric units.
bluedot Four readings per second for single point measurements.
bluedot 8 pre-set velocities and 2 custom velocities
bluedot Ability to change between velocities without the use of computer software

line

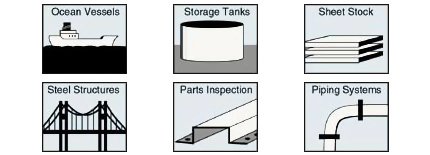

reddot Typical Applications of a MX-2 Ultrasonic Thickness Gauges
line typical

line
reddot Complete Kit of the MX-2 Ultrasonic Thickness Gauges
line



The MX-2 Ultrasonic Wall Thickness Gauge is supplied as a complete kit with the gauge, probe, 4 oz. bottle of coupling fluid, 2 AA batteries, NIST Calibration Certificate, and Operating Instruction Manual - all in a foam-fitted carrying case.
complete kit

line
reddot Measuring Limits of the MX-2 Ultrasonic Thickness Gauges
line

Minimum Radius for Convex Surfaces0.350" (8.89 mm)
Minimum Radius for Concave Surfaces3" (76.2 mm)
Minimum Headroom1" (25.0 mm)
Minimum Sample Diameter0.150" (3.8 mm)
Minimum Substrate Thickness - Fna
Minimum Substrate Thickness - NFena

line
reddot Related Products for the MX-2 Ultrasonic Thickness Gauge
line

NIST-Traceable Steel Test Block
3 Sizes Available		related

bluedot Precision Machined and Finished

bluedot Includes NIST Report and Test Data



___________________________________________



Uncertified Steel Test Block
For Ultrasonic Gauges		related

bluedot For convenient confirmation of thickness gauge calibration



___________________________________________



TICC-M
Protective Holder for Ultrasonic Gauges		related

bluedot Constructed from heavy duty Cordura Nylon


___________________________________________



CF12
Coupling Fluid		related

bluedot Used to create an ultrasonic coupling between the probe and material to be measured

bluedot 12oz Bottle



___________________________________________



TI-25-UW-50
50 Foot Underwater Probe / Cable Assembly		related

bluedot 50 Ft. Length, Waterproof Probe/Cable assembly with non-polarized, Dual-Lemo connectors.



___________________________________________



V-Block
Transducer Holder		related

bluedot The V-Block transducer holder offers the operator greater control and repeatabily when measuring on pipes and other curved areas.




line
reddot Specifications of the MX-2 Ultrasonic Thickness Gauge
line
Measuring Range0.025 to 19.999 inches
0.63 to 199.99 millimeters
Resolution0.001 inch
0.01 millimeter
Velocity Range.0492 to .3937 in/µs
1250 to 10,000 meters/sec
Dimensions2.5 W x 4.75 H x 1.25 D inches
Range in Steel0.025-6.00" (0.60-150.0 mm)
Resolution.001" (0.01 mm)
Display4½ - Digit, 0.5" Backlit LCD
Probe1/4", 5 MHz, actual wearface is 5/8" (17mm)
Cable4 ft. (1.2 m) waterproof cable with non-polarized, quick-disconnect connectors. Optional lengths up to 50 ft. (15 m).
Temp. LimitsAmbient: -20 to 120° F (-30 to 50° C)
Material: -0 to 200° F (-20 to 100° C
Special high temperature probes are optionally available.
Battery TypeTwo 1.5V alkaline or 1.2V NiCad AA cells.
Battery LifeTypically operates for 200 hours on alkaline and 130 hours on NiCad.
Weight10 ounces (283 g)
Accessories IncludedProbe/cable assembly. 4 oz. bottle of coupling fluid, NIST Calibration Certificate, 2 AA batteries, operating instructions, hard-plastic carrying case.
WarrantyGauge: 5 Years
Probes: 90 Days
