Price: $1,144.00 to $1,273.00

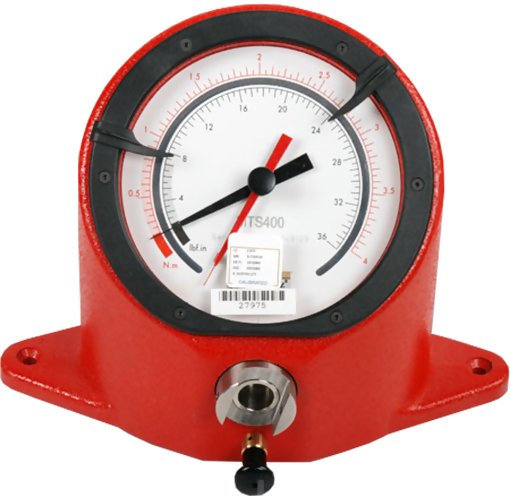

Model MTS Dial Torque Analyzer
Tests manual wrenches and drivers
6 Ranges for measuring up to 220 lbf-in / 25 N-m
Dial Torque Analyzer |
The MTS series is designed for quick and reliable torque testing on hand torque wrenches and drivers. Note:Do not use eletric or pneumatic tools. |
 Features of the MTS Dial Torque Analyzer

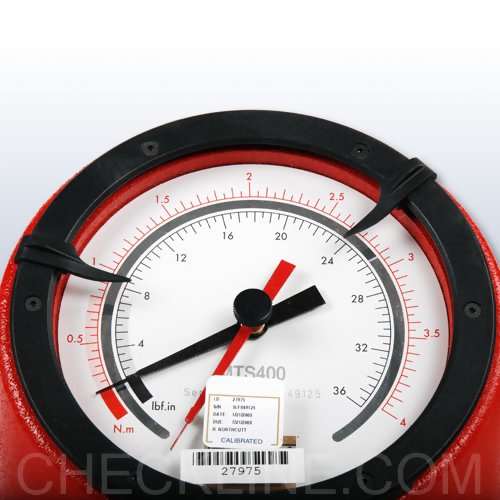

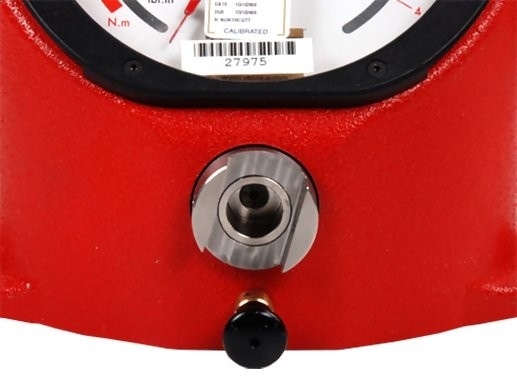

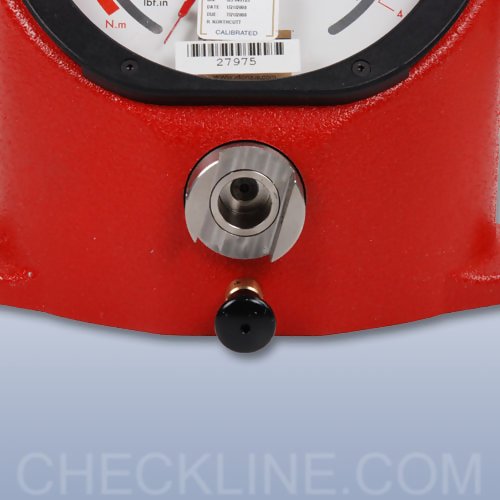

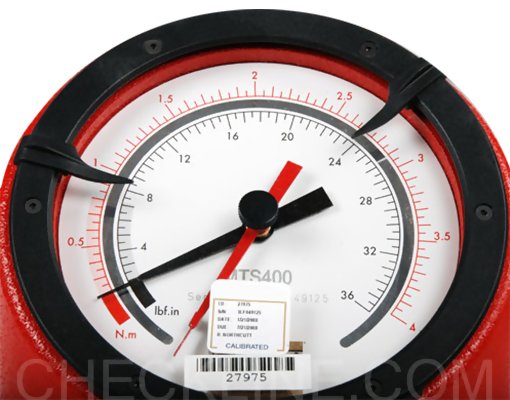

 Designed for all types of hand torque wrenches and screwdrivers. | | New robust and modern design includes angled dial for easy viewing (MTS models). | | Memory style master pointer retains maximum readings. | | Reversible drive adapters provide two drive options per model (MTS models) | | Spindle lock eliminate the need to remove tool from drive during torque adjustment (MTS models). |

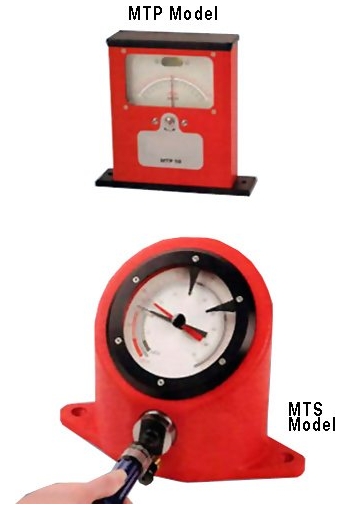

| | Bench mount style. | | Clockwise direction only (MTS models). | | Input drive shock absorber protects from tool kick back. (MTS models). | | Bi-directional & fitted with 1/4 Male Hex Drive (MTP model). | | Dial mirror eliminates parallax error. Uses pendulum effect to measure the applied torque. (MTP model) |
|

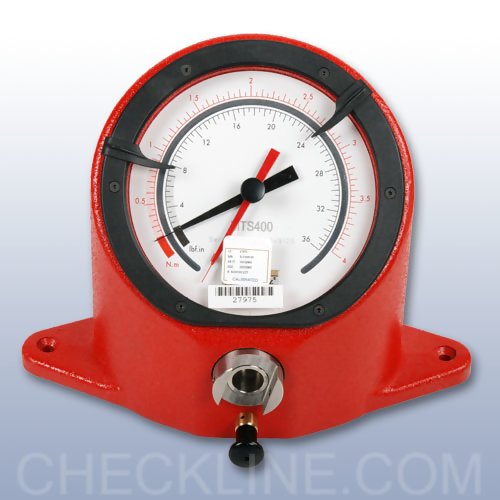

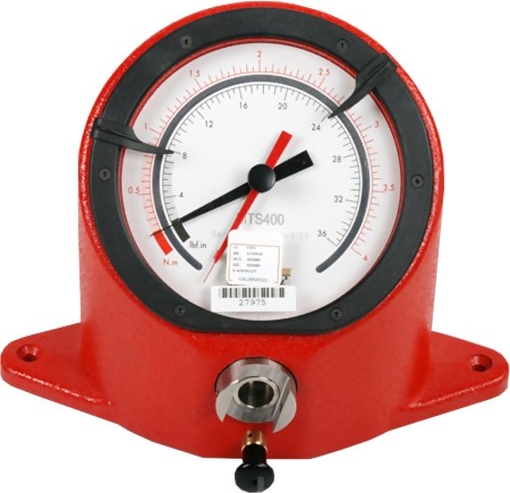

Photo Gallery for the MTS Dial Torque Analyzer - click any photo to enlarge
Force Ranges
| Model | Range | Resolution | | MTP10 | 0-14 ozf-in
0-10 cN-m | 1 ozf-in
0.5 cN.m | | MTS35 | 10-50 ozf-in
7-35 cN-m | 0.5 ozf-in
0.5 cN-m | | MTS130 | 36-180 ozf-in
26-130 cN-m | 2 ozf-in
2 cN-m | | MTS400 | 7 - 36 lbf.in
0.8 - 4 N.m | 0.5 lbf.in
0.05 N.m | | MTS1200 | 24 - 120 lbf.in
2.4 - 12 N.m | 2 lbf.in
0.2 N.m | | MTS2500 | 44 - 220 lbf.in
5 - 25 N.m | 5 lbf.in
0.5 N.m | |
| Note: Do not use eletric or pneumatic tools. | |
| |

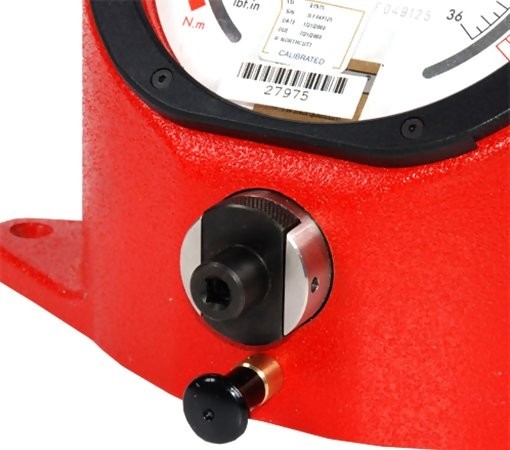

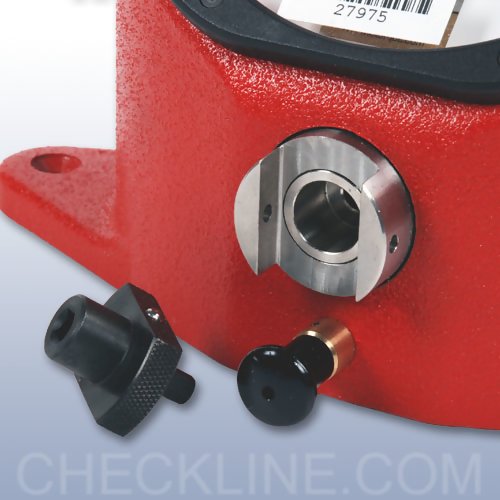

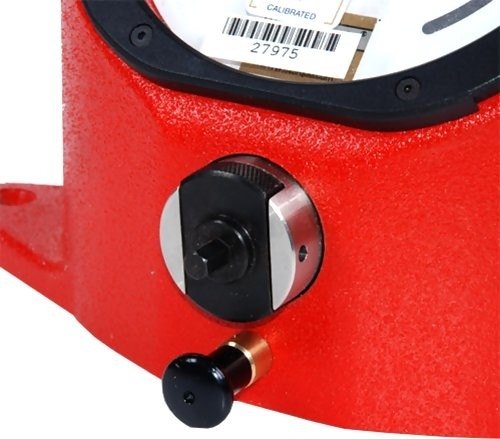

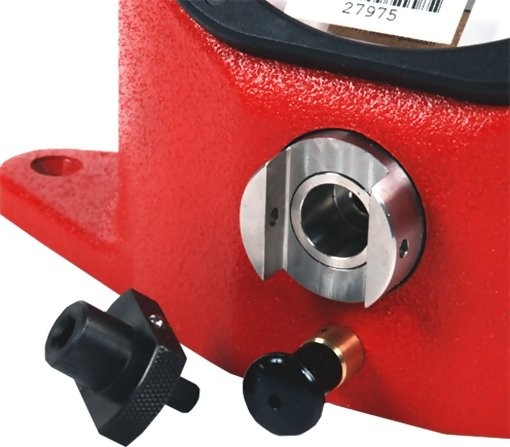

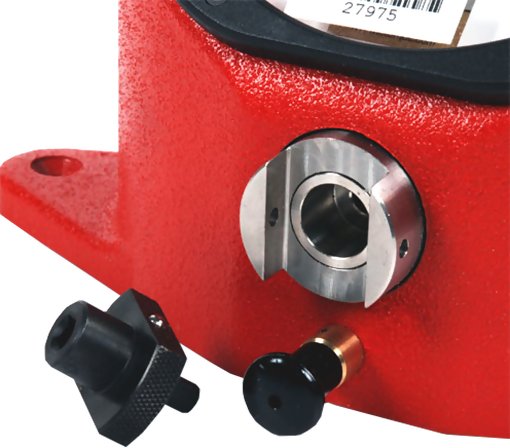

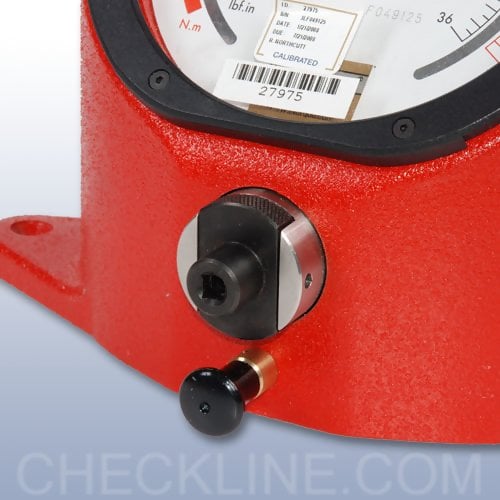

Reversible Adapter
| Reversible Drive Adapters supplied with MTS models. | |  |  |  | Model | 1/4” F/Sq. | 3/8” F/Sq. | 1/4” M/Hex | MTS35 | Yes | No | Yes | MTS130 | Yes | No | Yes | MTS400 | Yes | No | Yes | MTS1200 | Yes | Yes | No | MTS2500 | Yes | Yes | No |
|
Specifications of the MTS Dial Torque Analyzer
| Accuracy | ± 2% of reading from 20% to 100% of full scale | | Weight | MTP:2.16 lbs
MTS: 7.1 lbs | | Dimensions | MTP: 215mm x 55mm x 206mm
MTS: 250mm x 120mm x 182mm |
