MMX-6DL Data Logging Through Paint Ultrasonic Thickness Gauge

Price: $1,995.00

MMX-6DL Data Logging Through Paint Ultrasonic Wall Thickness Gauge


Measuring Range in Steel
Pulse-Echo Mode (Pit & Flaw Detection) measures from 0.025 to 19.999 inches (0.63 to 500 millimeters).
Echo-Echo Mode (Through Paint & Coatings) measures from 0.1 to 1 inch (2.54 to 25.4 millimeters).

The new CHECK-LINE MMX-6DL Wall Thickness Gauge accurately measures wall thickness and the extent of corrosion of all metals, ceramics, glass and most rigid plastics - from only one side!

The MMX-6DL can be used in a Single Thickness Reading mode or in a Scan mode, where the probe is dragged over a large measuring area. The minimum thickness reading recorded during the "scan" will be displayed.

The MMX-6DL incorporates a built-in memory for 1000 data points that can be separated into 10 separate "batches." The stored data can be downloaded to a serial printer or a personal computer. A Windows compatible data transfer program is supplied at no additional cost.

The MMX-6DL probe is waterproof and can be submerged in water. The gauge is impact-resistant and environmentally sealed to provide trouble-free operation under the toughest field conditions.


line
reddot Features of the MMX-6DL Data Logging Through Paint Ultrasonic Wall Thickness Gauge
line
bluedot Ability to measure through paint and eliminate coatings
bluedot Resolution of 0.001 inch (0.01 mm)
bluedot Large, backlit LCD display retains last reading
bluedot Simple operator controls virtually eliminate training
bluedot RS-232C Serial output for downloading stored data to a printer or computer
bluedot Memory for 1000 data points in up to 10 batches
bluedot Special-purpose probes are offered for a variety of applications
bluedot Switch-selected units for inches or mm
bluedot For underwater surveying, probe cable lengths up to 50 feet are optionally
bluedot CE Certified
bluedot Includes NIST-Traceable Calibration Certificate

line
reddot Measuring Limits of the MMX-6DL Data Logging Through Paint Ultrasonic Wall Thickness Gauge
line

Minimum Radius for Convex Surfaces0.350" (8.89 mm)
Minimum Radius for Concave Surfaces3" (76.2 mm)
Minimum Headroom1" (25.0 mm)
Minimum Sample Diameter0.150" (3.8 mm)
Minimum Substrate Thickness - FNA
Minimum Substrate Thickness - NFeNA

line
reddot Complete Kit of the MMX-6DL Data Logging Through Paint Ultrasonic Wall Thickness Gauge
line
The MMX-6DL is supplied as a complete kit with the gauge, probe, 4 oz. bottle of coupling fluid, 2 AA batteries, NIST-Traceable Calibration Certificate, data transfer software, serial output cable and Operating Instruction Manual - all in a foam-fitted carrying case.
complete kit

line
reddot Specifications of the MMX-6DL Data Logging Through Paint Ultrasonic Wall Thickness Gauge
line
RangePulse-Echo Mode(Pit & Flaw Detection) measures from 0.025 to 6.000 (up to 19.999 inches if uncoated using T-102-2000 probe)
0.63 to 150 millimeters (up to 500 mm if uncoated using T-102-2000 probe).
Echo-Echo Mode (Through Paint & Coatings) measures from 0.1 to 1 inch (2.54 to 25.4 millimeters).
Resolution.001" (0.01 mm)
Display4½ - Digit, 0.5" Backlit LCD
Velocity Range0.0492 to .3937 in./µs. (1250 to 10,000 meters/second)
Probe5 MHz, 0.25" Diameter (6.35 mm)
Probe WearfacePEEK (Polyethlethylketone)
Cable4 ft. (1.2 m) waterproof cable with non-polarized, quick-disconnect connectors. Optional lengths up to 50 ft. (15 m).
Temp. LimitsAmbient: -20 to 120° F (-30 to 50° C)
Material: 0 to 200° F (-20 to 100° C) Special high temperature probes are optionally available
Serial OutputRS-232C (8, N, 1, user-set baud rate)
Battery TypeTwo AA batteries
Battery Life200 hours
Weight7 ounces (196 g)
Size2.5 x 4.5 x 1.25"
(64 x 114 x 32 mm)
Accessories IncludedProbe/cable assembly. 4 oz. bottle of coupling fluid, NIST Calibration Certificate, 2 AA batteries, operating instructions, hard-plastic carrying case.
WarrantyGauge: 5 Years
Probes: 90 Days

line

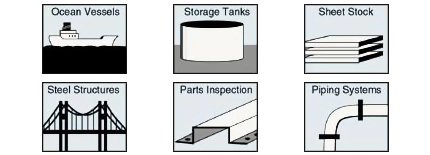

reddot Typical Applications of a MMX-6DL Data Logging Through Paint Ultrasonic Wall Thickness Gauge
line typical

line
reddot Optional Accessories for the MMX-6DL Data Logging Through Paint Ultrasonic Wall Thickness Gauge
line

NIST-Traceable Steel Test Block
3 Sizes Available		NIST-Traceable Steel Test Block

bluedot Precision Machined and Finished

bluedot Includes NIST-Traceable Report and Test Data

bluedot Includes Wooden Storage Box


___________________________________________

Uncertified Steel Test Block
For Ultrasonic Gauges		Uncertified Steel Test Block

bluedot For convenient confirmation of thickness gauge calibration


___________________________________________

TICC-M
Protective Holder for Ultrasonic Gauges		TICC-M

bluedot Constructed from heavy duty Cordura Nylon

bluedot Built-in belt loop


___________________________________________

CF12
Coupling Fluid		CF12

bluedot Used to create an ultrasonic coupling between the probe and material to be measured


___________________________________________

V-Block
Transducer Holder		V-Block

bluedot The V-Block transducer holder offers the operator greater control and repeatabily when measuring on pipes and other curved areas.


___________________________________________

DataComm
Software		DataComm

bluedot Free data acquisition software
