MikroTest Digital 7 Series

Price: $575.00 to $595.00
MikroTest Digital 7 Coating Thickness Measurement
Digital Display
Type I gauge classification
Measuring range up to 15.0 mm (590 mils)

Mikro Test Digital Coating Thickness Measurement

The MikroTest Digital Coating Thickness Measurement is classified as a "Type I" gauge because it uses the magnetic attraction principle however because the readings are electronically controlled and the reading is digitally displayed, the MikroTest has the greatest accuracy and highest resolution in it’s class of magnetic pull off devices. And because the reading is digitally displayed there is no chance for a scale interpretation error. Simply the best !

For all non-magnetic coatings on steel, e.g. paint, plastics, enamel, rubber, copper, zinc, tin etc.

  • Proven measuring principle
  • No calibration required
  • High resolution of measuring values
  • International patents
  • Measuring range up to 15 mm

mikro test digital 7 series


line
reddot Proven Measuring Principle
line

Coating thickness measurement using the magnetic attraction principle has proved to be reliable, accurate and easy to operate for more than 50 years.
The MikroTest® has set a standard in all industrial areas worldwide where corrosion protection has a high priority. Close to a Million MikroTest® gauges have been supplied over the years.
The measuring principle is still based on the attraction force of a permanent magnet on steel as described in international industrial standards:
DIN EN ISO 2178, DIN EN ISO 2808, DIN 50 982, ASTM B499, E376, D1186, G12.

line
reddot High Resolution of Measuring Values
line

When measuring thin coatings, the readings are displayed in increments of 1 or 0.5 microns. The instrument also benefits high accuracy (unmatched so far) for the measurement of high thickness values.

line
reddotEasy to Operate
line

For taking a reading just press the button and read the coating thickness on the display in microns or mils.


mikro test digital 7 series

line

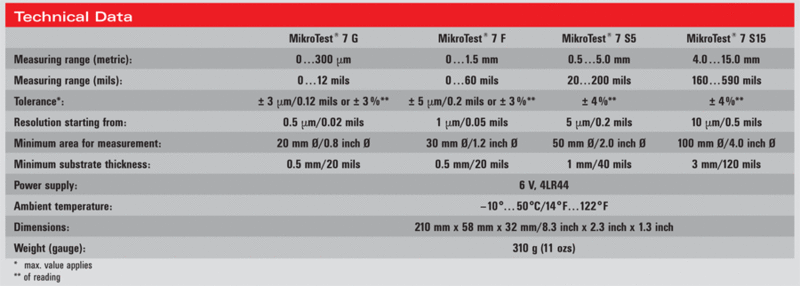

reddot Specifications of the Mikro Test  Digital 7 Series
line


Click here to view Technical Data


line
reddot Downloads for the Mikro Test Digital 7 Series
line


newsPDF Data Sheet Click to download

line
reddot Buy Now
line


Please select the items you would like to purchase then click "Add to Cart"
Products:

MikroTest Digital 7 Coating Thickness Gauge - Model







  • Manufactured by: ElektroPhysik
