LTT Torque and Angle Analyzer

Price: $2,750.00 to $2,950.00
LTT Torque and Angle Analyzer
Recommended for all hand screwdrivers, wrenches or power tools.
8 Ranges up to 250 Lb-ft.

LTT Torque and Angle Analyzer


The new LTT is the next generation of torque analyzer. It offers “EZ-Plug & Play” with instant auto recognition with transducers. The LTT offers tool testing, graphing capabilities and a graphical menu for easy navigation.

The LTT includes three PC Windows based software programs:
Torque Meter Interface Program - for sensor calibrations, meter calibration and tool tests.
Torque Meter Bootloader - for updating the LTT operating systems.
Statistics Calculator - for SPC, CP & CPK calculations.


line
reddot Features of the LTT Torque and Angle Analyzer
line
bluedot Accuracy +/- 0.5% of reading from 20% to 100% of full scale.
Accuracy +/- 1% of reading from 10% to 20% of full scale.
bluedot Provides “EZ-Plug & Play.” Features an instant auto-recognition system of the transducer connected to the LTT.
bluedot Built-in Tool Tests operation.
bluedot Stores a total of 2500 data points.
bluedot Seven units of torque measurements: (ozf.in, lbf.in, lbf.ft, cN.m, N.m, kgf.m, kgf.cm). Two units of force measurements: (lbf and kN)
bluedot Recommended for all hand screwdrivers, wrenches or power tools.
bluedot "Flash" memory allows upgrades to be done by the user in the field & internet through the USB port.
bluedot Selection of six operating modes: (Track, Peak, First Peak, Audit, Torque + Angle, and Tool Test).

line
reddot Force Ranges
line
ModelRangeDrive
Size
LTT-10i1-10 lbf-in
11.3 - 113 cN-m
1.2 - 11.5 kgf-cm		1/4" F/Sq
LTT-25i2.5-25 lbf-in
28.25 - 282.5 cN-m
2.9 - 28.8 kgf-cm		1/4" F/Sq
LTT-50i5 - 50 lbf-in
56.5 - 565 cN-m
5.8 - 57.6 kgf-cm		1/4" F/Sq
LTT-100i10 - 100 lbf-in
113 - 1130 cN-m
11.5 - 115 kgf-cm		1/4" F/Sq
LTT-250i25 - 250 lbf-in
282.5 - 2825 cN-m
28.8 - 288 kgf-cm		1/4" F/Sq
LTT-50F5 - 50 lbf-ft
6.8 - 67.8 N-m
0.7 - 6.9 kgf-m		3/8" F/Sq
LTT-100F10 - 100 lbf-ft
13.56 - 135.6 N-m
1.4 - 13.8 kgf-m		1/2" F/Sq
LTT-250F25 - 250 lbf-ft
33.9 - 339 N-m
3.5 - 34.5 kgf-m		1/2" F/Sq
line
reddot Related Products for the LTT Torque and Angle Analyzer
line

TT-BCR
Bar Code Reader		related


___________________________________________


BLRTSX
Brushless Rotary Torque Transducer		related

bluedot The common "brush bounce" that plagues the accuracy testing of pulse tools is cured when using a brushless rotary transducer.


___________________________________________


RTSX
Rotary Torque Transducer		related

bluedot Accuracy +/-.25% of full scale.

bluedot Use with most hand tools, power tools or rotational measurement applications.


___________________________________________


RTSX-A
Rotary Torque and Angle Transducer		related

bluedot Accuracy ± .25% of full scale.

bluedot Angle Output: 2 channel quadrature, 360 pulses per rotation.



line
reddot Tool Tests & Graphing
line

The LTT allows you to set up and create tool tests and save the readings so you can export the data to a PC for documentation. It’s the ideal solution for organizing and storing test data for ISO and SPC documentation.

The ability to graph a dynamic rundown allows joint analysis. Great resource to evaluate create or confirm a torque specification or toll being used in production.

The "Statics Calculator" allows operators to perform basic SPC, CP and CPK calculations.


line
reddot Cable Chart
line
TransducerCable Item #List Price
RTSX-AA072000$120.00
BLRTSX072001$120.00
BMX072002$120.00
SDX072004$120.00
RTSX072005$120.00
ETX072006$120.00
*Contact Customer Service for connecting a SMX to the LTT
line
reddot Standard Accessories
line

Universal Charger (100 - 240 VAC)
USB Cable
Software - Torque Meter Interface Program
Software - Torque Meter Bootloader
Software - Statics Calculator
Protective Cover


line

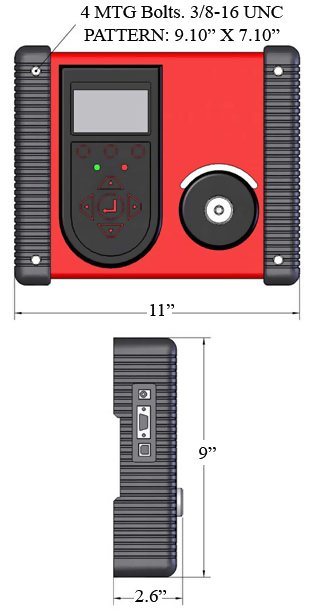

reddot Dimensions of the LTT Torque and Angle Analyzer
line dimensions




Please select the items you would like to purchase then click "Add to Cart"
Products:

LTT Torque and Angle Analyzer - Model











  • Manufactured by: Mountz
