HTG2 Digital Torque Gauge

Price: $1,295.00 to $1,485.00
HTG2 Digital Torque Gauge
4 Ranges up to 85.00 lbf-in
Units of measure: lbf-in, kgf-cm, and N-cm (selectable)
Programmable high/low setpoints


Digital Torque Gauge with programmable setpoints

Imada HTG2 Digital Torque Gauge offers programmable high/low setpoints for go/no-go testing. ORANGE lights up for measurements less than Low setpoint, GREEN for between High and Low setpoint, and RED for over High setpoint.

Store up to 1,000 values in memory, which can be displayed or transmitted using serial output. Use the real time mode to display torque transients, or the peak mode to capture the peak torque achieved during a test. Selectable measuring units of lbf-in, kgf-cm, or N-cm.

HTG2 digital torque gauges are sold in kits which include the gauge, sensor, six foot cable, and AC adapter/charger. Built-in NI-MH rechargeable batteries.

line
reddot Features of the HTG2 Digital Torque Gauge
line

bluedot User-selected units of Pounds, Kilograms or Newtons
bluedot RS-232C, Digimatic and Analog outputs
bluedot Runs on internal NiCad batteries or AC adapter
bluedot 1000 Data memory for computer download
bluedot Display "real-time" or "peak" force
bluedot Both clockwise and counterclockwise operation
bluedot Tare function
bluedot Overload capacity 200% of F.S.
bluedot Ergonomic design with non-slip rubber grip, heavy duty metal construction
bluedot Overload alarm and output signal
bluedot Includes NIST Calibration Certificate
bluedot 2 Year Warranty
bluedot ISO/IEC 17025 Long-form Certificate & Test Data is optionally available

line
reddot Force Ranges
line
ModelCapacityResolution
HTG2-470.00 ozf-in
5.000 kg-cm
50.00 N-cm		0.01 oz-in
0.001 Kg-cm
0.01 N-cm
HTG2-1515.00 lbf-in
20.00 Kg-cm
200.0 N-cm		0.01 lb-in
0.01 Kg-cm
0.1 N-cm
HTG2-4040.00 lbf-in
50.00 Kg-cm
500.0 N-cm		0.01 lb-in
0.01 Kg-cm
0.1 N-cm
HTG2-8585.00 lbf-in
100.0 Kg-cm
1000 N-cm		0.1 lb-in
0.1 Kg-cm
1 N-cm
line
reddot Chuck Sizes & Min / Max Sample Diameters
line
Chuck Sizes
ModelStandardOptional (*L)
HTG2-44mm / 0.160"NA
HTG2-156.5mm / 0.260"13mm / 0.512"
HTG2-406.5mm / 0.260"13mm / 0.512"
HTG2-856.5mm / 0.260"13mm / 0.512"
*For 13mm Chuck add "-L" to part # ie: HTG2-15L

Min/Max Sample Diameters
Chuck SizeMin SampleMax Sample
4mm / 0.160"0.3mm / 0.012"4mm / 0.160"
6.5mm / 0.260"0.5mm / 0.020"6.5mm / 0.260"
13mm / 0.512"0.7mm / 0.028"13mm / 0.512"

line
reddot Complete Kit of the HTG2 Digital Torque Gauge
line
The HTG2 is supplied as a complete kit that includes the Torque gauge with 1 sensor and pin chuck (standard Model TA-00), connecting cable 2m long, instructions and manufacturer's calibration report
complete kit

line

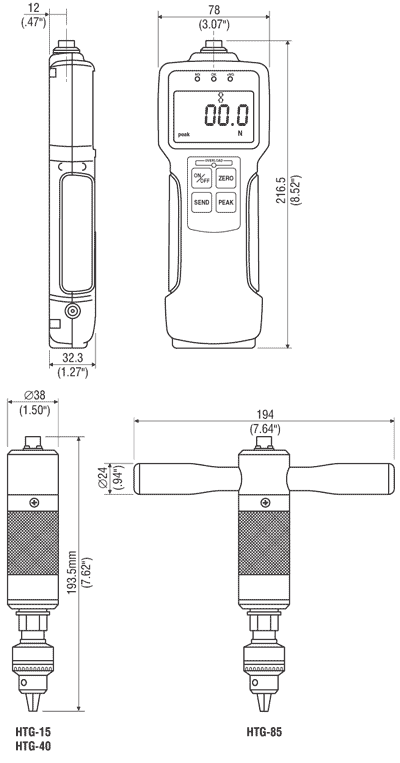

reddot Dimensions of the HTG2 Digital Torque Gauge
line dimensions

line
reddot Related Products for the HTG2 Digital Torque Gauge
line

SW-1
Data Acquisition Software for Force Gauges & Torque Gauges		related

bluedot Full SPC and graphing capabilities

bluedot Automates your data collection

bluedot Provides a running log of all measurements along with a chart of the data as well as statistical information

___________________________________________


MGT
Digital Torque Gauge		related

bluedot Display "real-time" or "peak" force

___________________________________________


DI-5N-RL
Digital Torque Screw Driver		related

bluedot Peak, Real Time and Peak Down measuring mode (selectable)

___________________________________________


DSD-4
Torque Screwdriver		related

bluedot Peak, Real Time and Peak Down measuring mode (selectable)

bluedot Both CW and CCW operation

bluedot 400 data memory for recall or for SPC download

___________________________________________


NIST CAL
related


line
reddot Specifications of the HTG2 Digital Torque Gauge
line
Accuracy:± 0.5 % Full scale ± 1 digit
Sampling Rate30 times/s
Display:4 digit, 14 mm high
Overload capacity:150 % Full scale (flashing LED beyond 108% full scale) open collector output signal
Zero adjustment:10% Full scale
A/D converter:16 bit
Memory:non-volatile, recall up to 960 loads, recall both peaks, open and close torque
Setpoints:Min, Max (programmable), with output signal
Output signal:RS232C (8,1,N,19200), analog ± 2V DC, Open collector 4x (+NG, Ok, -NG, OVL), max. 30V DC, 10mA, Mitutoyo Digimatic
Temperature range:5 - 45°C
Air humidity:85% RH, max.
Power supply:Rechargeable NiCd battery pack (approx. 8 hours continuous use) and/or 230 V AC adapter
Housing dimensions: (approx.)215 x 65 x 51 mm (L x W x H)
Sensor: 150x39mm (lxdiam.)
Weight: (approx.)Display unit: 440g / Sensor: 530 g
Complete set: 2000 g
Warranty2 Years
