HATE Hydraulic Adhesion Tester

HATE Hydraulic Adhesion Tester

The HATE Adhesion Tester or Pull Off Tester measures with ease and precision the adhesion bond strength of applied coatings. One of the most accurate and versatile adhesion testers currently available.

The adhesion is measured by the tensile pull on a Dolly glued to the coating surface. The force is applied through the centre of the Dolly by a hydraulically loaded pin. This ensures an exactly central point loading of the force.

Adhesion values are recorded by a pressure gauge giving a 1:1 pressure reading. This is made possible as the net surface area of the Dolly is equal to the surface area of the hydraulic piston bore. Pressure reacted by the Dolly is the same as the pressure in the bore and is transmitted directly to the pressure gauge. The maximum value achieved at pull-off is recorded by a reset needle that is easily read on the large scale of the pressure gauge.

Connection to the stainless steel Dolly is easily made with a snap-on connector. The pressure gauge is swivel-mounted allowing testing in any position. This is significant as coating breakdown invariably starts at positions that were difficult to reach during surface preparation and application.

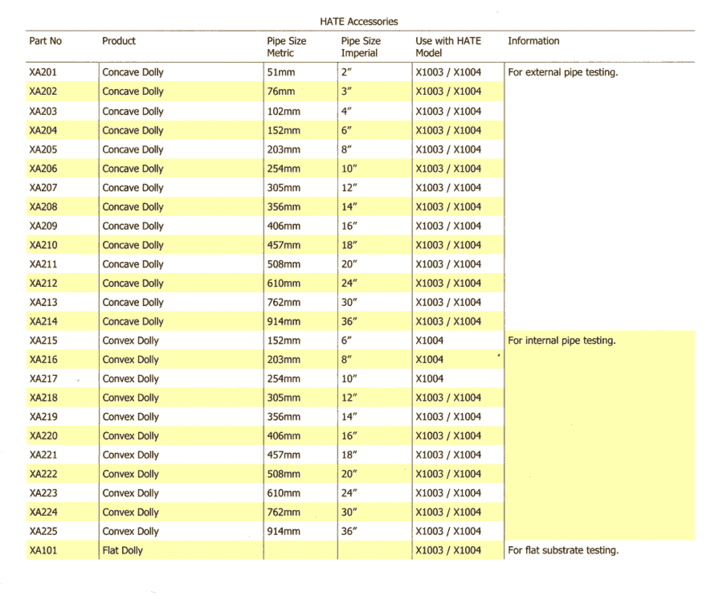

Can test both external and internal surfaces of pipes. Because the load is reacted internally within the Dolly, curved surfaces of pipes can be easily tested. To obtain a uniform tensile load, curved Dollies machined to match the diameter under test need to be used. External diameters as small as 25mm (1”) and internal diameters as small as 150mm (6”) can be tested.

Effective quality control with a non-destructive capability. To allow the specification minimum to be proven the Dolly can be removed using the heated Dolly remover supplied. If necessary, the Dolly can be left in place for testing during service as part of a planned maintenance programme.

Complies with International Standards:ISO 16276-1, ISO 4624, ASTM D 4541, and NF T30-606.

Supplied with 5 Flat Dollies, Adhesive, Dolly Remover and Carrying Case.
