GP-15 General Purpose Grip

Price: $85.00
General Purpose Grip
For film, paper, labels, packaging, and other thin materials for tensile and peel testing
Max Sample Thickness: 4mm / 0.16"

GP-15 General Purpose Grip

Width: 15m / 0.59"
Max Sample Thickness: 4mm / 0.16"

The GP-15 general purpose grip is designed for gripping film, paper, labels, packaging, and other thin materials for tensile and peel testing. Adjustable serrated interlocking jaws effectively grip the samples for up to 110 lb of force. Use them with a force gauge and a test stand to create a complete testing system

line
reddot Features
line



line

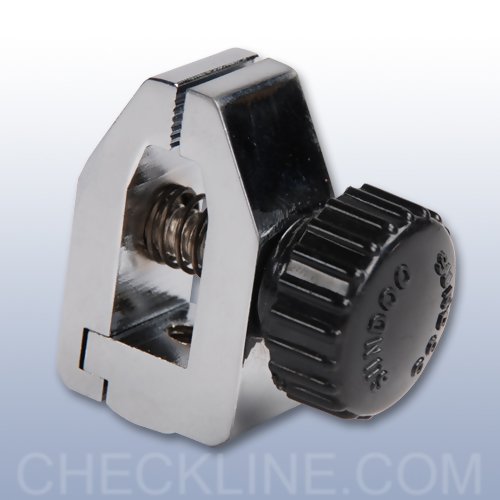

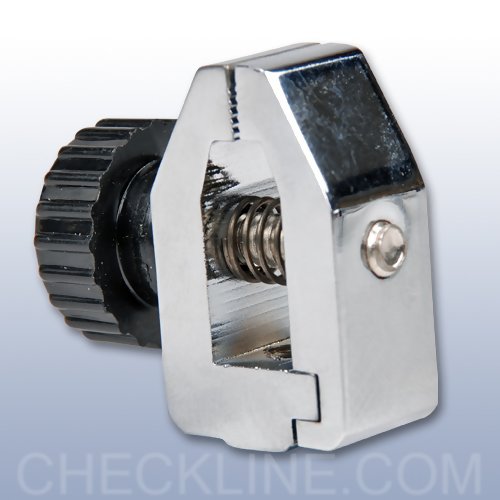

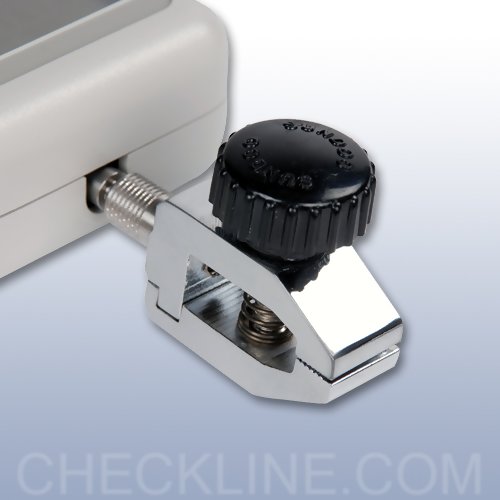

reddot Photo Gallery - click any photo to enlarge
line



line

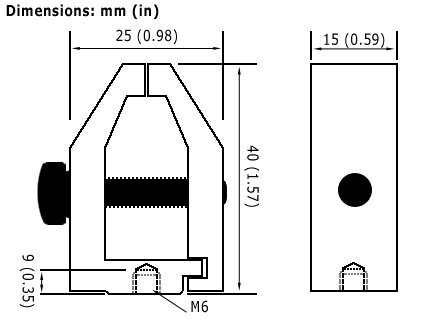

reddot Dimensions
line dimensions

line
reddot Specifications
line
Capacity 110 lbs.
Width 15m / 0.59"
Maximum Sample Thickness 4mm / 0.16"
Thread Size M6 Female

line
reddot Buy Now
line


Please select the items you would like to purchase then click "Add to Cart"
Products:

GP-15 General Purpose Grip - Model




Accessories:
Accessories for Force Gauge Attachments:



  • Manufactured by: Mark-10
