FGS-200PV E-Force Test Stand (200 lb capacity)

E-Force Test Stand

PC Control with Software

200lb Capacity

Price: $7,000.00

E-Force Test Stand (200 lb capacity)

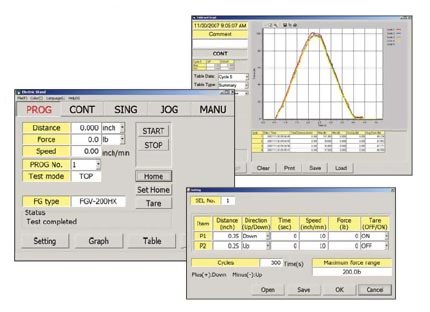

The E- Force test stand features bi-directional USB which speeds data communications with almost any PC or lap top computer. The E-Force firmware displays prompts and menus that guide the user through all programs, setups and final tests. Windows® like software permits users to perform standard tests, plus Pull or Push to break, Pull or Push to specified load and cycling. E-Force software provides force vs displacement or time to be displayed and the results collected in tabular and graphical format. This information can then be exported to Microsoft® Office products like Excel®.

The E-Force features precision servo gear head and ball screw drive for confident and complete control of the test stand.

All programming of return speed, test speed, distance/deflection set points, cycles, force set points are performed using a PC/Lap top or through the front panel control keypad. (Push and Pull to Break and Yield Tests controlled through a PC or Lap Top only.)

The large and easy to read back lit digital display indicates all programmed set points, and indicates test, status of the program set up, force loads and overload alarm warnings. The E-Force provides selectable units of measure in force units. (Lbs., Oz, Kg, N and distance Inches or mm)

The E-Force can be equipped with a variety of accessories including grips and compression fixtures.

The large sample area and 3.38” inch (86mm) throat depth provides for unique and large parts to be tested. Metric English threaded – adjustable base plate provided. A precise and consistent 0.06 to 400 mm/min (0.02 to 15.7 in/min) cross head speed provides for ultra slow creep tests and constant load testing.

Features

PC Control with Software

Auto reverse for test modes

Single model with wide speed range

Easy force gauge (load range) changing

Intuitive and easy to use front panel controls

Hands off operation, reduces errors, speeds tests

High Speed return to “home” saves time in multi parts testing

Meets many testing needs

Provides for multiple test ranges (0.5 to 200 lbs. (200 gram, 2 N - 100Kg, 1000N)

Reduces operator training time

5 Modes of Operaton - Pre-Loaded Test Software

1. Manual - push button up and down control
2. Jog - press and release for positioning of parts and force gauge
3. Single - allows one cycle operation (up/down)
4. Continuous - ideal for fatigue or repetitive testing
5. Programmable:

PC controlled and Test Stand controlled
Save and recall test parameters
Top Load TEsting
Tensile Break
Compression Break

Applications


Syringe Test	Pill Crush

Surgical Tubing Catheter Test	Automotive Hood Piston Test

Electrical Wire & Terminal Crimp Test	Spring Test

Commercial QA/QC Test

Related Products

FGV-XY
Digital Force Gauge with USB Output

Accuracy of ±0.2%
providing superb repeatability

9 separate capacities from 0.5 Lb to 200 Lb
select the best range without forfeiting accuracy

Specifications

Capacity	200 lbs (100 kgf)
Reduction Ratio	1:20
Precision Ball Screw Pitch	4mm / 1 Rotation
Stroke	400 mm (15.7 inch)
Travel Speed	0.6 mm/min (0.02 inch/min) - 400 mm/min (15.7 inch/min)
Drive System	Servo Motor (Trapezoidal thread (pitch 4mm / 1 rotation)
Speed Setting	Selectable Speed Knobs (Speed A and Speed B)
Display	5 digit LED
Cycle (max)	1 - 9,999 times
Analog Signal Output	5 mV/ mm max +/- 2 V (400 mm)
Operating Modes	MANUAL - Operates to selectable force limits JOG - Operates while direction key is pressed SINGLE - Operates one cycle between upper and lower force limits CONTINUOUS - Cycles test between upper and lower force limits.
Program	Specific Program Tests (each can store 5 programs on each type) TOP: Top Load test with threshold option STD: Standard test with preload option BREAK: Break point test with force drop detection
Communication Feature	USB 1.1 communication from Test stand to PC
Communication Software	Windows based program, virtual front panel compatible with Windows XP/2000
Alarm	Overload protection for test stand motor (stops motor when overload condition occurs).
Work Space	200 mm (7.87 inch) X 280 mm (11.02 inch)
Operating Temperature	0 - 45 degrees Celsius (Non-condensing)
Power Supply	120 V AC/ 60 hz
Weight	23 Kg (50 lbs)
