ESMH Motorized Horizontal Test Stand

Motorized Horizontal Test Stand
50lb Capacity
Price: $2,850.00 to $3,850.00

Motorized Horizontal Test Stand


The new ESMH is a 50 lb capacity horizontal test stand designed for tension, compression, and friction testing. A smooth top surface makes this tester particularly well suited for coefficient of friction testing. Other typical applications include the testing of sealed pouches, fabrics, tubing, sutures, and many other items in virtually every industry.

The tester features integrated limit switches for repetitive testing or other tests where travel limits are required. Modular design accommodates a wide variety of test sample shapes and sizes. The ESMH uses a remote control unit, distancing the operator from the test for added safety and convenience. Use this test stand with a force gauge and grips to create a complete testing solution.

*NOTE: Shown with optional equipment, force gauge and attachments sold separately.

line
reddot Features
line
bluedot Mounting Holes for bench mounting
bluedot Removable loading plate with matrix of #10-32 threaded holes
line
reddot Related Products
line
BG
Digital Force Gauge
related

bluedot RS-232, Mitutoyo and analog outputs

bluedot Selectable units of measurement

___________________________________________

MG
Economical Digital Force Gauge - Push Pull Gauge
related

bluedot User-selected units of Pounds, Kilograms or Newtons

bluedot 3 Year Warranty

line

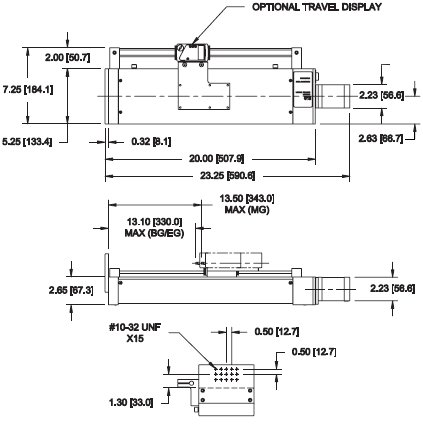

reddot Dimensions
line dimensions
line
reddot Specifications
line
Capacity50 lbs / 25 Kg / 250 N
Stroke13" [330 mm], 12" [305 mm] w/optional travel display
Travel Rate0.2 - 50 in/min [5 - 1270 mm/min]
Speed Accuracy±5% of setting, ±0% variation with load
Limit Switch Repeatability±0.001" [0.03 mm]
DimensionsRefer to Dimensions above
Compatible GaugesBG and MG
Warranty3 years
line
reddot Download
line
manualData Sheet Click Here to Download
manualInstruction Manual Click Here to Download
line
reddot Buy Now
line

Please select the items you would like to purchase then click "Add to Cart"
Products:

ESMH Motorized Horizontal Test Stand - Model






Accessories:
Accessories for Test Stands:





  • Manufactured by: Mark-10
