ESL-100 LED Stroboscope

Price: $595.00
LED Stroboscope
120,000 fpm/rpm
10 hours of continuous use at 6,000 fpm/rpm

ESL-100 LED Stroboscopes


Measuring Range: 6 - 120,000 FPM/RPM

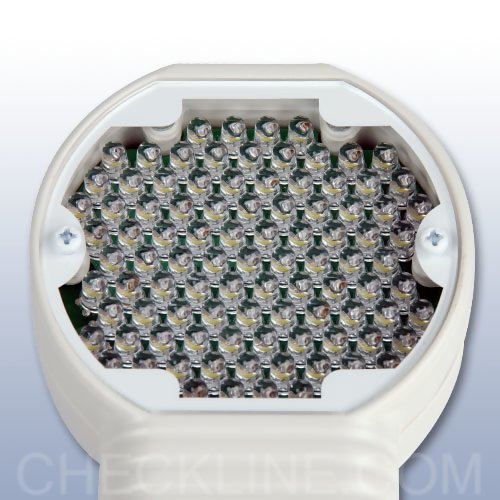

The brightest, fully featured LED strobe in a trim, efficient design. The ESL-20 series LED stroboscope incorporates 96 separate high-powered LEDs designed to measure the speed of rotating or cycling linear motion objects without contact or reflective tape, as well as freeze motion visually.

Using a rugged aluminum housing and the latest technology, it’s compact size, NiMH rechargeable battery and lifetime LED lights make it a perfect choice for use anywhere on the factory floor. The ESL-20 is ideal for speed, motion and vibration analysis, such as rotating shafts, fans, cams, etc

line
reddot Features
line
bluedot Store up to 19 flash rates in memory for records or quick retests (Restarts at the last flash rate)

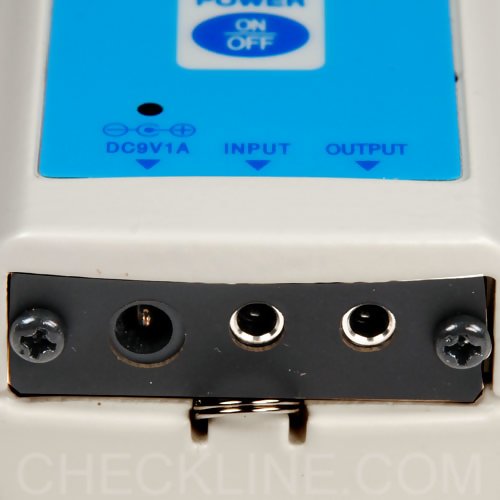

bluedot Includes an external trigger input for flash control via an external sensor or controller as well as a trigger output
bluedot Power-SAVE feature automatically turns off the LEDs if no user-changes are detected on the keypad (can be disabled if desired)
bluedot Operates from internal NiMH Battery or via external AC-Adapter (provided)

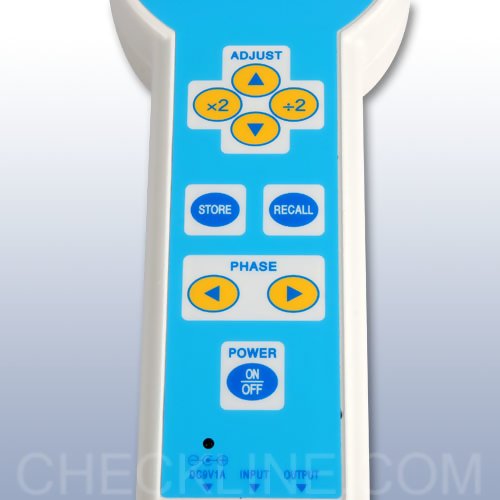

bluedot Push button operation with x2 and ÷2 buttons for easy and precise adjustment along with phase shift
bluedot Battery runtime of approx. 10 hours on a single charge. Supplied with an automatic charging system that prevents overcharging and damaging the battery
bluedot NIST-Traceable Calibration Certificate provided
bluedot 2 year warranty

line

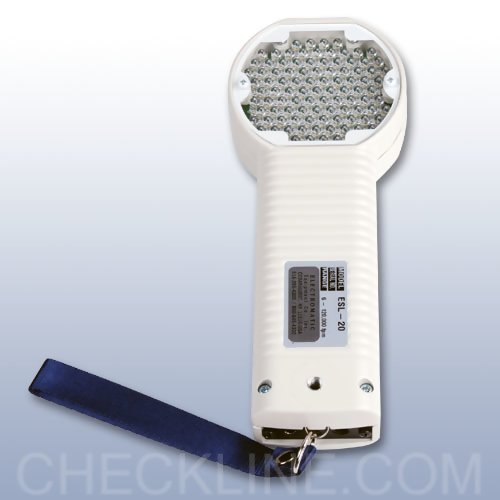

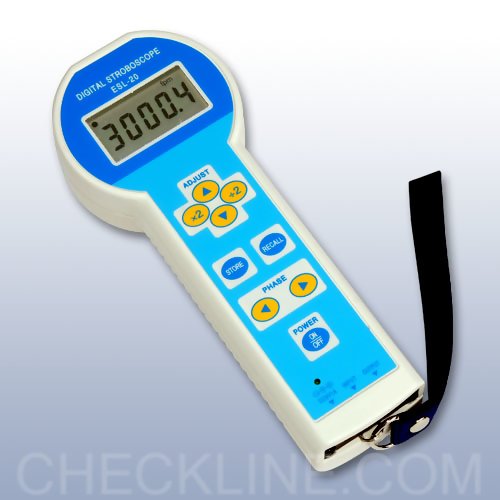

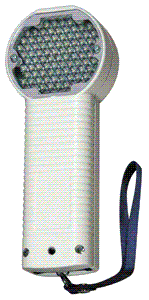

reddot Photo Gallery - click any photo to enlarge
line




line

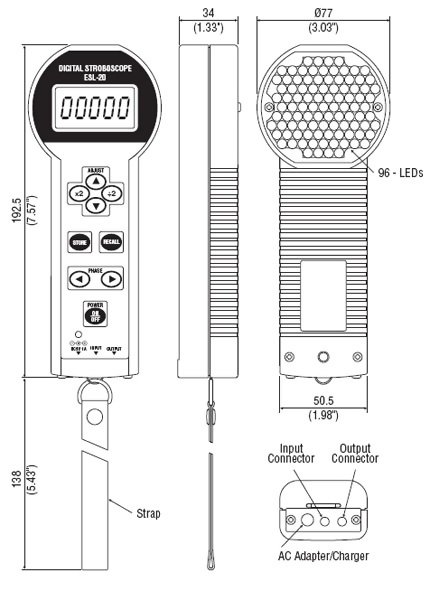

reddot Dimensions
line dimensions

line
reddot Complete Kit
line

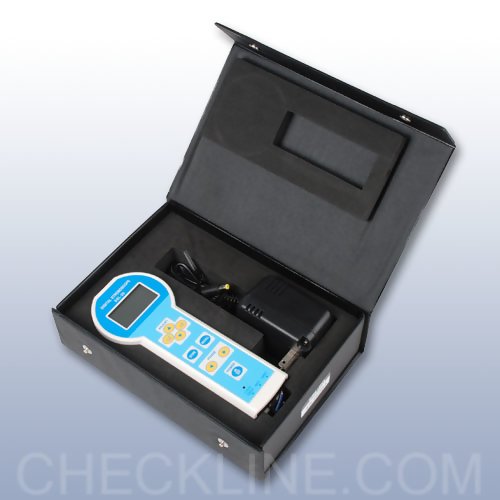

Supplied in foam-fitted carrying case with LED Stroboscope, AC-Adapter/Charger, instruction manual and NIST-Traceable Calibration Certificate.
complete kit

line
reddot Specifications
line
Light Source96 LED Array, never needs replacement
Measuring Range6.0 - 120,000 fpm/rpm
Accuracy±0.007%, ±1 LSD
Resolution±0.1 fpm/rpm (6.0 to 9999.9 fpm/rpm)
±1 fpm/rpm (10000 to 120000 fpm/rpm)
Display12mm high, 5digit LCD
PowerNiMH Rechargeable battery
Battery Life10 hours (@ 6,000 rpm when fully charged)
Charge Time6 Hours with overcharge protection
Operating Temp32° to 113° F (0 to 45° C)
Weight1.2 lb/540g
Housing MaterialAluminum
Tripod Mount1/4-20 UNC on backside
Phase Shift0-359° in 1° increments
Flashrate AdjustCOARSE: press "x2" or "÷2"
FINE: press "v" or "^"
Synchronous OutputNPN Open collector 30V, 10mA max., 100 µs pulse width
Synchronous InputLow level: 0~0.8VDC, High level: 2.5-30VDC, or use with NPN open colector output, 50 µs minimum pulse width, negative edge trigger
Warranty2 years

line
reddot Download
line

manual PDF Dimensions  Click here to Download

news PDF Datasheet  Click Here to Download

line
reddot Buy Now
line


Please select the items you would like to purchase then click "Add to Cart"
Products:

ESL-20 LED Stroboscope - Model





  • Manufactured by: Hoto
