ES20 Mechanical Force Test Stand

Price: $585.00
Manual Hand Wheel Operated Test Stand
100lb Capacity
9" Maximum Travel

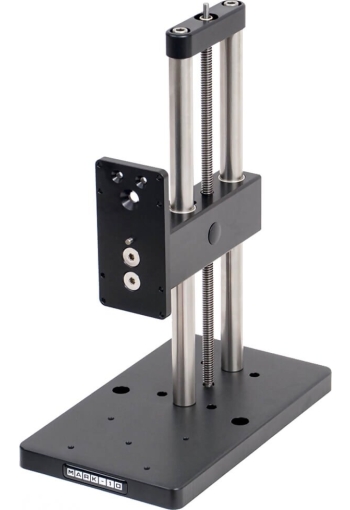

ES20 Mechanical Test Stand

The ES20 manual hand wheel test stand is a compact solution for compression and tensile testing of small samples. The precision hand wheel allows fine control with greater consistency in testing results. An optional dial indicator kit displays up to 1" of displacement. Use the ES20 with our force gauges and grips to create complete testing systems.

*Force Gauge & Distance Meter are Not Included


line
reddot Features
line
bluedot Mounting holes for bench mounting
bluedot Optional 1" [25.4mm] dial indicator travel kit

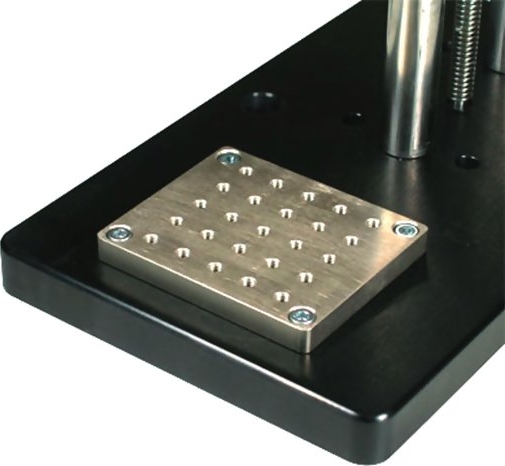

bluedot Large baseplate with 5 #10-32 UNF holes for fixture mounting

line
reddot Dimensions
line dimensions

line
reddot Related Products
line

MG
Economical Digital Force Gauge - Push Pull Gauge		related

bluedot User-selected units of Pounds, Kilograms or Newtons

bluedot 3 Year Warranty

___________________________________________


BG
Digital Force Gauge		related

bluedot RS-232, Mitutoyo and analog outputs

bluedot Selectable units of measurement

___________________________________________

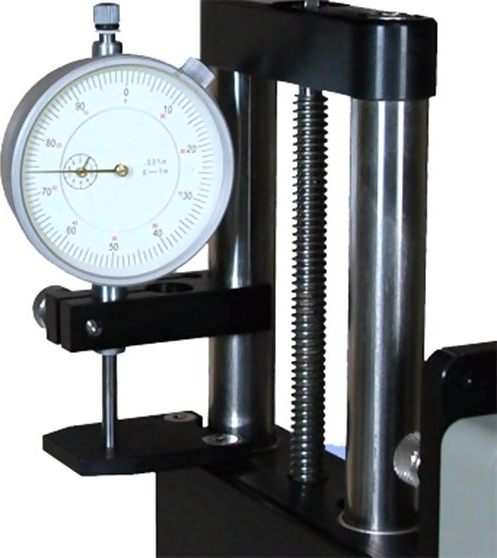

ES001
Dial Indicator / Distance Meter		related

bluedot Displays up to 1" of displacement

bluedot Resolution of 0.001"

___________________________________________

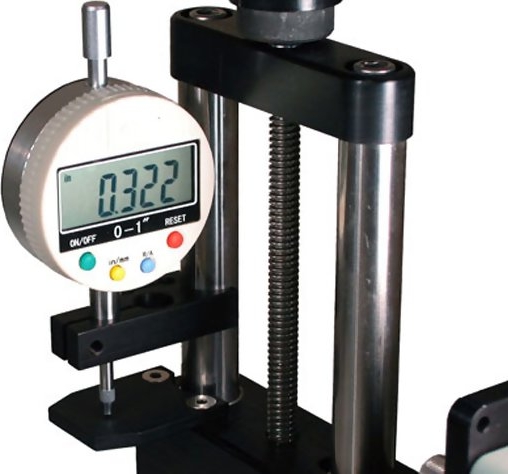

ES002
Digital Indictator / Distance Meter		related

bluedot Displays up to 1" (25.4mm) of displacement

bluedot Resolution of 0.0005" (0.01 mm)


line
reddot Specifications
line
Capacity100 lb (45 kg)
Stroke9" (229mm)
Travel Rate0.06" (1.5mm) per revolution
DimensionsRefer to dimensions above
Weight10 lb (4.5kg)
Compatible GaugesBG, MG
Warranty3 years

line
reddot Buy Now
line


Please select the items you would like to purchase then click "Add to Cart"
Products:

ES20 Mechanical Test Stand - Model




Accessories:
Accessories for Test Stands:




  • Manufactured by: Mark-10
