EDM Tension Meter


Call for Price

For wire EDM Machines
Special versions for specific EDM machines are available

Wire EDM Tension Meter


Manufactures of wire-EDM machines recommend checking the erosion wire tension once a week. Depending on the machine type as well as the wire material and diameter, the measured tension should lie between 50 and 3000 g.

The correct erosion wire tension reduces wire oscillation and guarantees a pinpoint accuracy of your machines. Always check the tension in calibration mode on the moving wire. Make sure the generator is switched off for the tension check.

line
reddot Features
line
bluedot Easy-to-read analog scale
bluedot Simple handling
bluedot Special versions for specific EDM machines are available
bluedot Measuring range 2000 g, 3000 g or higher
bluedot Calibration in cN is available

line

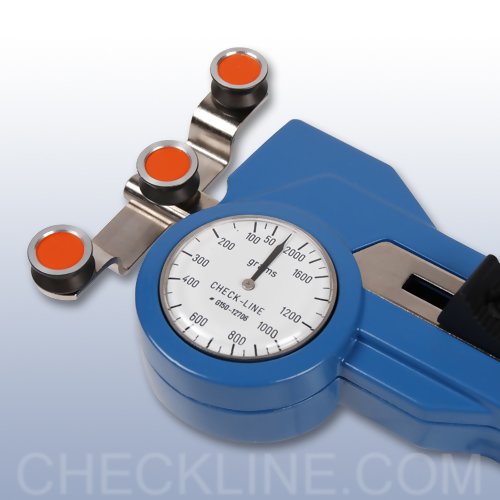

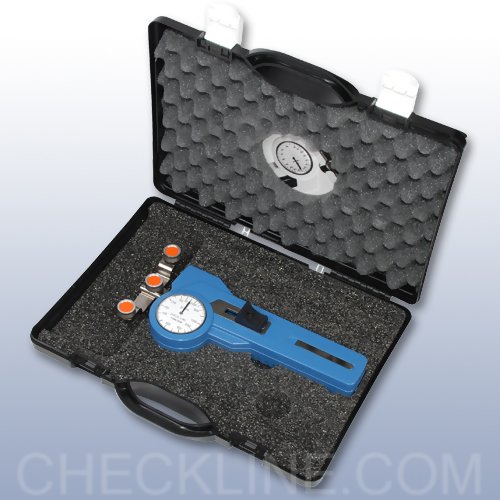

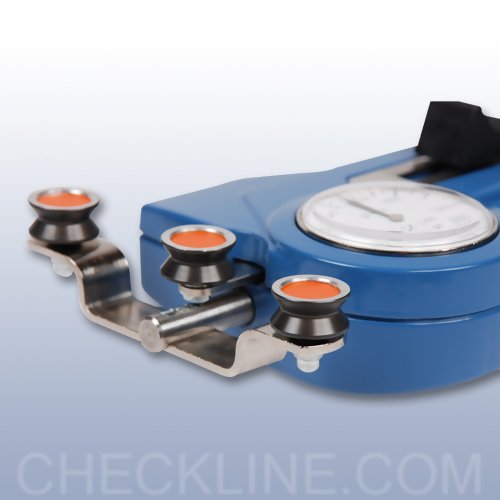

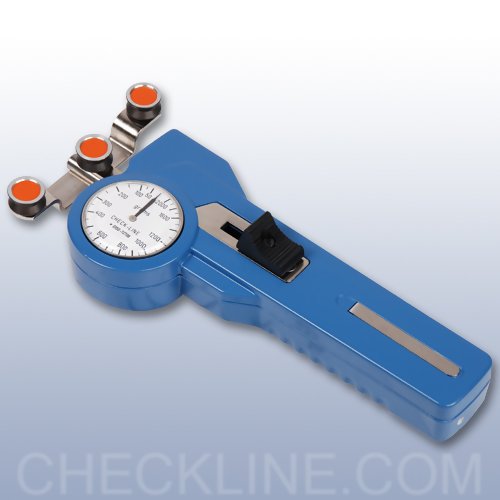

reddot Photo Gallery - click any photo to enlarge
line




line
reddot Tension Ranges
line
ModelRangeRoller distance c:c mm
DX2-2000-EDM50 - 2000 cN75
DX2-3000-EDM100 - 3000 cN75

For meter calibrated in Grams add "-G" to part number, ie: DX2-2000-EDM-G

line
reddot Dimensions
line dimensions

line
reddot Dial Faces
line
DX2-EDM Sample Dial Faces

line
reddot Specifications
line
Accuracy± 1% Full scale or ± 1 scale graduation mark
RollersMaterial : Hardcoated aluminum Diameter: 12 mm
Scale Diameter41 mm
Temperature Range8 - 45 °C
Humidity Maximum85% RH
Housing MaterialAluminum die casting
Dimensions215 mm x 90 mm x 44 mm (L x W x H)
Weight(net/gross) approx. 500 g / 1000 g

line
reddot Download
line

manual PDF Instruction Manual  Click here to Download

news PDF Data Sheet  Click here to Download
